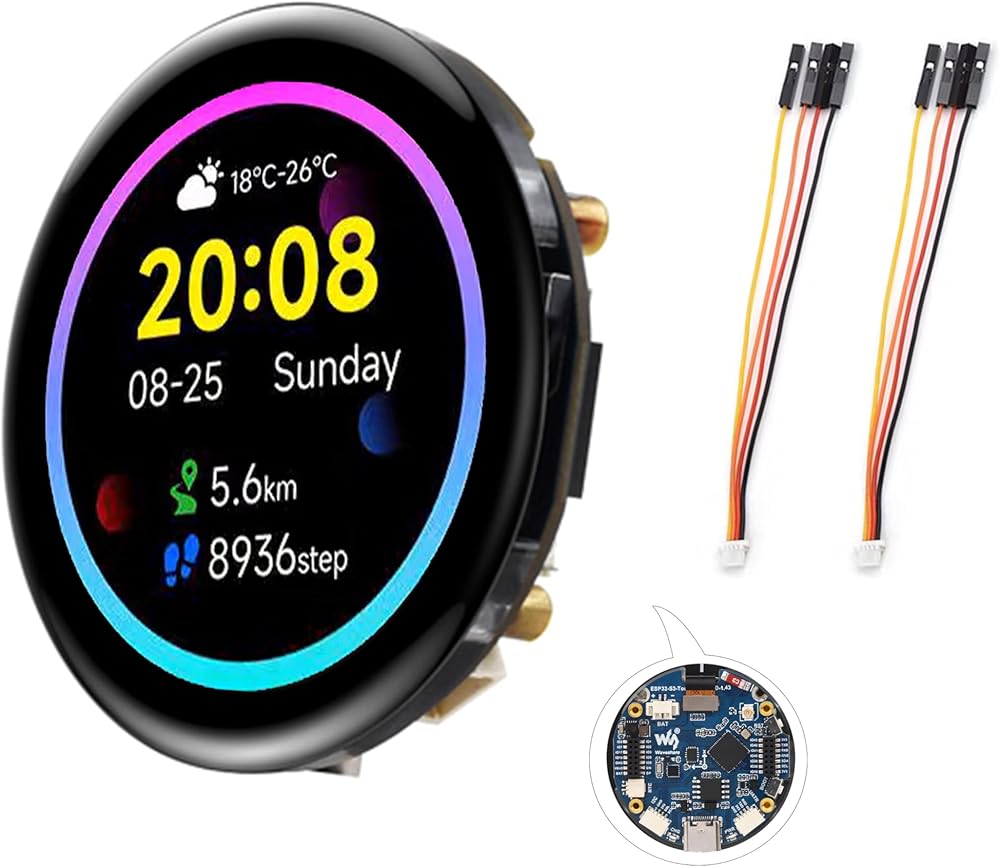

ESP32-S3 1.43inch AMOLED Touch Display Development Board, 466x466 QSPI Interface AMOLED Round LCD, Onboard Accelerometer and Gyroscope Sensor R T C Chip, ESP32 with Display, Multiple Interfaces
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

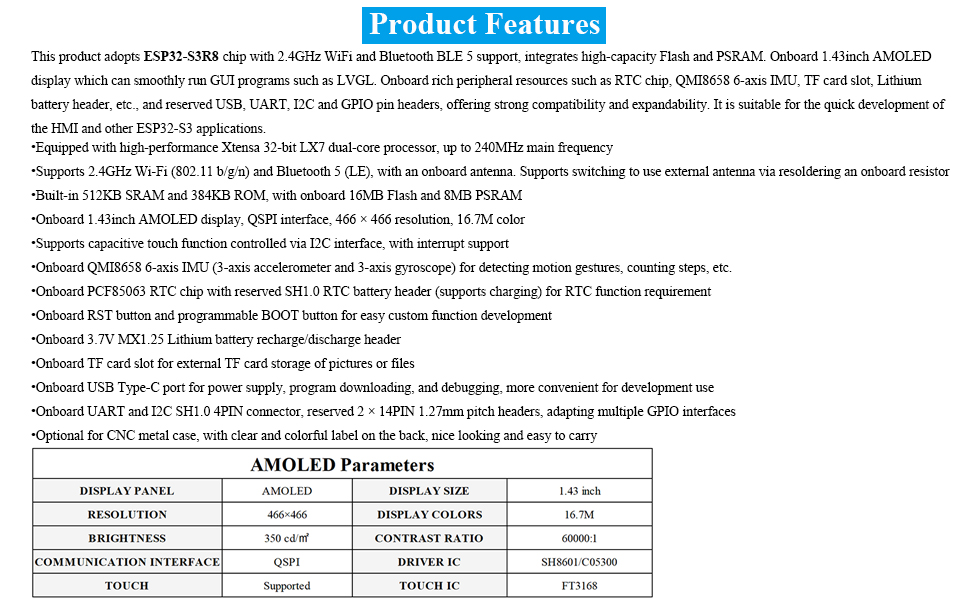

ESP32-S3 1.43inch AMOLED Display Development Board, adopts ESP32-S3R8 chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. The AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image ( This is Without Case Version).

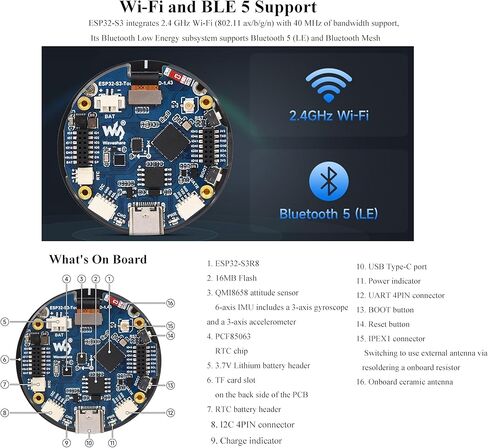

Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue too th 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB P SRAM.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R T C chip with reserved SH1.0 R T C ba tte-ry header (supports charging) for R T C function requirement.
Onboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 Lith ium batte-ry recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files.

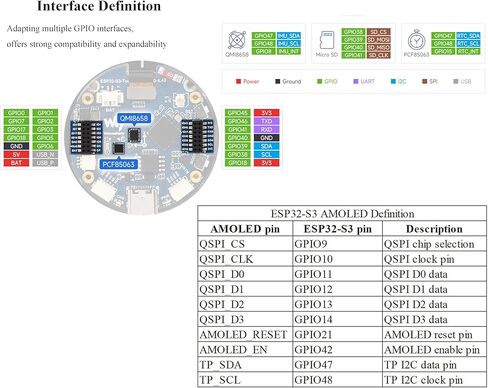

Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.
Comes with Online Development Resources /User Manual, please follow there: bit.ly/4gbRgBa
