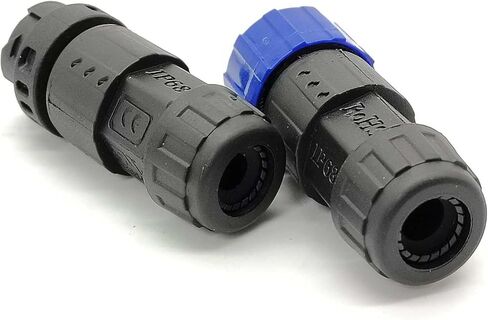

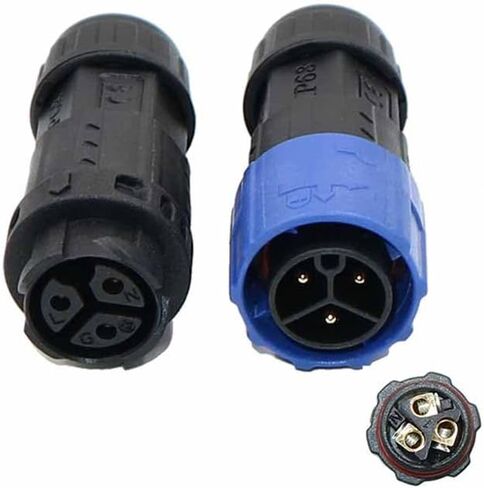

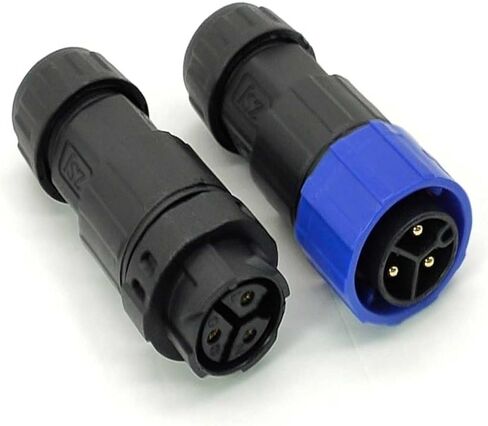

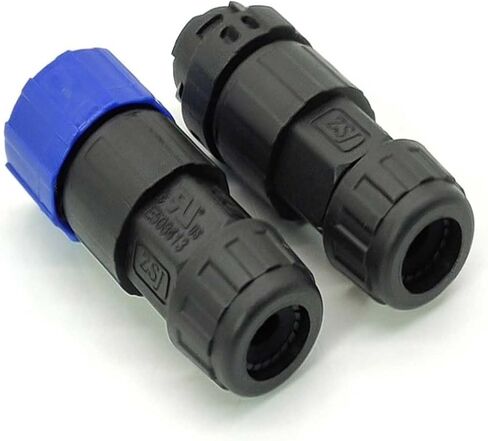

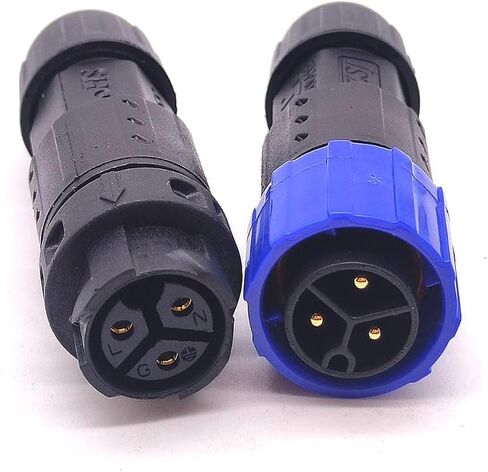

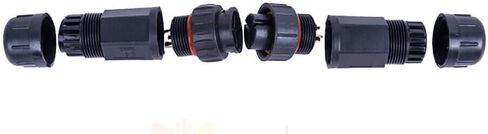

M19 Waterproof Connector Male and Female Butt 3 Pin Screw Type for Cable Plant Light Power Quick Plug Connector Bayonet

KWD 7
Brand
GXMRHWY
Weight
101 g
– 1 +

Special Features

  • M19 Waterproof Connector ，3Pin，Male and Female (one Pair) ，Thread，Screw Type，Straight，IP68
  • Safe thread insertion and extraction system is more firm and reliable;
  • Waterproof connection, assembly, and docking (IP68)；Solid pin core ；High-density installation saves space;
  • The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
  • Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Description

Mechanical Characteristics

Contact material: Copper-plated golden
Cable Wiring Method: Screw Type
Withstand voltage: 1500V
Protection grade: IP68
Terminal material: copper, gold plated
Contact resistance: Contact plastic: nylon
Waterproof apron: Silicone
Test temperature: - 40 ℃ - + 105 ℃
Flame retardant grade: UL94V-0

Rated Current and Voltage
2 Pin: 500V, 20A
3 Pin: 500V, 20A
4 Pin: 500V, 20A
5 Pin: 300V, 15A
6 Pin: 110V, 10A
7 Pin: 110V, 10A
8 Pin: 110V, 10A
9 Pin: 60V, 5A
10 Pin: 60V, 5A
11 Pin: 60V, 5A
12 Pin: 60V, 5A
