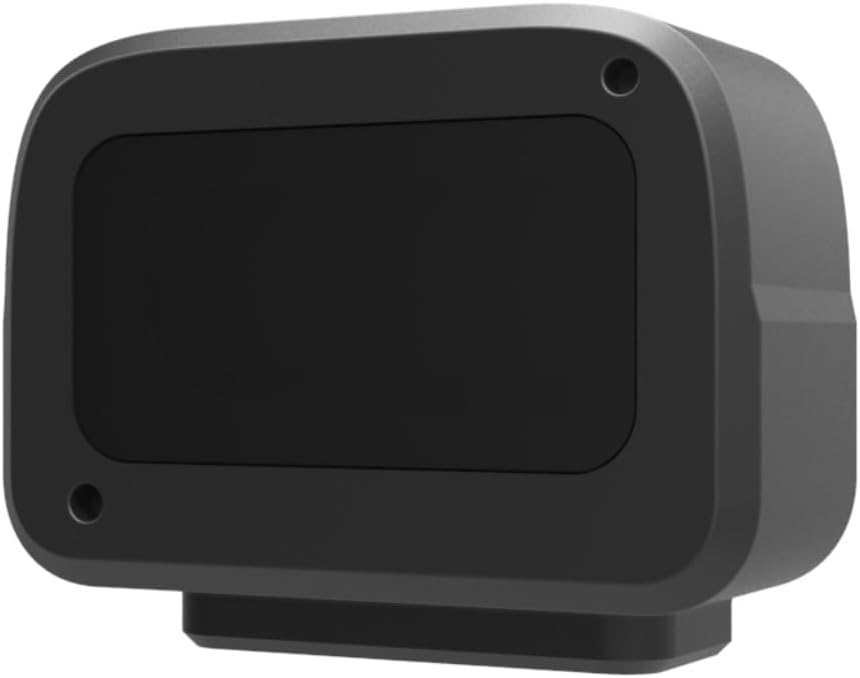

youyeetoo TF-NOVA Lidar Sensor - Compact Size Linear Spot Laser Radar Range 0.1-7M Outdoor Indoor Stable Detection Supports UART, IIC, I/O

KWD 20.500
Brand
youyeetoo
Weight
202 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Product Description] TF-NOVA is a compact line laser radar developed by Benewake, ideal for applications like obstacle detection and presence triggers. It offers customizable parameters to meet various scenario requirements.
  • [Shopping List] 1X TF-NOVA
  • [Compact Size]The device measures 26.5x21.05x12mm³ and has a volume of about 7cm³, making it smaller than an AA battery. This compact design offers great convenience and flexibility for system integration.
  • [Multiple Interfaces]Supports standalone and networked operations, and can be configured for I/O output mode to reduce data processing workload. It also supports UART and IIC interfaces for easy integration with various systems.
  • [Robust Performance] Offers high accuracy and strong resistance to interference, ensuring reliable detection in industrial applications.
  • [Line Pattern Laser Beam]Features a 14°×1° field of view, capable of detecting an area of 25×1.7 cm at a distance of 1 meter, providing precise area detection similar to two laid flat chopsticks.
  • [Stable Detection in Various Environments]It can reliably detect a 5 cm target with 10% reflectivity at a range of 2 meters, both in bright sunlight and low light conditions. This makes it suitable for both indoor and outdoor use.

Description

NOTICE

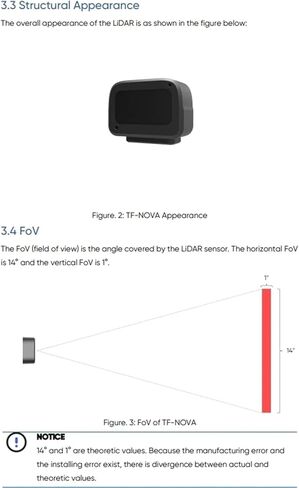

14° and 1° are theoretic values. Because the manufacturing error and the installing error exist, there is divergence between actual and theoretic values.
The measurement range is measured when all light spots are placed on the target board, at 25 ℃. Changes in conditions may cause variations in the measurement results.
The accuracy is measured under the condition of 25 ℃, Oklux, and 10% reflectance background board, and changes in conditions may cause changes in the measurement results.
FeaturesCompact structure
Lightweight
Low-power consumption
Cost-effective

ApplicationsAssisted Focusing
Elevator projection
Intrusion detection
Level measurement

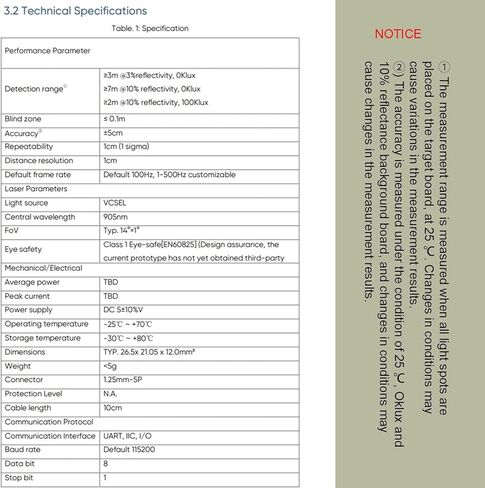

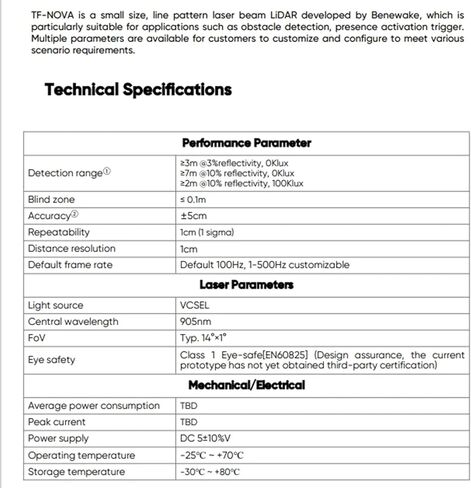

Performance Parameters

Detection Range ≥3m @ 3% reflectivity, 0Klux
≥7m @ 10% reflectivity, 0Klux
≥2m @ 10% reflectivity, 100Klux
Blind Zone ≤ 0.1m
Accuracy ±3cm @ 0.1-4m
Repeatability 1cm (1 sigma)
Distance Resolution 1cm
Default Frame Rate Default 100Hz, 1-500Hz customizable
Laser Parameters

Light Source VCSEL
Central Wavelength 905nm
Field of View (FoV) Typ. 14° × 1°

Communication Protocol

Communication Interface UART, IIC, I/O
Baud Rate Default 115200
Data Bit: 8
Stop Bit: 1
