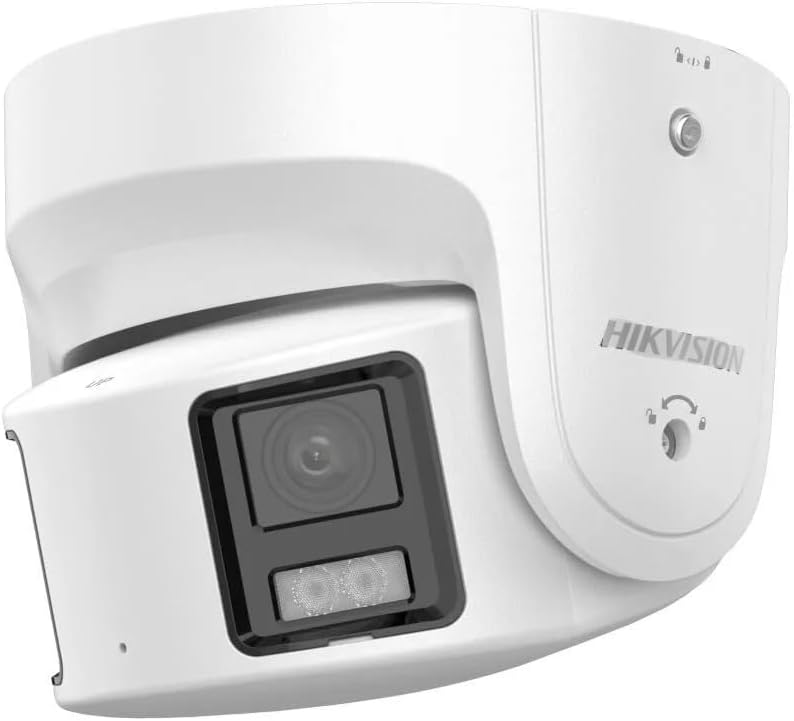

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
DORI: D: 89 m, O: 35 m, R: 17 m, I: 8 m

Illuminator
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes

Video
Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160),30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

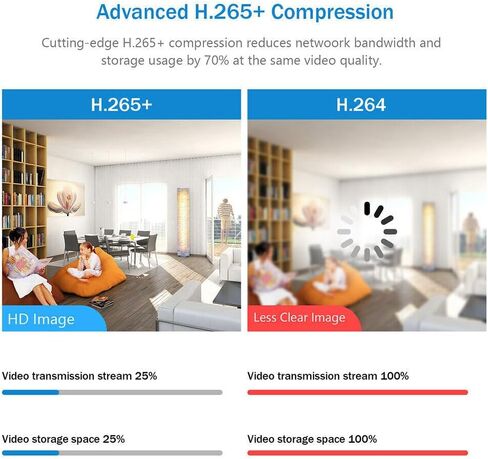

Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Environment Noise Filtering: Yes

Image Enhancement: BLC,HLC,3D DNR
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Face Capture: Yes

General
Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W
Material: Cover: Metal, main body: Metal
Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Weight: Approx. 770 g (1.7 lb.)
General Function: Heartbeat,mirror,password reset via email,pixel counter,anti-banding
