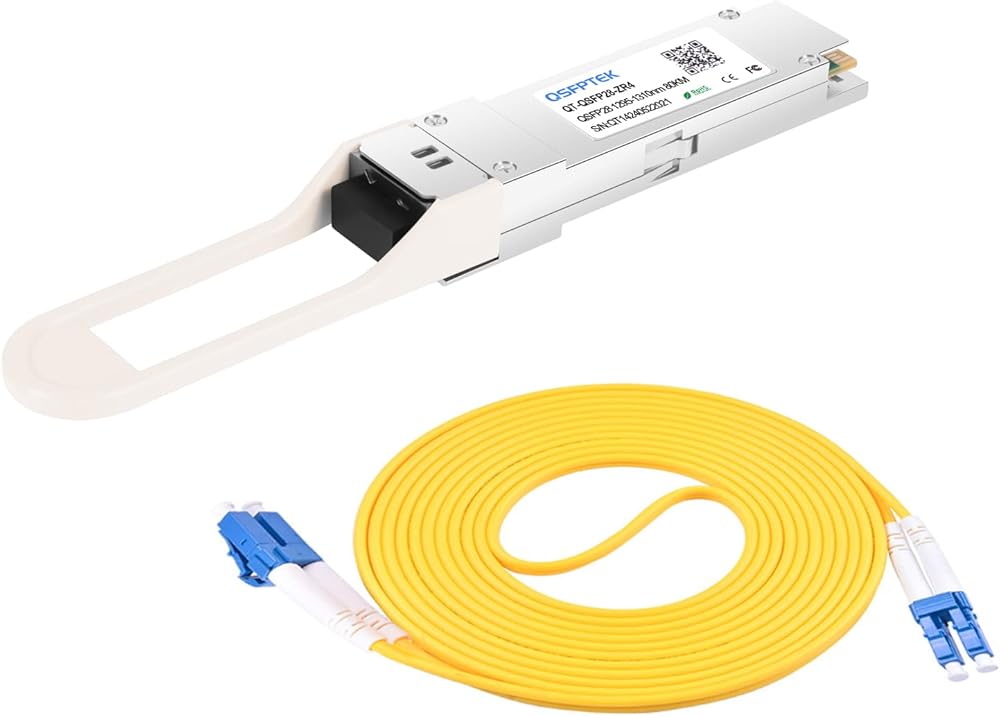

100GBASE-ZR4 QSFP28 Module, 80km 1310nm Optical Transceiver Compatible Cisco QSFP-100G-ZR4-S and LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 3m

KWD 713
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Widely Compatibility: Fully Compatible With 200+ Vendors. 4 independent full-duplex channels, Up to 28Gb/s data rate per channel. QSFP28 MSA compliant, Compliant to IEEE 802.3bm
  • LC duplex fiber optic cable application, Single mode fiber duplex OS2 cable is designed for regional, long-haul, metro, access, mobile, and fiber to the home applications.
  • Easy to install, lightweight duplex small form factor LC to LC cable with OFNR PVC 2.0mm zipcord cable jacket, an ITU-T Recommendation G.652D compliant optical fiber with Corning's enhanced low-loss and bend fiber technologies.
  • Feature: 100GBASE-ZR4 module up to 80km OM4 SMF transmission; Operating case temperature: 0 to 70℃; Single 3.3V power supply; Maximum power consumption 2.5W; LC Duplex optical connector

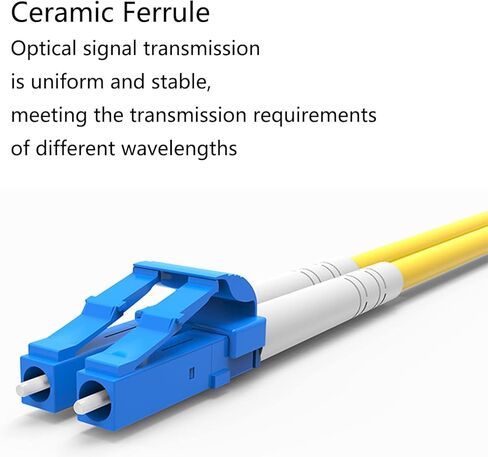

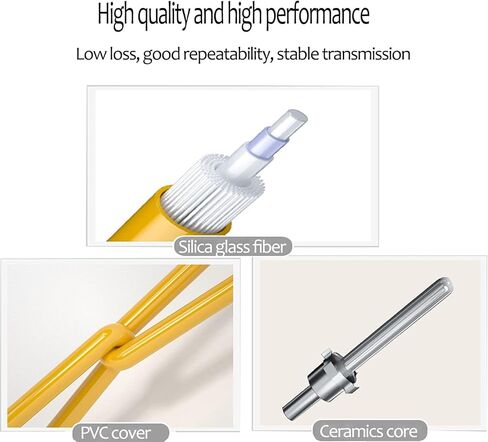

  • OS2 cable features with 9/125μm,insertion loss≤0.3dB,return loss ≥50dB. 100% inspected and tested for insertion loss,durable construction. High return loss, low insertion loss, low attenuation.

Description

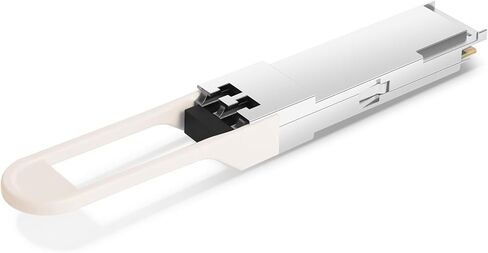

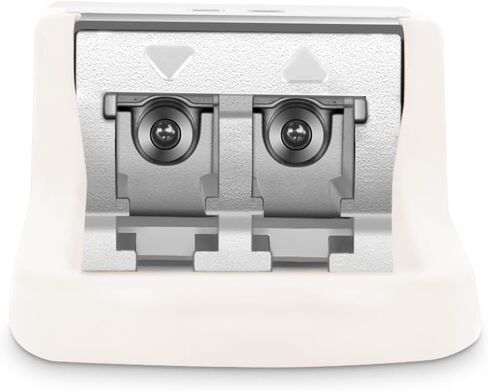

The optical transceiver module compatible Cisco QSFP-100G-ZR4-S , it is designed with duplex LC connectors, reaching a link up to 80km over single-mode fiber(OS2).

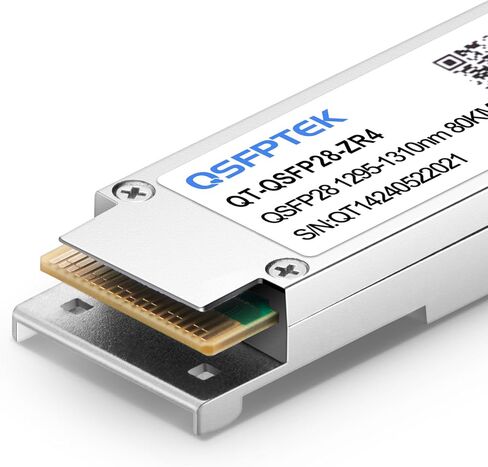

QSFPTEK manufactured 100G ZR4 QSFP28 80km transceiver module is compliant with QSFP28 MSA Compliant standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring.
With these features, this 100G QSFP28 ZR4 transceiver is widely applied in 100G telecom connections, DCI, metro network, long-haul, and high-performance computing networks application.
