10G Mini Media Coverter, 10 Gigabit Fiber to 10Gb Copper UTP Media Converter with 10Gb SFP+ RJ45 Transceiver, 10Gbase-T SFP+ Ethernet Module

KWD 64
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 10Gb SFP+ RJ45 Transceiver: This 10gb sfp+ module support 10Gb data rate on SFP+ port, also auto negotiate 10Gbase-T / 5Gbase-T /2.5Gbase-T /1000Gbase-T on RJ45 port.
  • Supporting Auto-MDI/MDIX..10G base-T RJ-45 UTP port will autoadapt (autosense) to 1000Base-T, 2.5G Base-T, 5G Base-T and 10G Base-T connection at user side, but fiber port – slot accepts only 10G SFP+ (10 Gigabit) SFP+ transceivers only.
  • 10G Fiber to RJ45 Connector: 10Gb Ethernet Copper Module supports 10 Gigabit up to 30m over Cat6a/Cat7, up to 100m over CAT5/5e at lower speeds. Low power consumption ≤2.5w.
  • Convert & Extend: copper distance of your high speed 10gbps network connect far beyond – your SFP+ fiber transceiver distance is the only limit now.

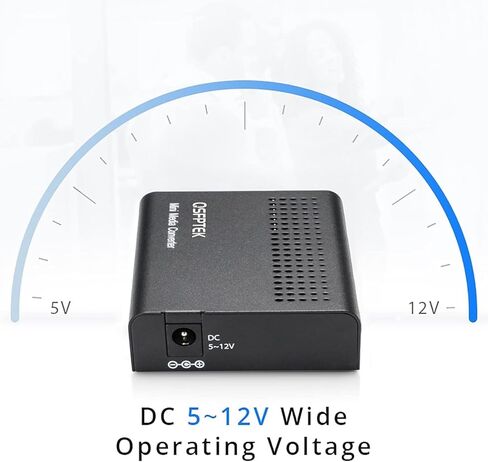

  • Mini Unmanaged 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10Gigabit Ethernet Media Converter, AC 100V~240V or DC 5~12V optional

Description

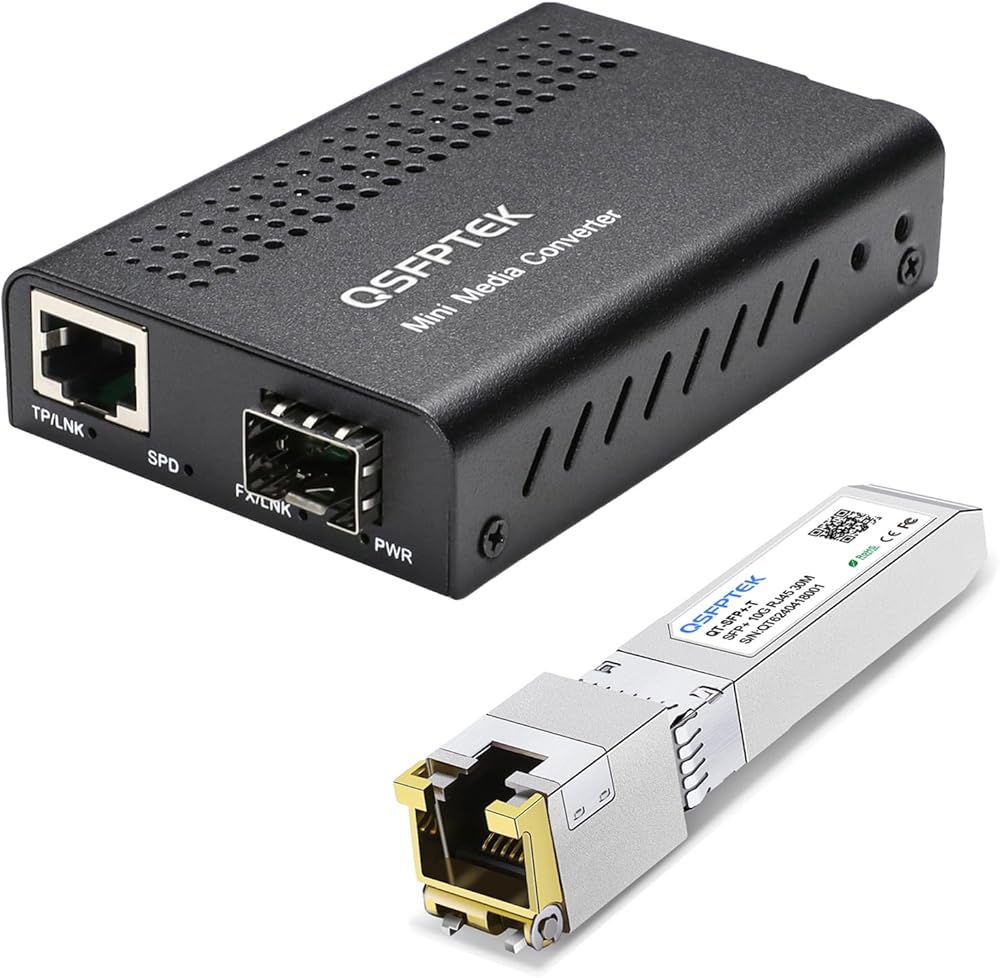

1x 10GBase-T to 1x 10GBase-X 1RJ45 and 1SFP+ Slots 10Gigabit Fiber Media Converter(10G, RJ45 to SFP+, AC 100V~240V or DC 5~12V)
Adpoted Optical - Electrical - Optical conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration.
On the existing network infrastructure, it can quickly improve the communication capacity in a cost-effective way, expand the bandwidth, while using ultra low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

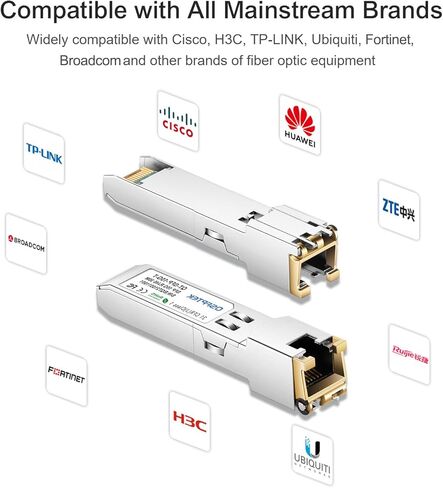

The media converters are compatible with a wide range of SFP/SFP+ transceivers, such as 1000BASE SFP, 10G BIDI SFP, 10G CWDM SFP, 10G DWDM SFP+ transceiver modules, etc.

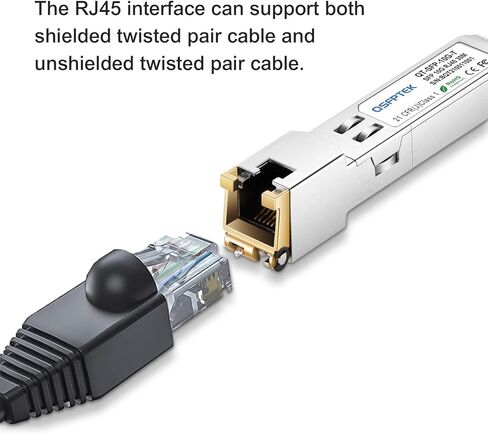

The Cisco SFP-10G-T-S is a copper module equipped with RJ45 connectors that is compatible with Cat6a/Cat7 Ethernet copper cables and transmits 30m at 10GBASE-T data rates.
In addition, the 10 Gbps SFP RJ45 module is backward compatible with 1GBASE-T, and intermediate rate 2.5GBASE-T, 5GBASE-T, providing multi-gigabit Ethernet deployment.
10GBASE-T SFP+ module is compliant with IEEE 802.3an, IEEE 802.3az, and SFP+ MSA. The 10G RJ45 module uses the electrical signal to transmit data, allowing an upgrade to 10G by reusing existing copper cabling.
