Introduction

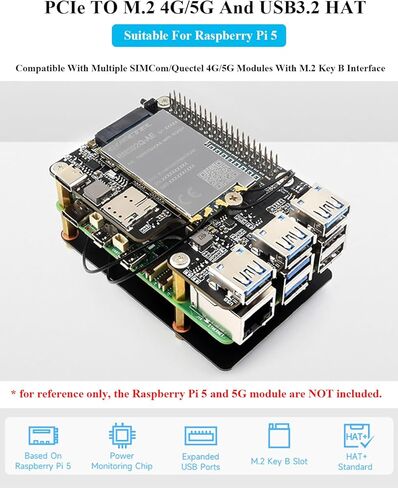

PCIe TO 4G/5G M.2 USB3.2 HAT+ is a PCIe to USB3.2/M.2 adapter board designed for Raspberry Pi 5.

Features
1. Designed for Raspberry Pi 5, HAT+ Standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion.

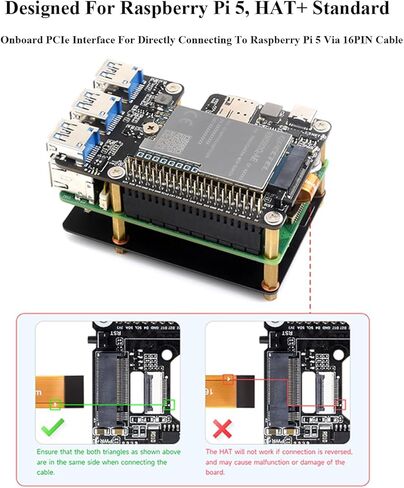

---Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable.

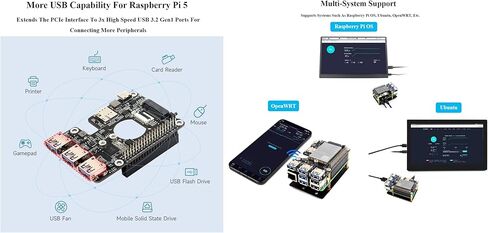

2. Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals.
3. Compatible With Multiple 4G/5G modules with M.2 Key B interface---Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages.
4. Multi-system Support---Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

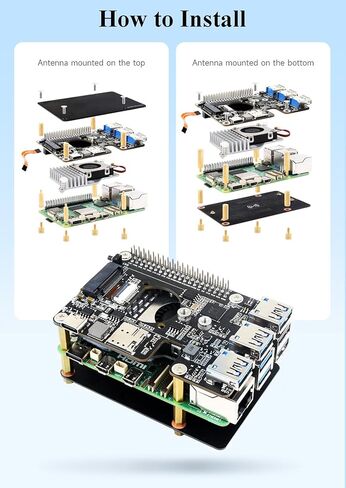

5. Comes with 5G-4IN1-PCB Antenna, Supports top and bottom mounting, easy to install, good communication effect.
6. Onboard power monitoring chip and EEPROM---for real-time monitoring voltage, current and power of module Via I2C.
Supports saving HAT+ ID and product information, compatible with HAT+ standard.
7. Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input.
8. Onboard SIM card slot for NANO-SIM card.
9. Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status.
10. Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation.

Application Scenarios---Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage..

Comes with Online Tutorial and Online Development Resource, Please check: n9.cl/oxjqd

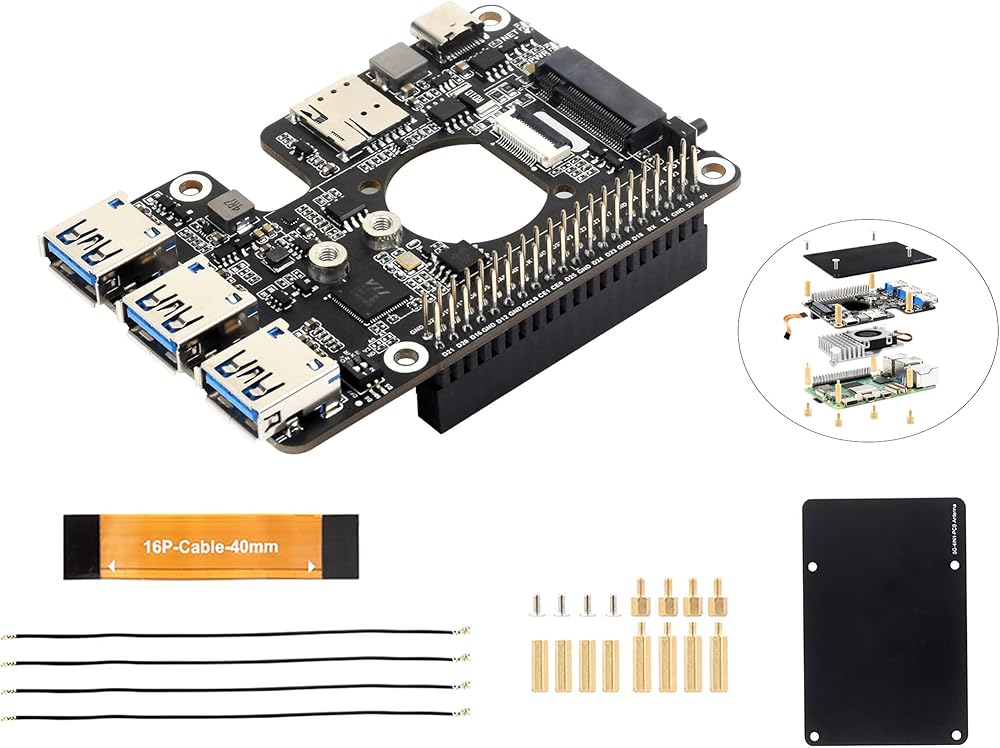

Package Content
PCIe TO 4G/5G M.2 USB3.2 HAT+ x1
5G-4IN1-PCB Antenna x1
16P-Cable-40mm cable x1
IPEX1 to IPEX4 cable ~13cm 4PCS x1
Screws pack x1
