Model ELP-USBGS5MP01-BH120
Sensor 1/2.5” OmniVision OX05B1S (Global Shutter)
Max Resolution (Default) 2592 (H) *1944 (V)
Sensor Size 1/2.5 inch (4:3)
Image Array Area 5737μm x 4312μm
Pixel Size 2.2μm x 2.2μm
Compression Format MJPEG / YUV2 (YUYV)
Resolution & Frame Rate:
2592x1944@50fps MJPEG/2592x1440@60fps MJPEG 2560x1440@60fps MJPEG
2304x1296@60fps MJPEG/2048x1536@50fps MJPEG/1920x1080@60fps MJPEG
1600x1200@50fps MJPEG/1600x900@60fps MJPEG/1280x960@50fps MJPEG
1280x720@60fps MJPEG/1024x768@50fps MJPEG/1024x576@60fps MJPEG
960x720@50fps MJPEG/960x540@60fps MJPEG 800x600@50fps MJPEG
800x450@60fps MJPEG 848x480@60fps MJPEG/640x480@50fps MJPEG 640x360@60fps MJPEG
Surface Mount: Technology SMT
Focus: Fixed Focus
Central Definition: 1000LW/PH (Center)
S/N Ratio: 38dB
Dynamic Range: 72dB
Sensitivity 1.4V/lux-sec@550nm
Min Illumination 0.1 Lux

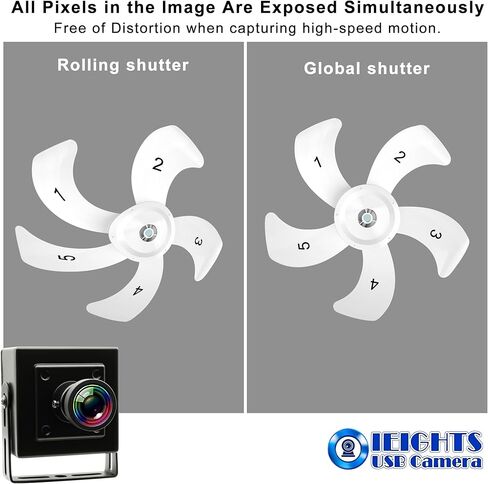

Shutter: Global Shutter
Interface: USB2.0 High Speed
AEC/AWB/AGC Support
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White
balance, Backlight Compensation, Exposure
Lens Parameters: Low Distortion Lens, HFOV: about 120degree
Optional 2.8mm/2.9mm/3.6mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens
(FOV 65~130 degree optional) Fish-eye lens 156 degree /180 degree etc.
LED board power connector: Support 2P-2.0mm socket
Power Supply: USB BUS POWER 4P-2.0mm socket
Operating Voltage: DC 5V Working Current 180mA- 230mA

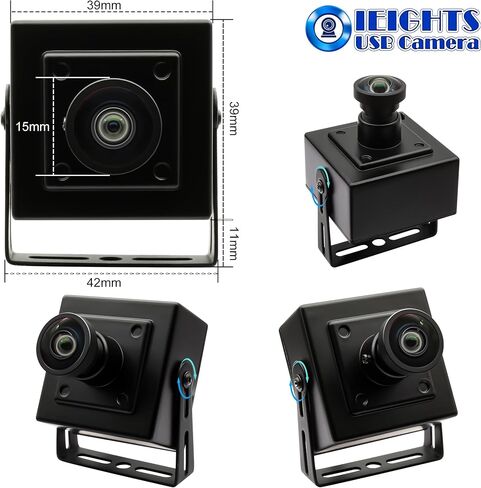

Dimension: 38mm x 38mm
Working Temperature 0°C to 60°C
Storage Temperature -20°C to 80°C
USB Cable: 1M
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later, Android.
