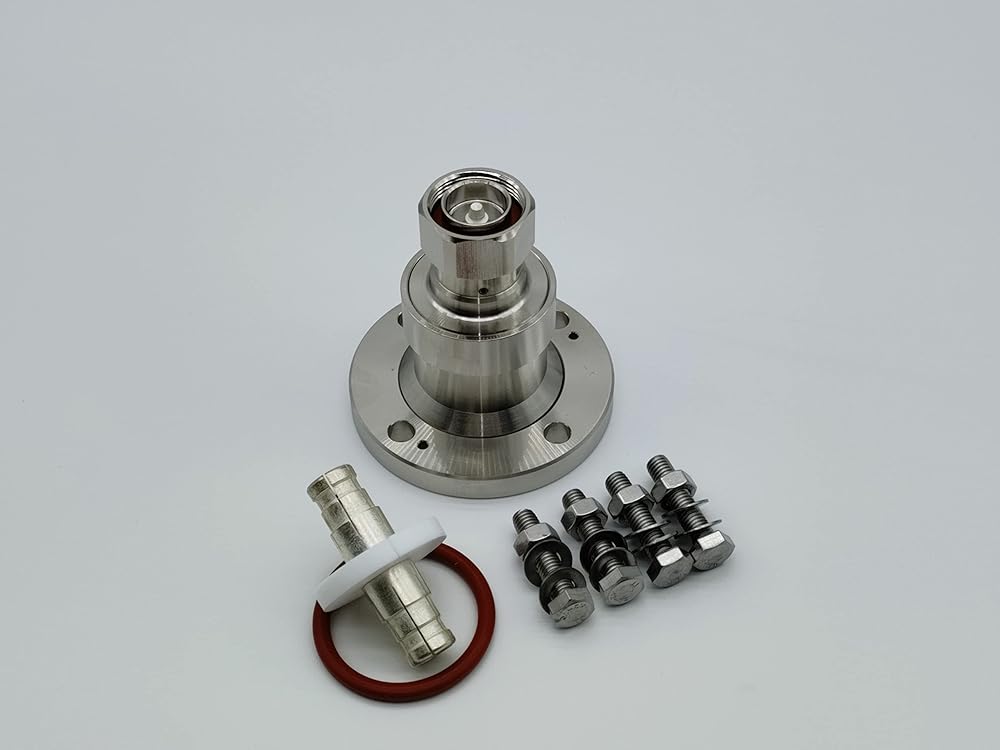

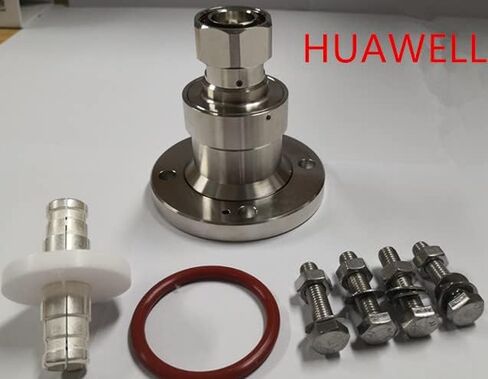

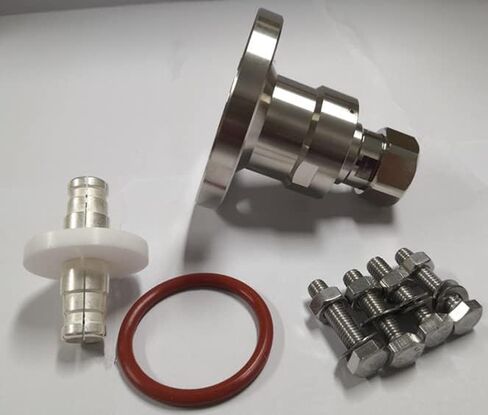

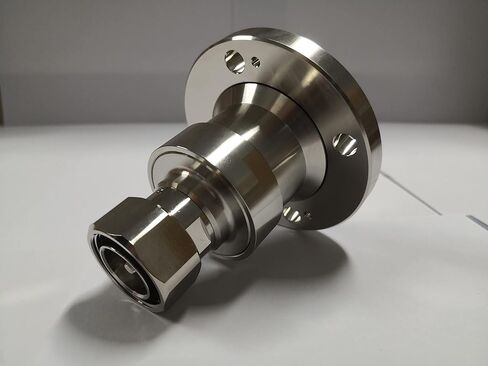

لوحة شفة 1-5/8 EIA إلى DIN 7/16 موصل الذكور RF محول النحاس

KWD 42.500
ماركة
HUAWELL
وزن
1.1 kg
– 1 +

مميزات خاصة

  • Flange Panel 1-5/8 EIA To DIN 7/16 Male Connector RF Adaptor Brass Material standard packing(as customer required)
  • All materials are RoHS approved
  • Characteristic Impedance 50Ω
  • Frequency range 0~6GHz
  • Insulation resistance ≥5000MΩ

وصف

Flange Panel 1-5/8 EIA To Din 7/16 Connector RF Adaptor Brass Material Specifications: 1. All materials are RoHS approved 2.OEM service offered Electrical Characteristic Impedance50Ω Frequency range0~6GHz Dielectric Withstanding Voltage≥4000VRMS,50Hz,at sea level VSWR≤ 1.25 Insulation resistance≥5000MΩ Mechanical Temperature range -40°C~+85°C Durability(matings) >500 cycles Material and plating Piece part Material plating Body Brass Nickel plated Center conductor Brass or Phosphor Bronze Gole or silver plated Crimping suite Copper alloy Nickel plated O-ring sealing 6146 silastic - Insulator PTFE
