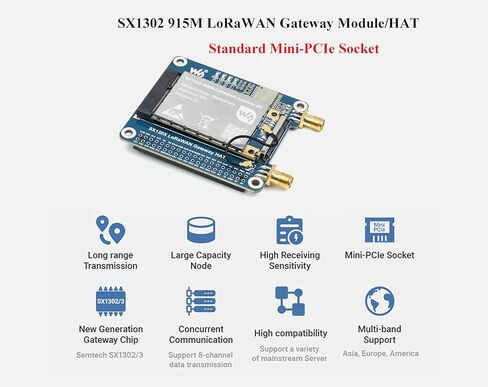

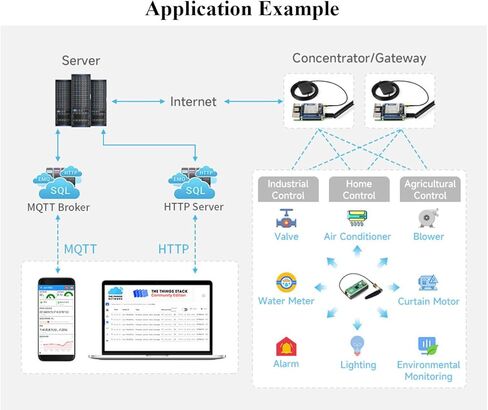

Overview

It is a LoRa Gateway module that incorporates a new-generation SX1302 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. Due to the outstanding performance of SX1302 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

Features

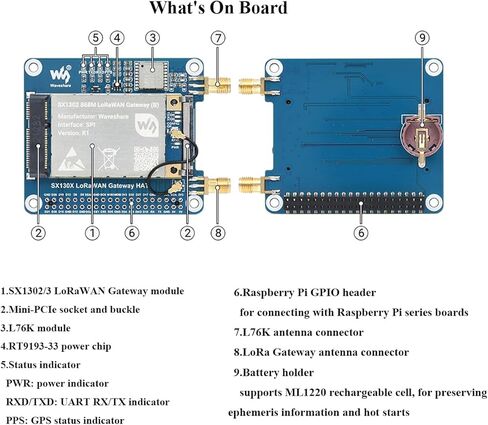

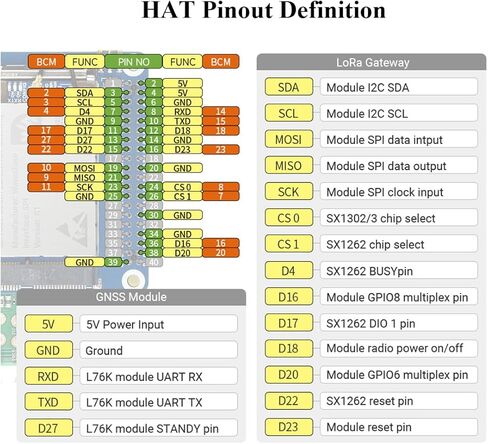

1. Standard Pi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards
2. Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
3.Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip.
4. Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain.

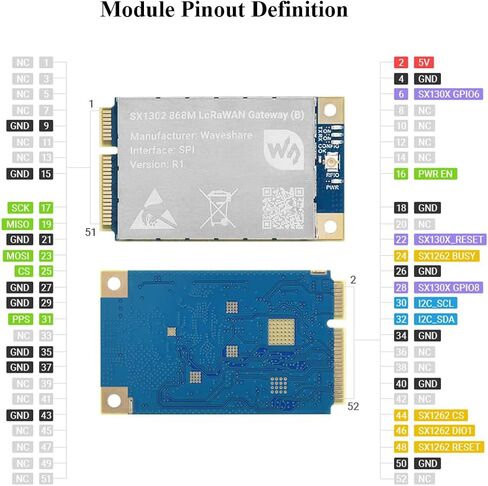

5. 52-pin Mini-PCIe socket for easy integration into various embedded systems. Onboard 4 LED indicators for module operating status.

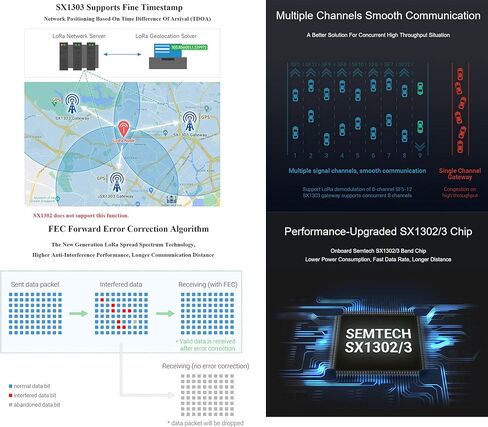

6. Multiple channels smooth communication---a better solution for concurrent high throughput situation
7. FEC Forward Error Correction algorithm---the new generation LoRa spread spectrum technology, higher anti-interference performance, longer communication distance

Provide Online Development Resources /User Manual: bit.ly/48gamna

Specifications

Power supply: 5V
Modulation: LoRa/(G)FSK
Emit power: +26dBm@5V
Receiving sensitivity :
-141dBm@125KHz/SF12 -121dBm@125KHz/SF5

Overall power consumption
emitting: 454mA@5V
receiving: 42mA@5V
sleep: 11mA@5V

Communication bus: SPI, I2C
External connector: Mini-PCIe
Operating temperature: -40~85℃
Dimensions: 50.95 x 30mm

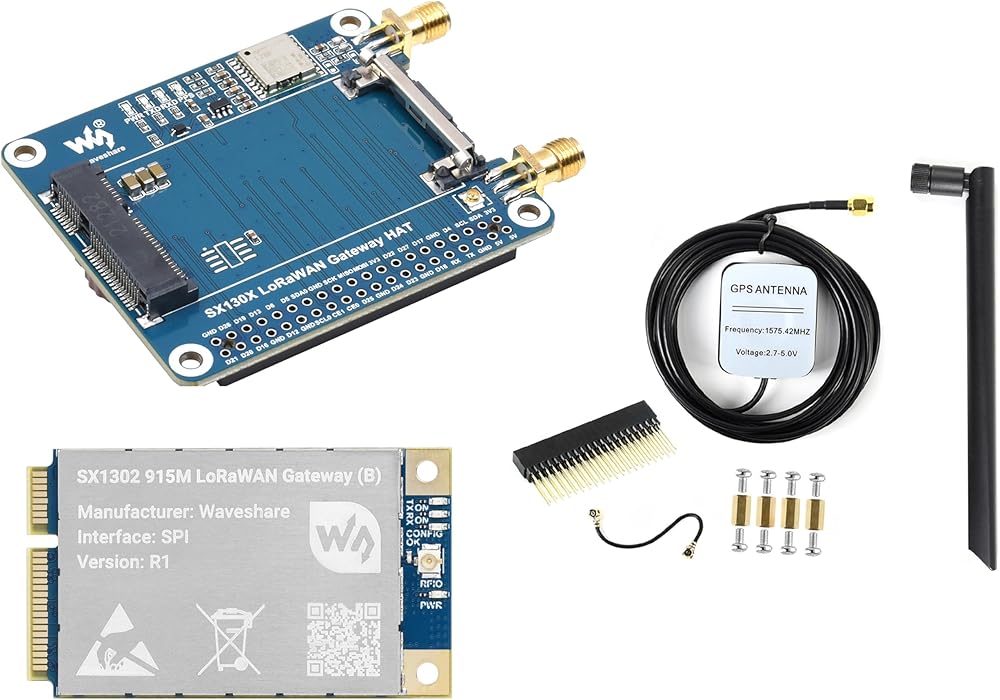

Package Content
SX1302 915M LoRaWAN Gateway HAT x1
SX1302 915M LoRaWAN Gateway (B)
Antenna 868M/915M 5dBi x1
GPS antenna x1
2×20PIN female pinheader x1
Dual IPEX1 wire x1
Screws pack x1
