Special Features

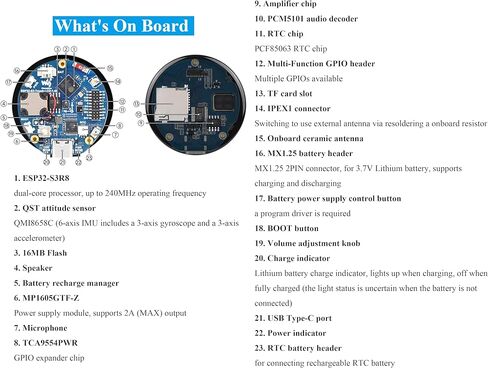

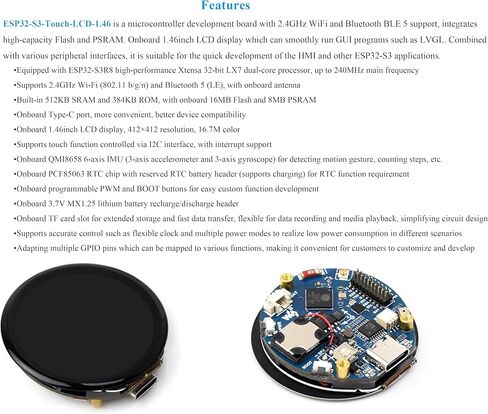

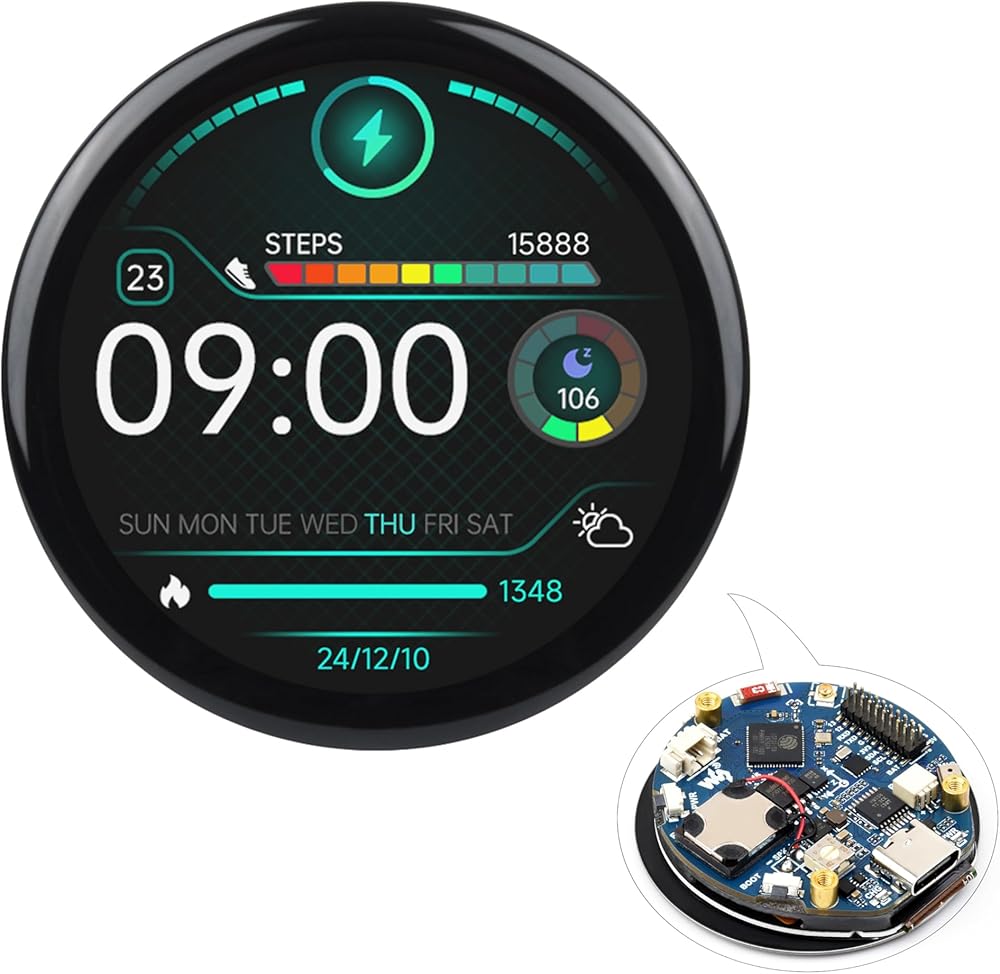

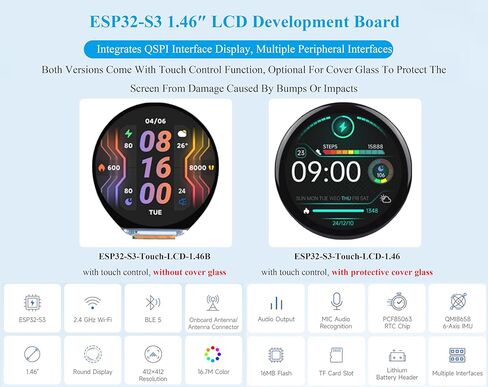

There are two versions of this item, this version is ESP32-S3-Touch-LCD-1.46, with touch control, with protective cover glass. ESP32-S3 1.46inch Round Display Development Board, 412×412 Pixel, Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
Supports 2.4GHz Wi-F--i (802.11 b/g/n) and B LE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 R T C chip with reserved R T C ba-tte-ry header (supports charging) for RTC function requirement.
Onboard programmable PWM and BOOT buttons for easy custom function development. Onboard 3.7V MX1.25 ba-tte-ry recharge/discharge header. Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design.

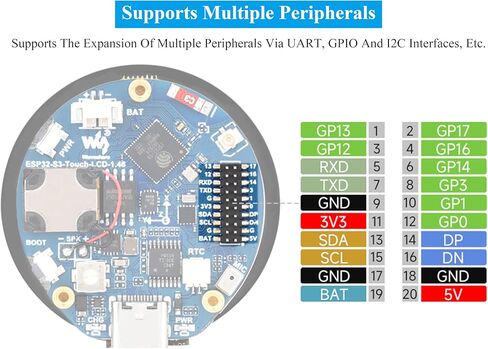

Supports multiple peripherals. Supports the expansion of multiple peripherals via UART, GPIO and I2C interfaces, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop.
Comes with Online Development Resources /User Manual: bit.ly/4fFxnSp
