0.91 white

KWD 4.500
Brand
Haldzemo
Weight
11 g
ColorWhite
Size0.91
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

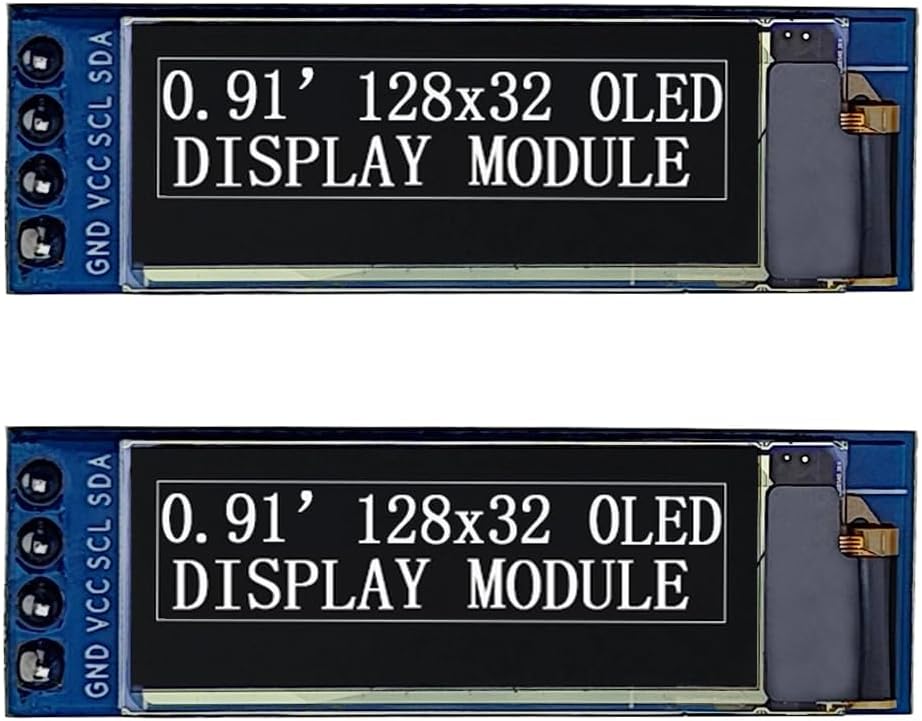

  • 0.91 inch OLED screen module 128*32 resolution, panel size: 30*12mm, Interface type: IIC interface
  • The main chip is SSD1306, supports DC 3.3V to 5.0V
  • This OLED screen module is small and suitable for applications that require a compact display solution
  • Interface: GND: Ground, VCC: DC 3.3-5V, SCL: Serial Clock, SDA: Serial Data
  • Compatible Arduino Raspberry Pi ESP8266 ESP32

Description

Specifications:
Size: 0.91 inch OLED
Resolution: 128 x 32

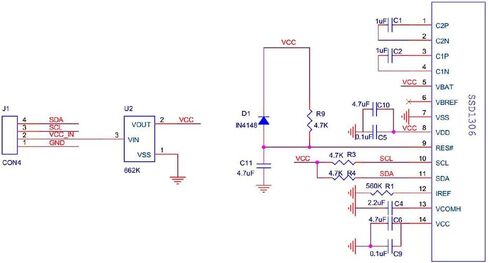

Main chip: SSD1306

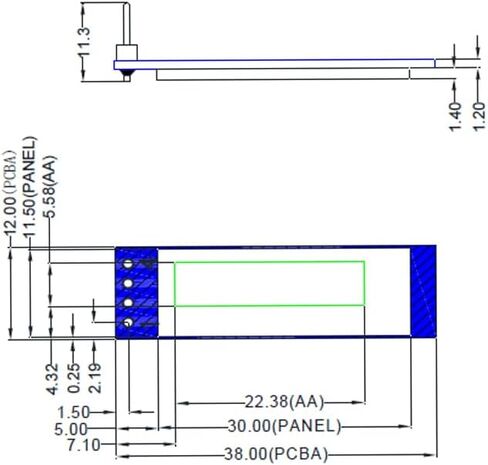

Size: 38 x 12 mm
Interface type: IIC interface
Operating voltage: 3.3V~5.0V
Number of Pins: 4Pin
Display color: blue or white
Operating temperature: -40 ~ 85 celsius degree

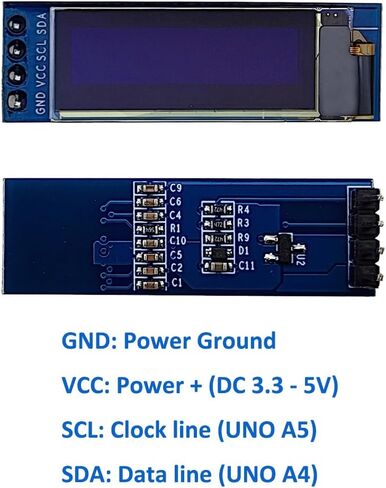

Pin Interface:
GND: Power Ground
VCC: Power + (DC 3.3 - 5V)
SCL: Clock line (UNO A5)
SDA: Data line (UNO A4)
