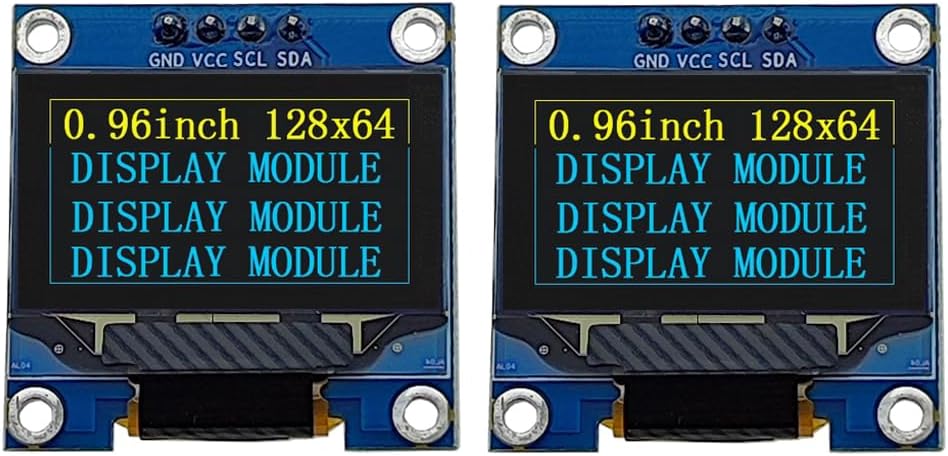

0.96 Inch OLED Display Module 3.3V I2C IIC 128X64 SSD1306 Compatible Arduino Raspberry Pi STM32 (2 Pack, Yellow Blue)

KWD 4.500
Brand
Haldzemo
Weight
11 g
ColorYellow Blue
Size0.96
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 0.96 inch OLED screen module 128*64 resolution, panel size: 28*27mm, Interface type: IIC interface
  • OLED self-luminous, no backlight. The main chip is SSD1306, supports DC 3.3V to 5.0V
  • This OLED screen module is small and suitable for applications that require a compact display solution
  • Interface: GND: Ground, VCC: DC 3.3-5V, SCL: Serial Clock, SDA: Serial Data
  • Compatible Arduino Raspberry Pi ESP8266 ESP32

Description

Specifications:
Screen size: 0.96 inch
Number of Pixels: 128 × 64

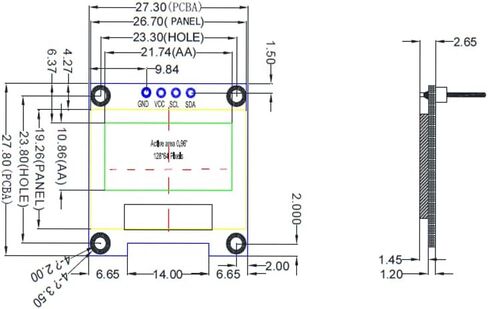

PCB size: 27.3×27.8x2.65mm
Active area: 21.744×10.864mm
Pixel pitch: 0.17×0.17mm
Pixel size: 0.154×0.154mm
Viewing angle: > 160°
Display color: Yellow and Blue
Driver IC: SSD1306
Interface type: IIC interface
Operating voltage: 3.3V~5.0V
Number of Pins: 4Pin
Operating temperature: -40 ~ 85 celsius degree

Pin Interface:
GND: Power Ground
VCC: Power + (DC 3.3 - 5V)
SCL: Clock line (UNO A5)
SDA: Data line (UNO A4)
