PoE M.2 E Key HAT+ for Raspberry Pi 5, PCIe to M.2 E Key Adapter with PoE, Supports NGFF (M.2 E Key) Wireless NIC, USB Bluetooth, SMA Antenna, 16-Pin PCIe & 40-Pin GPIO, 5V/12V Output

Special Features

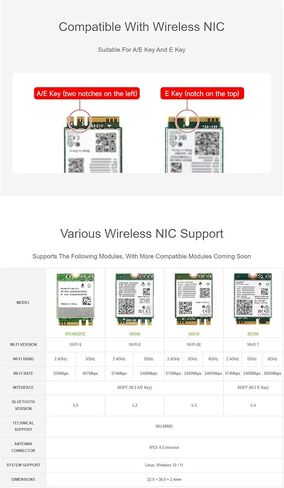

【M.2 E Key & A/E Key Wireless NIC Support】 Compatible with NGFF (M.2 E Key and A/E Key) wireless NIC modules, making it an ideal Pi 5 PCIe adapter for Wi-Fi and Bluetooth expansion.
【PoE Power Supply for Raspberry Pi 5】This PCIe to M.2 E Key HAT+ supports Power over Ethernet (PoE), providing both network connectivity and stable power via a single Ethernet cable.
【5V & 12V Power Output for Extra Devices】Onboard 5V/12V power headers deliver up to 4.5A (25W max total output), ensuring stable power for Raspberry Pi 5 and external devices.
【USB Bluetooth & SMA Antenna Support】Features USB Bluetooth connectivity (when a wireless NIC module is installed) and an SMA female antenna connector for enhanced wireless signal reception.
【16-Pin PCIe & 40-Pin GPIO Connectivity】Connects to the Raspberry Pi 5 PCIe interface via a 16-pin cable and features a 40-pin GPIO stackable header, allowing additional HAT+ modules to be connected.

Description

Overview

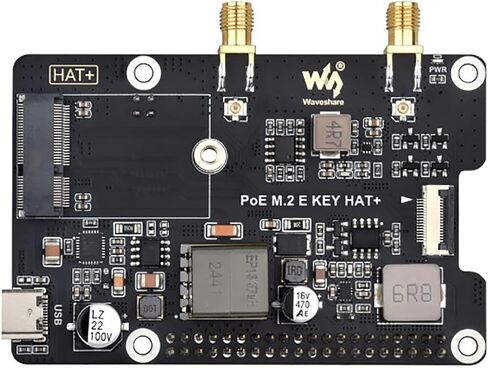

This PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Onboard SMA female antenna connector supports USB Bluetooth connection, PoE power supply.

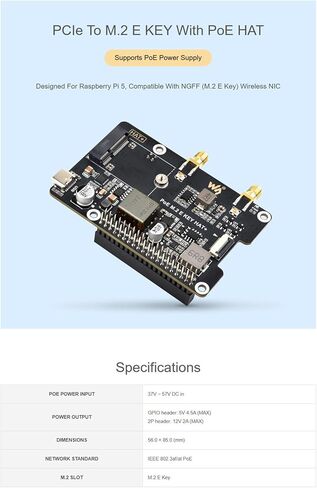

Specifications

PoE power input: 37V ~ 57V DC in
Power output: GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)

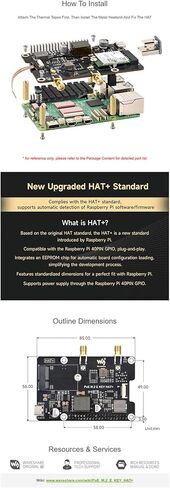

Dimensions: 56.0 × 85.0 (mm)
Network standard: IEEE 802.3af/at PoE
M.2 Slot: M.2 E Key

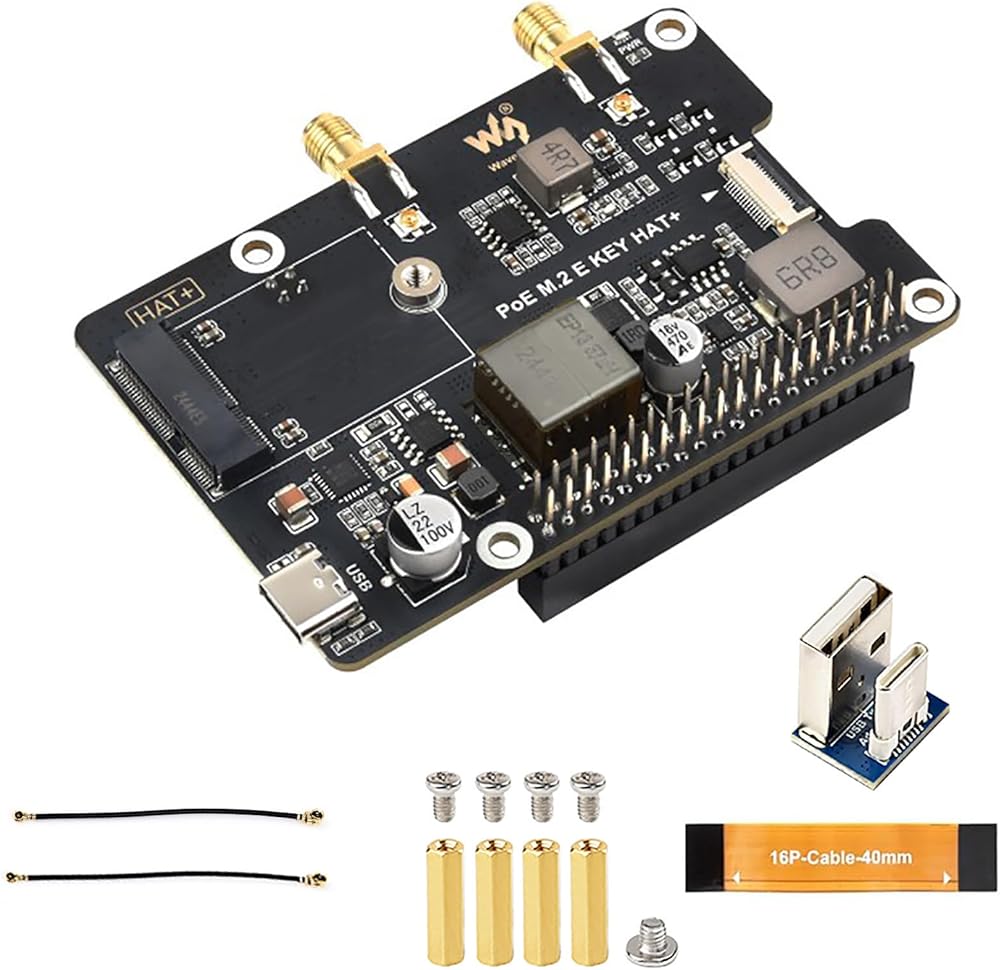

Packing List

PoE M.2 E KEY HAT+ x1
USB Type-C Adapter (E) x1
IPEX 1 to IPEX 4 adapter cable ~6cm x2
16P-Cable-40mm x1
Screws pack x1

Resources & Services

Wiki: www.waveshare.com/wiki/PoE_M.2_E_KEY_HAT+
