Tri-Color 2.13inch E-Ink Display Module Three-Color Resolution 212x104 3.3v E-Paper Electronic Screen Panel with Embedded Controller SPI Interface Fits Raspberry Pi/Arduino/STM32/Jetson Nano

KWD 9.500
Brand
waveshare
Weight
10 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing; Onboard voltage translator, compatible with 3.3V/5V MCUs

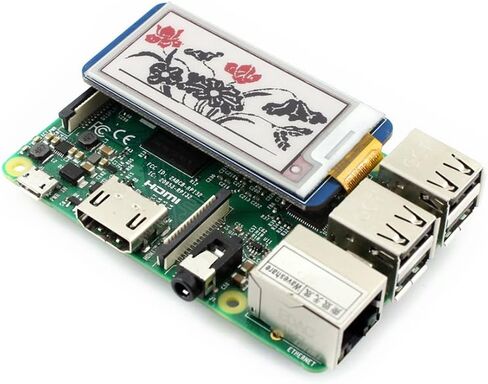

  • Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc

Description

Overview

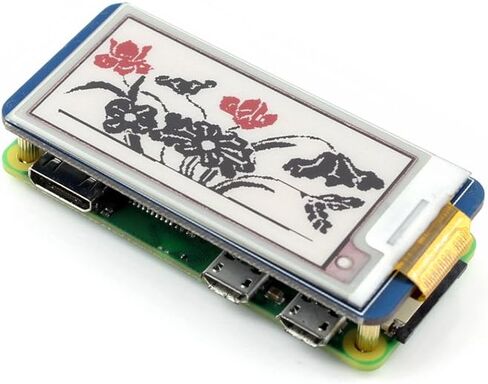

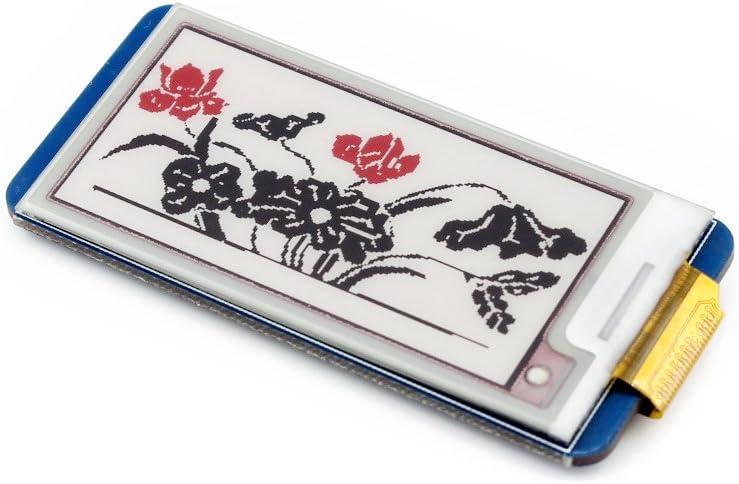

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface,
supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under
sunlight, it is an ideal choice for
applications such as shelf label, industrial instrument, and so on.

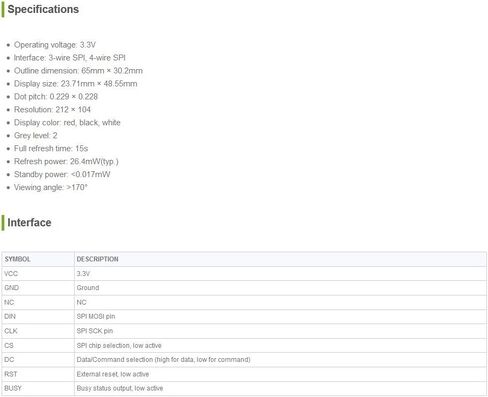

Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.229 × 0.228
Resolution: 212 × 104
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: Viewing angle: >170°

Package Content

1. 2.13inch e-Paper HAT (B) x1
2. RPi screws pack (2pcs) x1
3. 9-pin 2.54 pitch SMD pinheader x1
