100% new and high quality
Model Number: TS472
Work Voltage: DC 2.2V~5.5V
Audio signal: Differential signal
Work Temperature: -25°~85°
Work Humidity: 5%~95%RH
Quantity: 1Pcs
Description:
The TS472 is a differential-input microphone preamplifier optimized for high-performance PDA and notebook audio systems.
This device features an adjustable gain from 0 to 40 dB with excellent power-supply and commonmode rejection ratios. In addition, the TS472 has a very low noise microphone bias generator of 2 V.
It also includes a complete shutdown function, with active low standby mode.
Applications:
Video and photo cameras with sound input
Sound acquisition and voice recognition
Video conference systems
Notebook computers and PDAs
Note:
Light shooting and different displays may causethe color of the item in the picture a little different from the real thing.The measurement allowed error is+/-1-3cm.
We highly appreciate all custome rsopinions to improvethe selling, also if anything you unsatisfied, please contact us for probable best solution. Thank you!
Package Included:

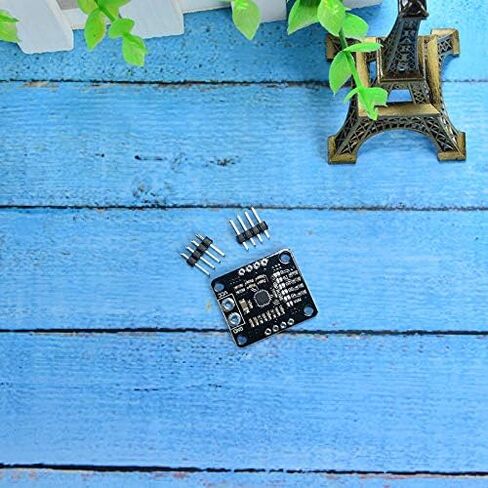

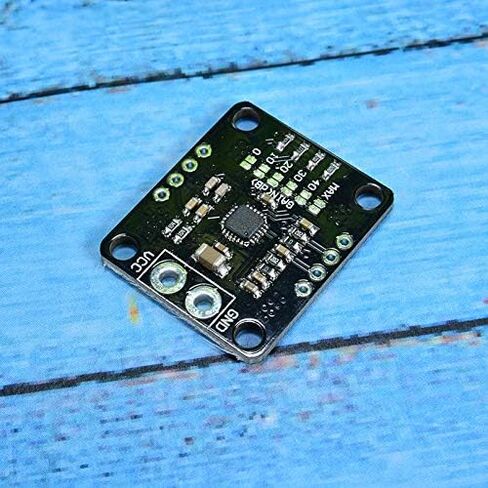

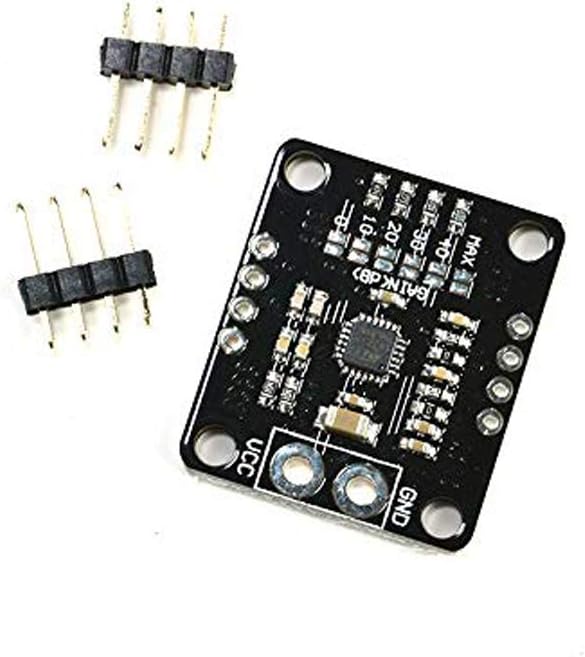

1Pcs TS472 Electret Microphone Amplifier Audio Preamplifier Board Active Low Standby (If the number of products received is incorrect, please contact us. we will refund or give you a replacement.)
