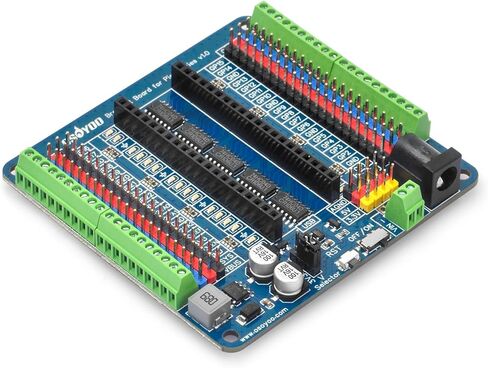

OSOYOO Breakout Board for Raspberry Pi Pico - GPIO Status LEDs, Reverse Power Protection, 3-Pin Sensor/Servo Interface, Independent 5V/3.3V Power Supply, On-Board Screw Terminals for Prototyping

Special Features

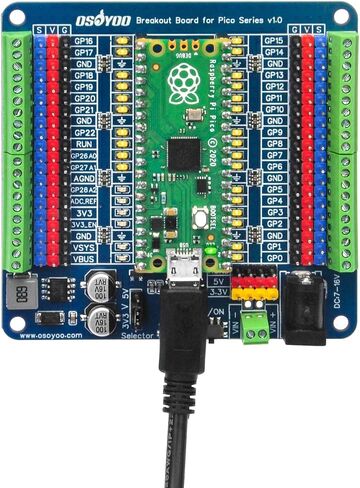

GPIO status LED: LED on if GPIO outputs/inputs high level, LED off if GPIO outputs/inputs low level. It is a useful tool for troubleshooting and debugging I/O without the need for a meter or getting into the software.
Standard pin interface to achieve full compatibility with the pitch Pico series and all Pico series fully compatible boards
Digital IO port 26 ports prepared to digital modules, Analog IO Port 4 ports prepared to analog sensor input
Easy and Flexible Wiring:Simplifies connecting wires to Pico boards, offering easier and more flexible connections. The terminal block design allows for easy "screw-in" of bare wires. Ideal for projects requiring sturdy connections without soldering.
Ideal for practical, hands-on projects: This is a great way to connect items to the Pico for projects you are going to actually use in the real world. These Breakout Board Terminal Expansion Shields allow you to build items that you are going to use in Robotics and 3D-Printed projects that require you to connect and disconnect wires.

Description

OSOYOO Breakout Board for Raspberry Pi Pico Series

Upgrade your Raspberry Pi Pico projects with the OSOYOO Breakout Board, designed for seamless prototyping and enhanced performance. This board features LED indicators on each GPIO port, allowing real-time monitoring of pin status without wiring. Easily verify your prototype code with instant visual feedback.

Key Features:

GPIO Status LEDs: Quickly identify pin activity for streamlined debugging and prototyping.

Reverse Power Protection: Built-in circuit protection automatically shuts down the board if the power is connected incorrectly, preventing damage.

3-Pin Sensor/Servo Interface: Includes V and GND pins on each I/O pin for effortless sensor and servo module connections.

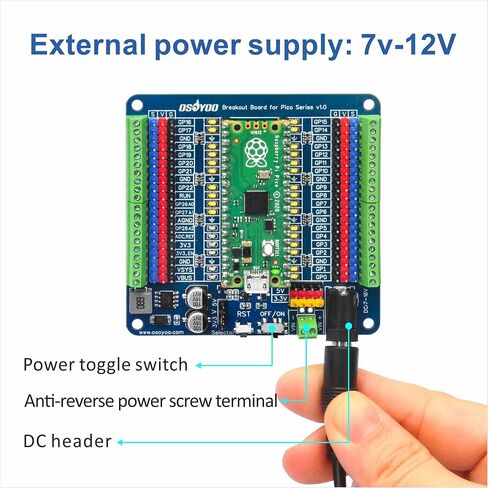

Independent Power Supply: On-board 5V/2A & 3.3V/500mA power supplies provide stable power for servos, sensors, and other peripherals.

Screw Terminals: Ensure reliable connections with on-board screw terminals for hassle-free wiring.

Important Notes:

The Pico series supports a maximum I/O voltage of 3.3V. Avoid connecting devices that output 5V to the I/O ports to prevent damage.

Adjust the V_Selector jumper cap to set the V pin output voltage when using an external power supply through the VIN interface.

If using only the Pico's on-board 3.3V output, connect the S connector's 3.3V pin to the V_Selector's V pin with a Dupont cable.

Compatibility:

Fully compatible with all Raspberry Pi Pico models, including:

First Generation: Pico, Pico H, Pico W, Pico WH

Second Generation: Pico 2, Pico 2 W

Experience effortless prototyping with the OSOYOO Breakout Board for Raspberry Pi Pico – designed for makers, educators, and tech enthusiasts looking to bring their ideas to life.

TECH SPECS

Name: OSOYOO_IO_Breakout_Board_for_Pico_v.1.0

Operating Voltage: 5V

VIN Input Voltage (recommended): 7-12V

VIN Input Voltage (limit): 7-18V

Digital I/O Pins: 26

PWM Digital I/O Pins: 18

Analog Input Pins: 4

Power Switch: Yes

External Power Output: 5V/2A 3.3V/500mA

Options for power input: USB/DC005–2.1/Screw terminal/Male pinheads

On-Board LED Indicators: All GPIO ports
