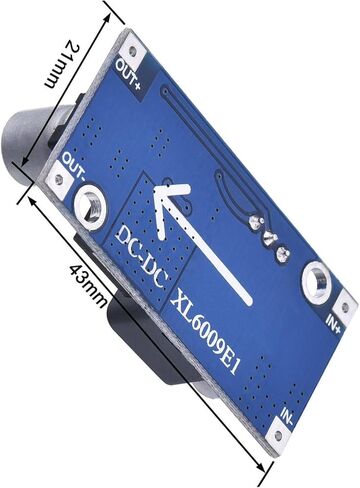

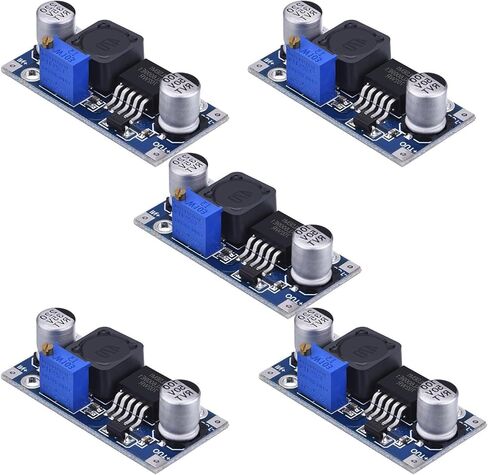

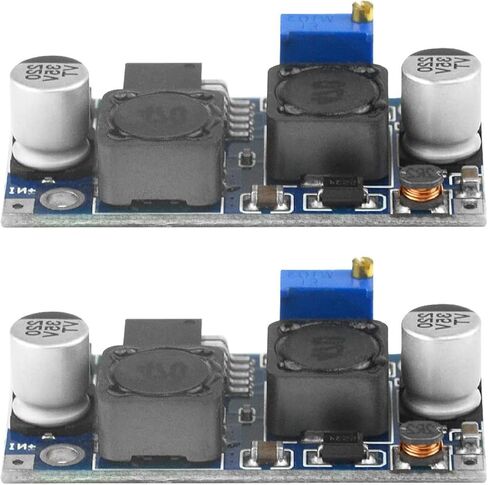

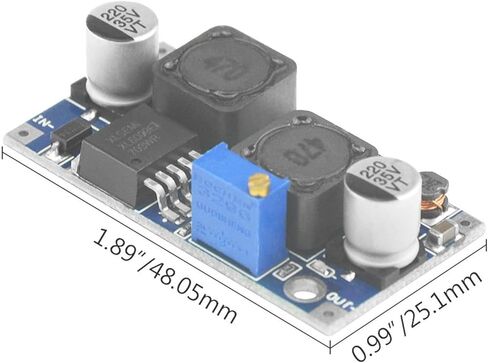

5 Packs XL6009 Boost Module is a DC-DC Adjustable Module and a Power Converter Circuit Board Module. It has a Switching Frequency of 400KHz and an Output Voltage Range from 3.0-30V to 5-35V.
Module Type and Core Technology: XL6009 is a high-performance 400KHz 4A switch current step-up (BOOST) module. It utilizes the 3rd generation high-frequency switch technology as the core chip and exhibits superior performance compared to LM2577.
Input Voltage Specifications: It has a wide input voltage range from 3V to 32V, with an optimum operating voltage range of 5V to 32V.
Output Voltage Characteristics: The output voltage range is wide, spanning from 5V to 35V.
Switch and Efficiency Features: Equipped with 4A high-efficiency MOSFET switches, XL6009 can achieve an efficiency of up to 94%, while the current of LM2577 is limited to 3A. Additionally, its ultra-high switch frequency of 400KHz enables excellent results even with small capacity filtering capacitors and smaller ripple compared to LM2577 which has a frequency of 50KHz.
Noise Filtering Component: It incorporates a 0.1uF high-frequency bypass capacitor that effectively filters out high-frequency noise.
2 Pieces of DC - DC Step-Down Power Modules, converting 8V - 35V to 5V 8A, Vehicle Charging Power Supply Modules, 4-Port USB Mobile Charging Modules
KWD 6
8 Pieces of L298N Motor Drive Controller Board Modules, Stepper Motor DC Dual H-Bridge, Suitable for Arduino Smart Car Power UNO MEGA R3 Mega2560
KWD 7
20 Pieces of Mini MP1584EN DC-DC Buck Converter, Adjustable Power Module, from 24V to 12V, 9V, 5V, 3V.
KWD 11.500
10 Packs 5V Regulator, Mini Buck DC 5-30V, Step-Down Converter Boards from 12V and 24V to 5V with 1.8A Output, Mini360 Small Power Modules of Model MP1584EN for Small Aircraft
KWD 5.500
