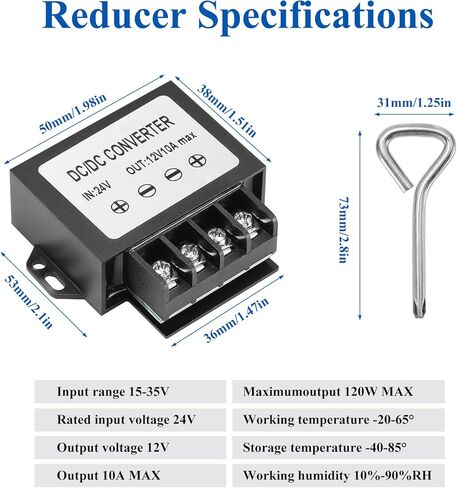

DC 24V to 12V10A Buck Voltage Regulator Specifications:
Rated input voltage: 24V
Output Voltage: 12V
Input Range: 15V-35V
Output Power: 120W MAX
Input Amps: 10A MAX
Operating Temperature: -20° to 65°
Storage Temperature: -40° to 85°
Operating Humidity: 10% to 90% RH
Size: 6.3*5.3*2cm
incoming line:7.62POST
outlet line:7.62POST

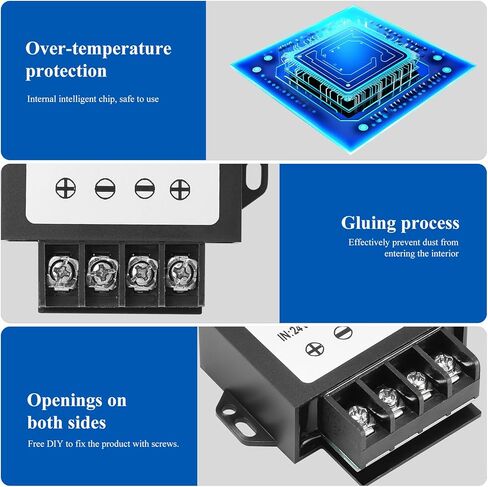

Buck converter function features:
1.Voltage converter has over-temperature protection, over-current protection, over-voltage protection, support for short-circuit protection, short-circuit phenomenon at the output terminal, the product stops working without output, troubleshooting to restore the output.

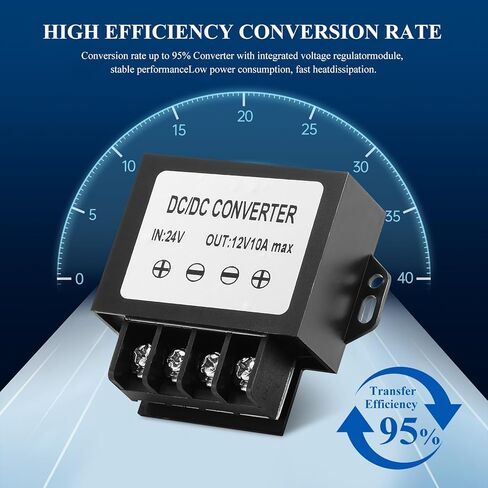

2. Sufficient power, stable voltage output, high conversion efficiency, aging resistance, good heat dissipation, can withstand a variety of conditions while maintaining its optimal function to ensure long-term use.
3. The power converter is compact and versatile. It can be easily installed in most spaces, ensuring that it will not interfere with your other equipment or gadgets.
4. Meet DIY demand: you can install the DC converter by yourself, just remove the screws on the four ports, strip the insulation on the wires to the appropriate length, wrap the copper wire around the connector, and then screw on the screws; Note: Don't reverse the positive and negative poles of the input and output ports!

Special Attention:
1.The product does not have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.
2.The products are stored in a dry and cool place with a temperature range of-40℃ ~80℃, and avoid contact with corrosive substances, and stay away from fire and heat sources.
3.Do not use it near a heat source (such as a fire or a heater)
4.Do not connect the input line to 220V electricity
5.Do not put the product into the fire or heat it
6.Do not short-circuit the positive or negative poles of the product with wires or other metal objects
7.Non-professional personnel are prohibited to disassemble and repair by themselves
8.Product working environment temperature: -20-65℃, when the working environment temperature is 35℃, in order to extend the service life of the power supply, please use the rated output current of 50%.

Package Includes

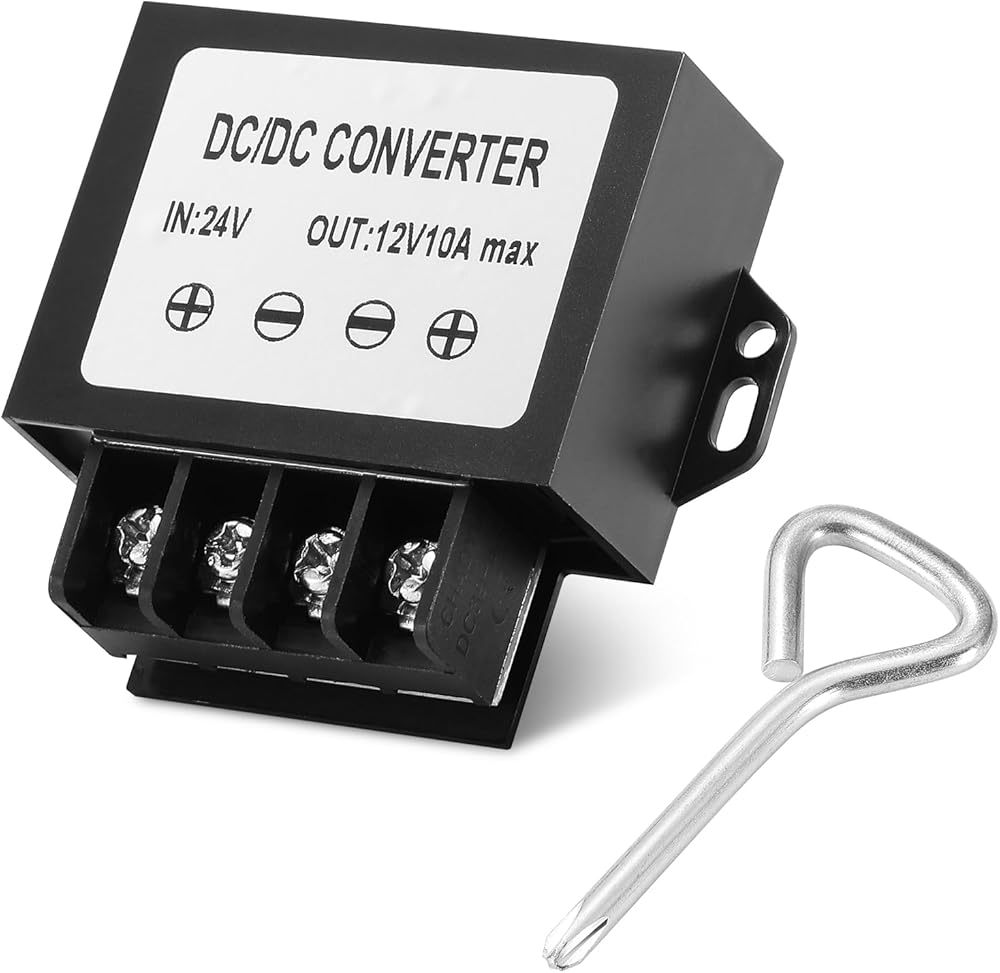

1 x 24V to 12V 10A step-down converter
1 x Triangular screwdriver
