Description

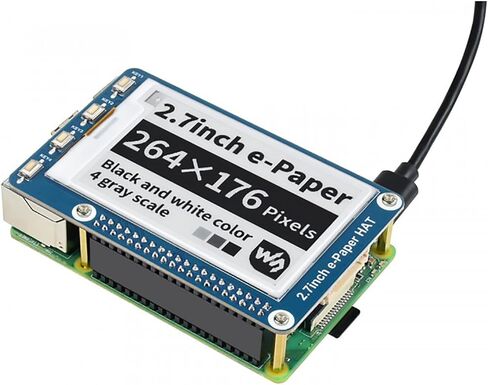

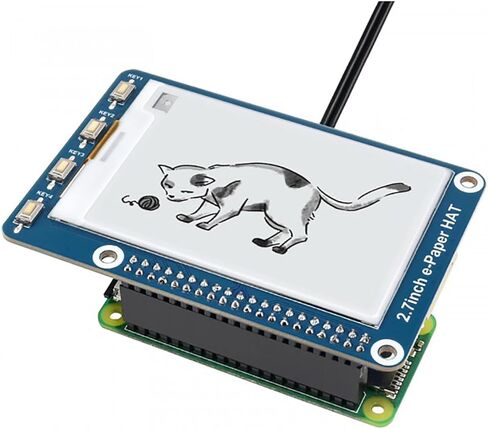

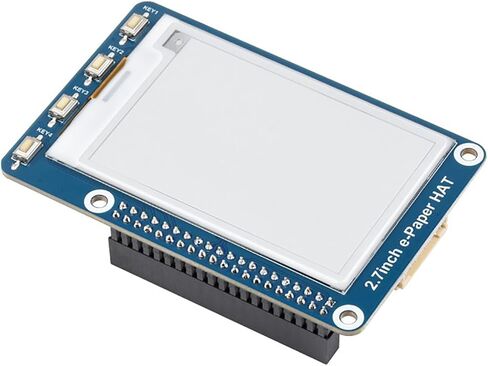

This is an E-Ink display HAT for Raspberry Pi, 2.7 inch, 264x176 resolution, with embedded controller, communicating via SPI interface.

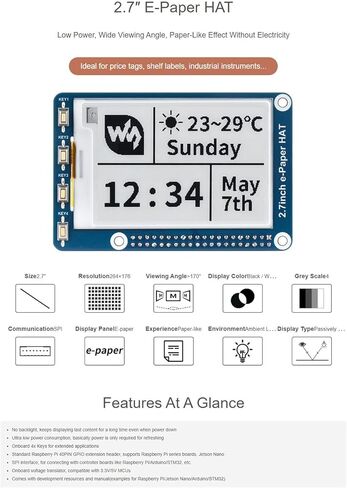

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

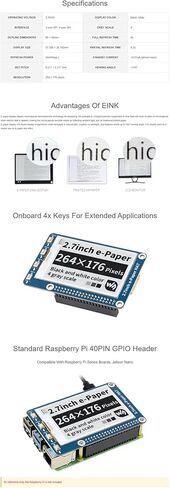

Specifications

Operating voltage: 3.3V/5V
Display color: black, white

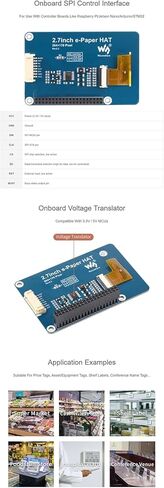

Interface: 3-wire SPI, 4-wire SPI
Grey scale: 4

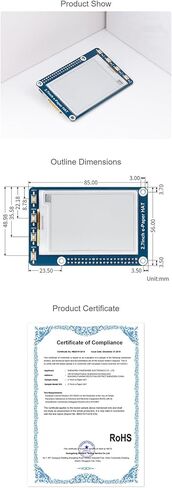

Outline dimensions: 85 × 56mm
Full refresh time: 6s
Display size: 57.288 × 38.192mm
Partial refresh time: 0.3s
Refresh power: 24mW(typ.)
Standby current: DOT PITCH: 0.217 × 0.217 mm
Viewing angle: >170°
Resolution: 264 × 176 pixels

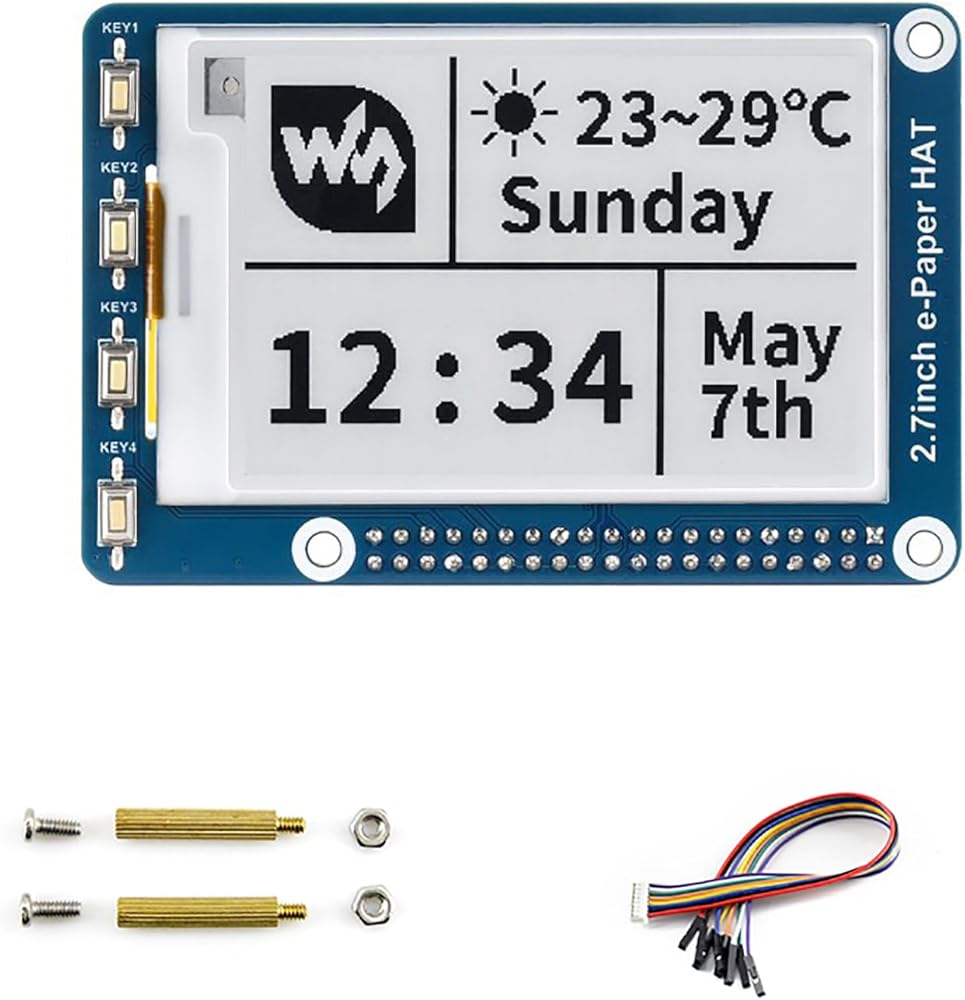

Packing List

2.7inch e-Paper HAT x1
RPi screws pack (2pcs) x2
PH2.0 20cm 8Pin x1
