Description

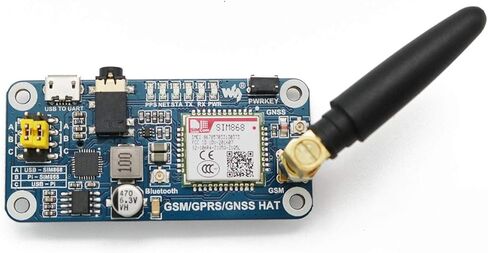

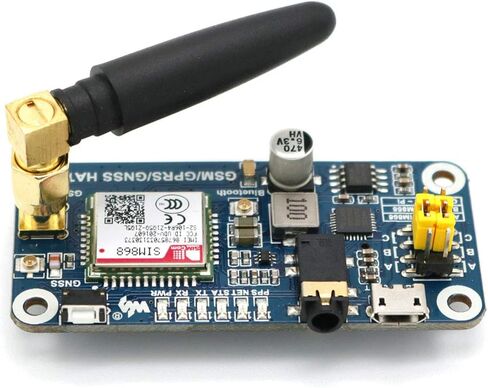

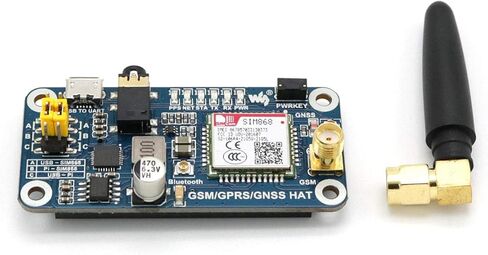

GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi, Based on SIM868
This is a handy, low power RPi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.

It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via
Bluetooth, and so on.

Features

Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
Bluetooth 3.0, supports data transferring through Bluetooth
Onboard USB TO UART converter CP2102 for UART debugging
6x LEDs for indicating the module working status

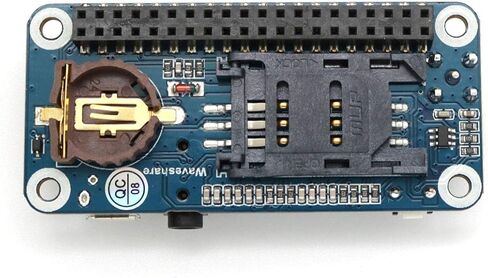

SIM card slot for 1.8V/3V SIM card
RTC with backup battery holder
Baudrate auto detection (1200bps ~115200bps)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

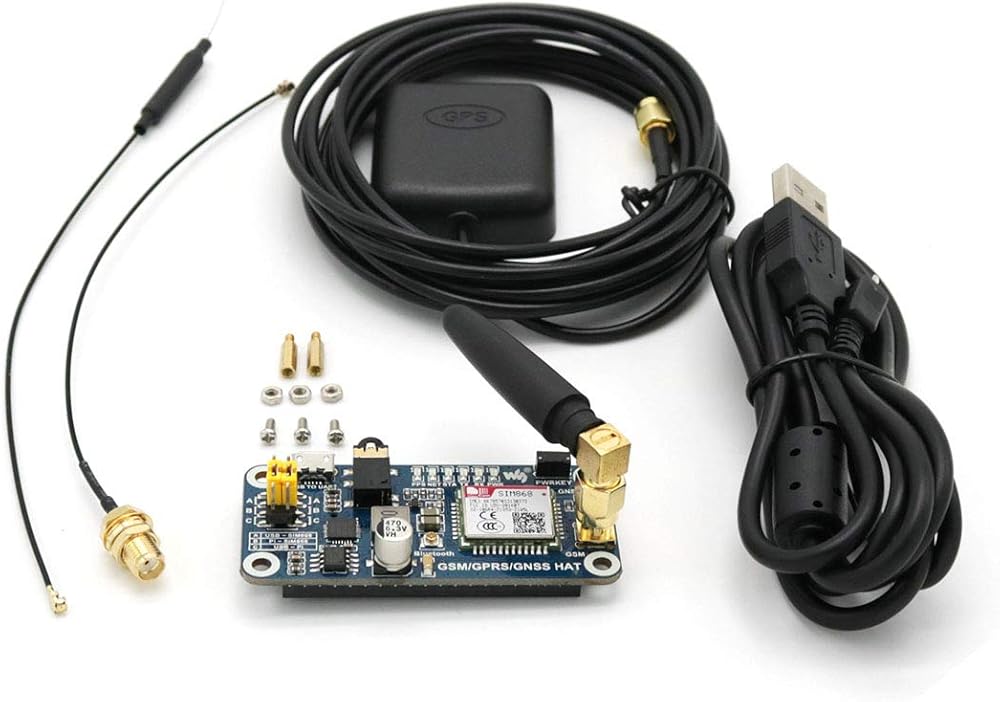

Package Contains

1. GSM/GPRS/GNSS HAT x1
2. GSM Antenna x1
3. GPS External Antenna (B) x1
4. Bluetooth Antenna x1
5. USB type A plug to micro plug cable x1
6. RPi screws pack (2pcs) x1
