Product description

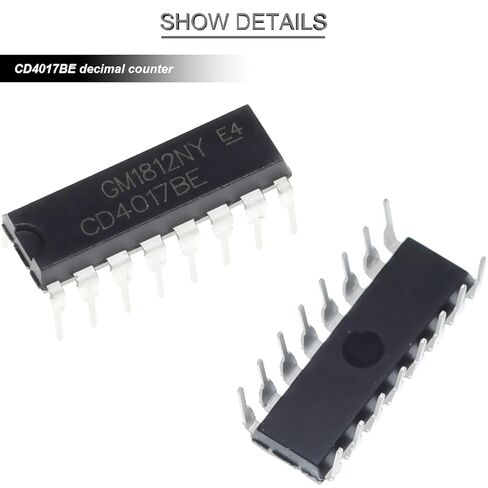

CD4017:
Compatible P/N:
CD4017 CD4017B CD4017BE HCF4017BE HEF4017BP TC4017BP

Features & Benefits:
Fully static operation
Medium speed operation 10 MHz (typ.) at VDD = 10 V
Standardized, symmetrical output characteristics
100% tested for quiescent current at 20 V
5-V, 10-V, and 15-V parametric ratings

Bits per Element: 6
Clock Frequency: 16MHz
Function: Master Reset
Trigger Type: Positive Edge
Mounting Type: Through Hole
Current: 6.8mA
Operating Temperature Range: -55°C to +125°C

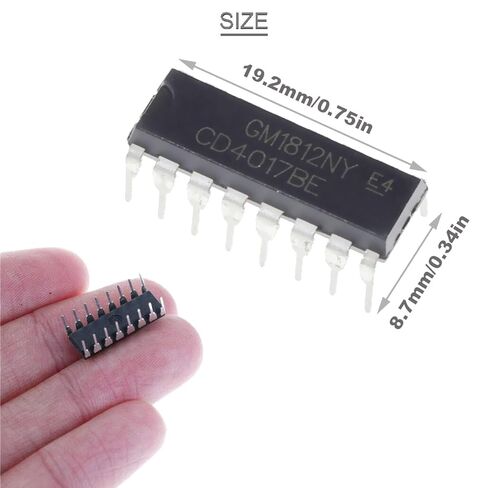

Size: 19.2mm x 8.7mm x 7.3mm

Chip Socket Adaptor:
Easy Operation:
Step 1: Solder the IC socket to the PCB circuit board.
Step 2: Insert the chip into the IC socket, finish.
The IC socket is the carrier between the chip and the PCB circuit board, the chip can be pulled and inserted directly without soldering to the PCB board.

Package Includes:
20 x CD4017
20 x Chip Socket Adaptor
