Work with most line testers/ finders:

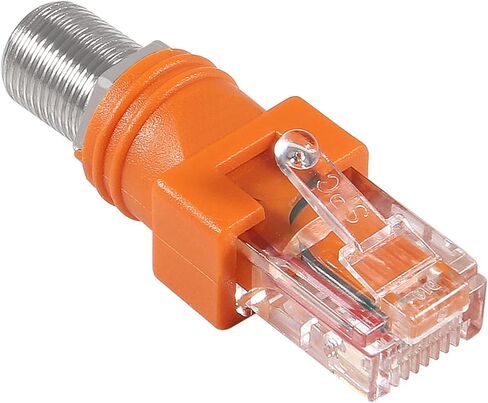

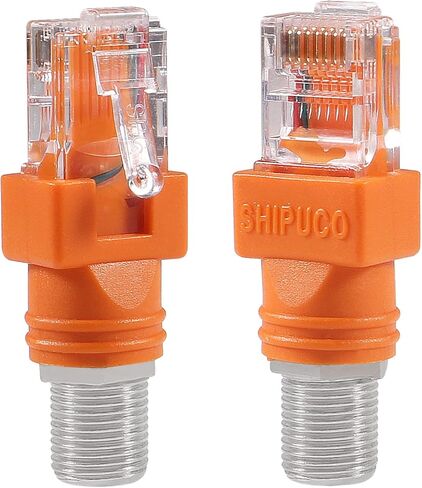

RF to RJ45 converter adapter can be applied with most line testers, line finder and other testing equipment to detect BNC monitoring lines, or for hunting.
Not for:
These coax straight connectors are not for networking, only for analyzing and testing the BNC line to confirm whether the video conversion function works well or not, kindly noted.
The product can be applied in conjunction with most line finder products, compatible with expert, ancient grass, smart mouse, fir forest, etc.. Through the adapter, you can change among various connectors to achieve more function.
Specifications:
Material: plastic and metal
Color: orange and silver
Connector A: F Jack
Connector B: RJ45 plug
Impedance 50 ohm
Testing method:
1. First, you need to prepare two rj45 converters and network cables. When testing, you can first split the tester into two sides. Next, we plug the two ends of the network cable (rj45 interface) that need to be tested into the network cable interfaces on both sides of the tester. Turn on the switch, and adjust slow or fast speed.
2. If it is a straight-through cable, the order of the lights on both sides should be 1-8 when the network cable is normal. If it is a cross line, the order of the lights on one side is 1-8, and the order of the other side is 36145278. If the lights are not according to this if the sequence is on, it means the line sequence is wrong. If a certain light is not on, it means that the line where the light is located cannot be turned on normally, and there is a problem.
Package includes:

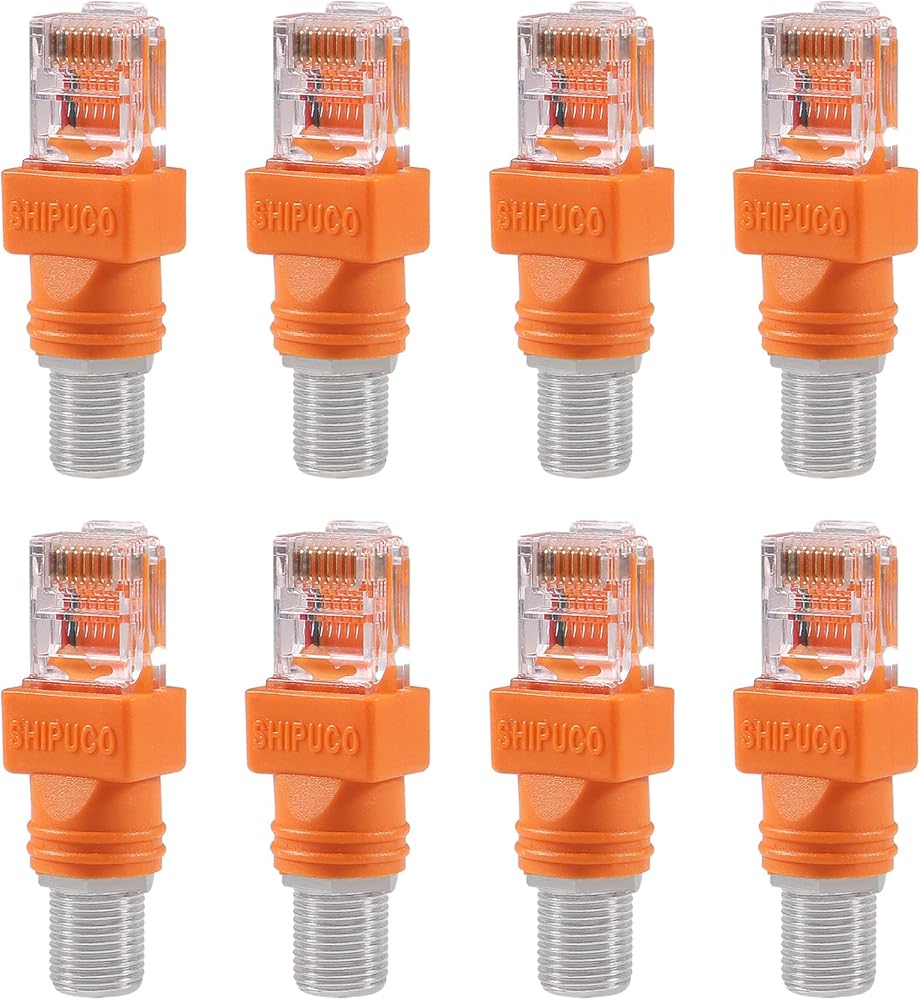

8 x RJ45 to RF connectors
