Description:

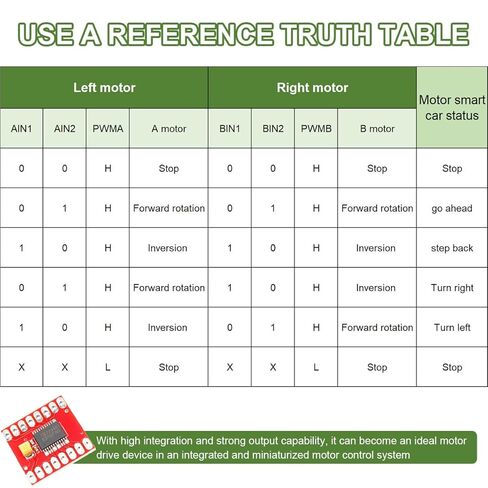

The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and s. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.CJMCU.

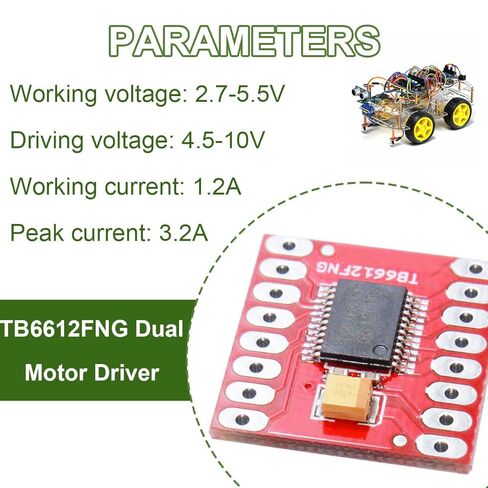

Product parameters:
Working voltage: 2.7-5.5V
Driving voltage: 4.5-10V
Working current: 1.2A
Peak current: 3.2A

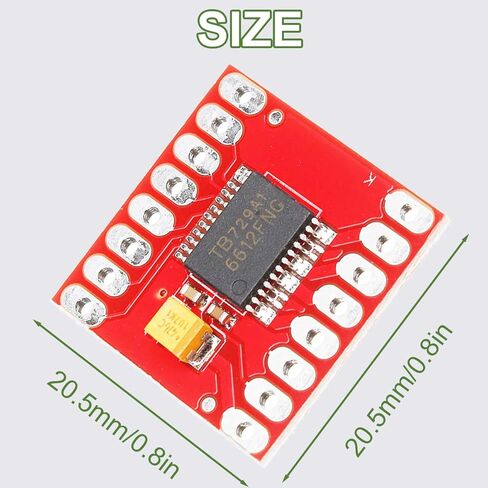

Board size: 20.5x20.5mm/0.8x0.8in

Feature:
1.Standby control to save power
2.CW/CCW/short brake/stop motor control modes
3.Built-in thermal shutdown circuit and low voltage detecting circuit

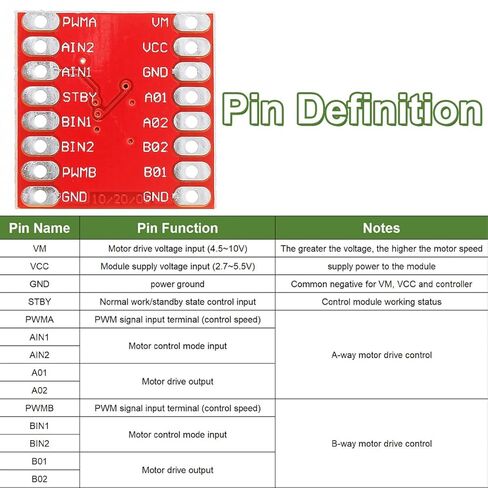

4.All pins of the TB6612FNG broken out to 0.1 inch spaced pins
5.Filtering capacitors on both supply lines

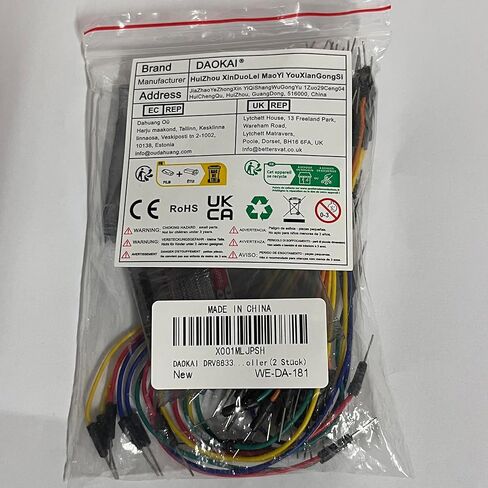

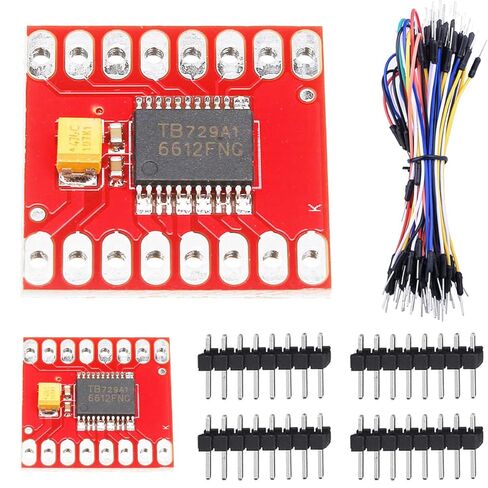

Package Includes:
2 x TB6612FNG Dual Motor Module
1 x Jump Cable
