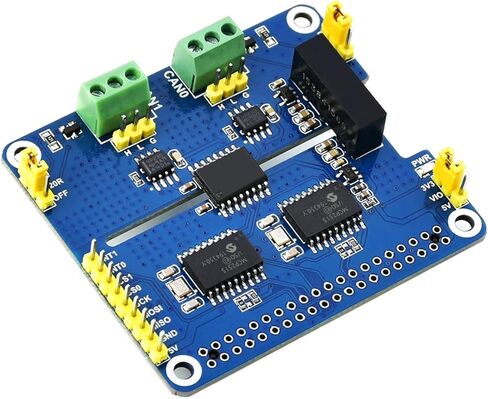

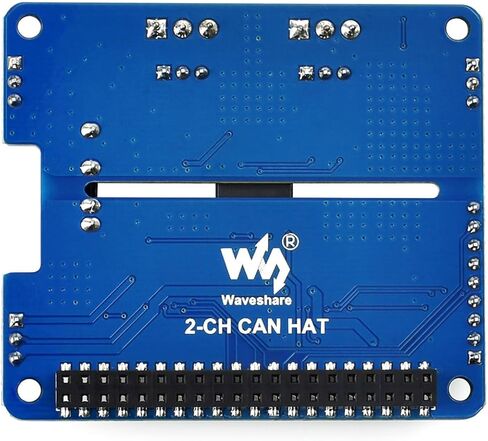

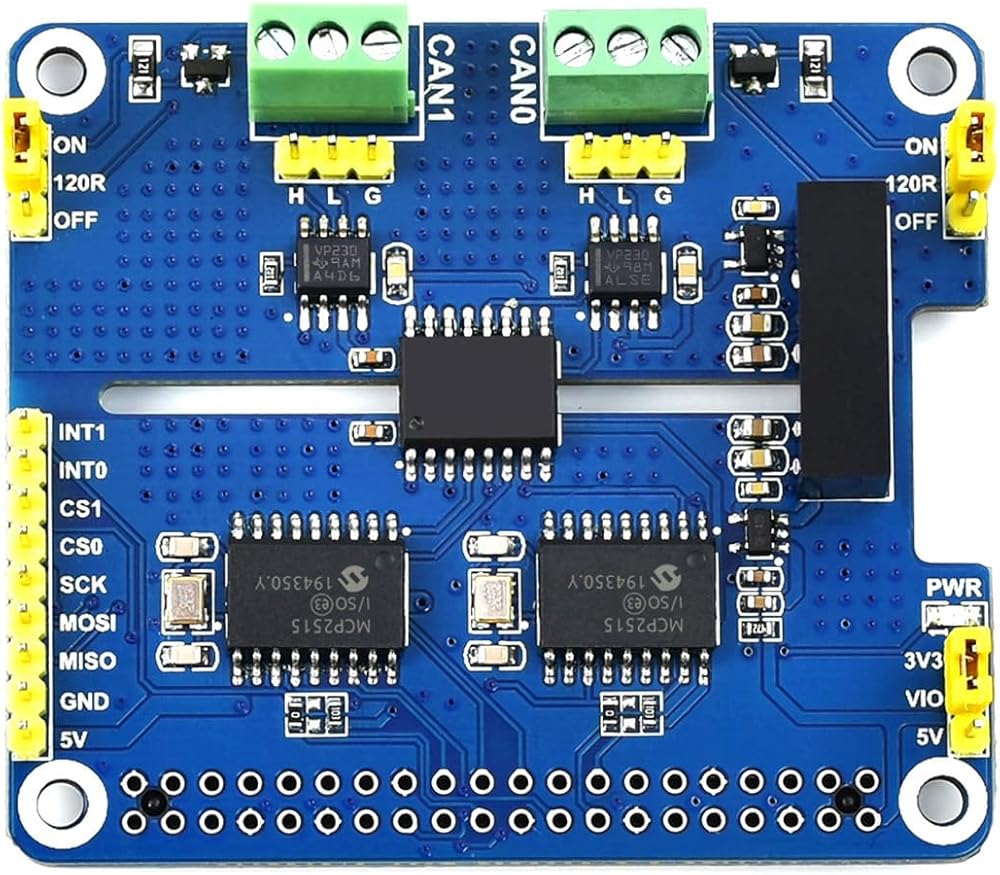

2 Channel CAN HAT Isolated CAN Bus Expansion Board for Raspberry Pi/STM32/Arduino with MCP2515 + SN65HVD230 Dual Chips Solution

KWD 11.500
Brand
Coolwell
Weight
31 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 2-CH CAN HAT for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH 2W, adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication

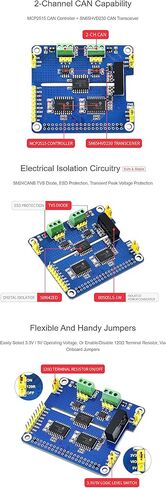

  • 2 channel can-bus, integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
  • 2 CH CAN BUS, onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
  • CAN BUS HAT for Raspberry Pi, onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
  • Breakout SPI control pins, for connecting with STM32/Arduino, feel free to contact us for resources address and technical support

Description

Features

Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
Onboard voltage translator, select 3.3V/5V operating voltage by jumper
Onboard 120Ω terminal resistor, configured by jumper
Breakout SPI control pins, for connecting with host control boards like STM32/Arduino

Package include

1. 2-CH CAN HAT x1
2. RPi screws pack x1
3. 2×20PIN female header x1
