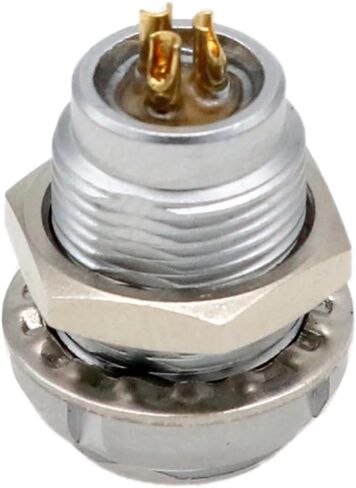

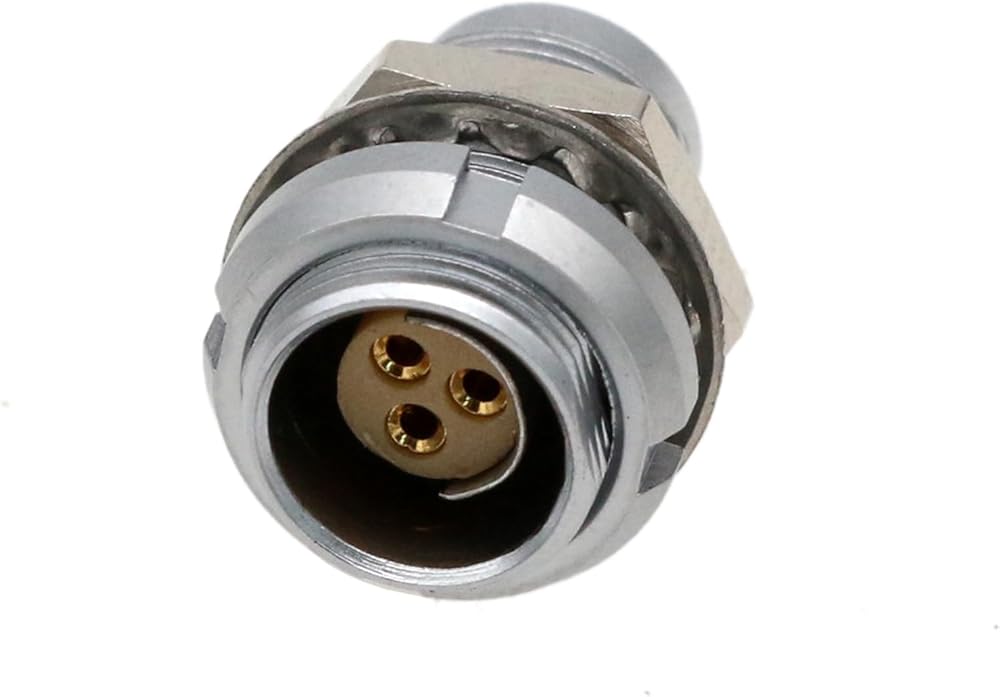

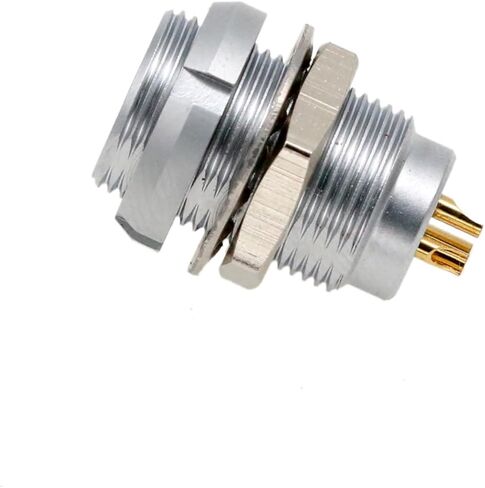

3 Pin panel mount socket female

KWD 10
Brand
HangTon
Weight
14 g
Colorpanel mount socket female
Length3 Pin
– 1 +

Special Features

  • 4 pin female panel mount socket black connector, compatible for Fischer DBPE 102 A 053
  • Rated current: 5.5 Amps. Wire size: AWG22, cable diameter: 3mm-5mm, contact diameter: 0.7 mm

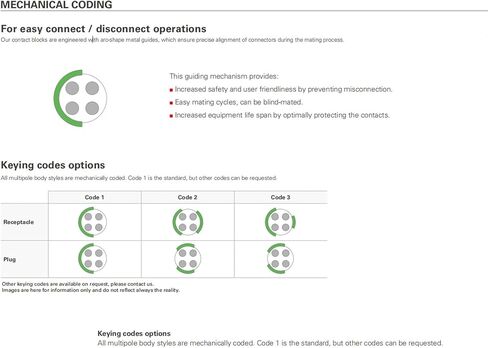

  • Size 102, keying CODE 1, male polarity, low voltage, black color
  • Socket, push-pull locking, cable mounting, solder termination, brass material
  • Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance

Description

Compatible with Fischer DBPE 102 series connectors.

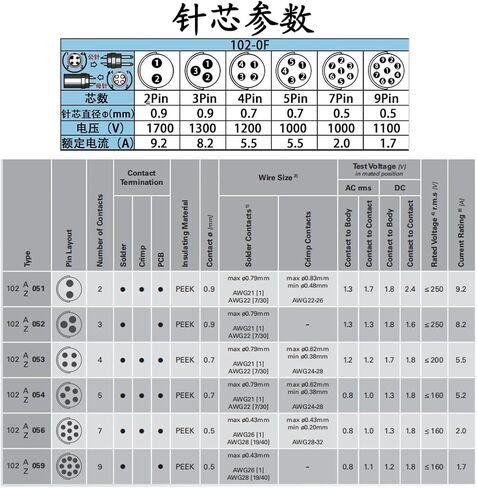

Contacts: 2 3 4 5 7 9
Wire diameter max: 2-5pin: 22AWG; 7pin: 26AWG; 9pin: 28AWG.
Cable Outer Diameter Range: 3mm-5mm
Shell Material: BraDBPE chrome plated
Contact Material: BraDBPE gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125℃
We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / silvery anodized).
