All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

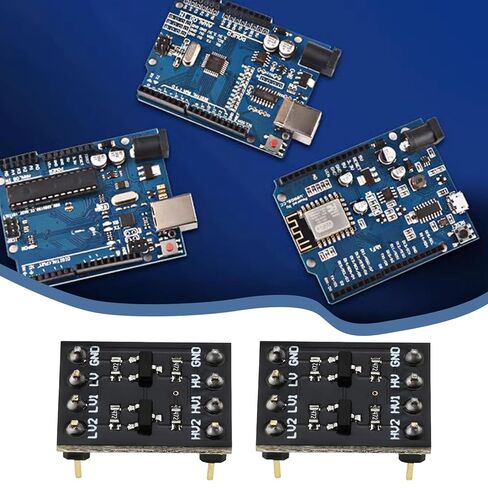

Compatible with Ard-uino Nano R3, compatible with Ar-duino Nano 33 IoT, compatible with Raspberry Pi and other mainstream development boards, suitable for a variety of project needs.

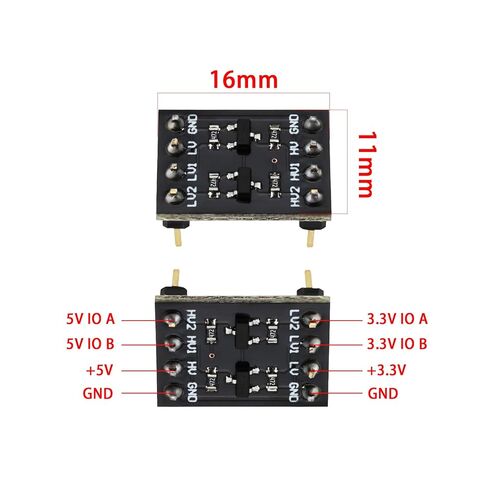

The size of the board is 16x11mm, and each module provides two independent I2C channels, which can connect two I2C devices at the same time to improve the efficiency of use.
Supports two-way communication, not only can it convert 3.3V I2C signals to 5V, but it can also safely convert 5V I2C signals back to 3.3V, which is very useful for connecting devices with different voltage levels.
The module is soldered and has a power indicator light, so you can see at a glance whether the template is working or not.
Please note: Make sure that when connecting, the 3.3V and 5V power supplies are connected to the corresponding pins respectively, and do not connect them in reverse, otherwise it may damage the device. Although the level conversion module can handle voltage conversion, you should also pay attention to the current limit on the I2C bus to avoid overload.
