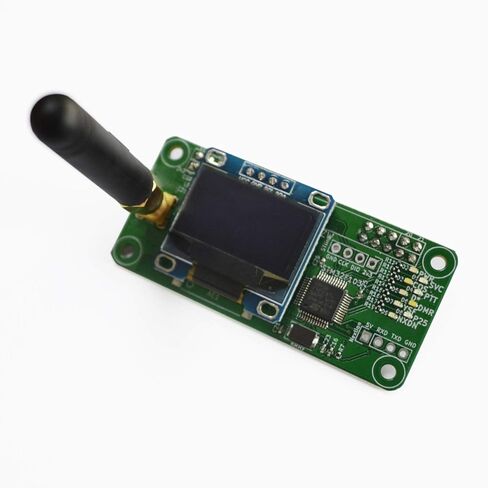

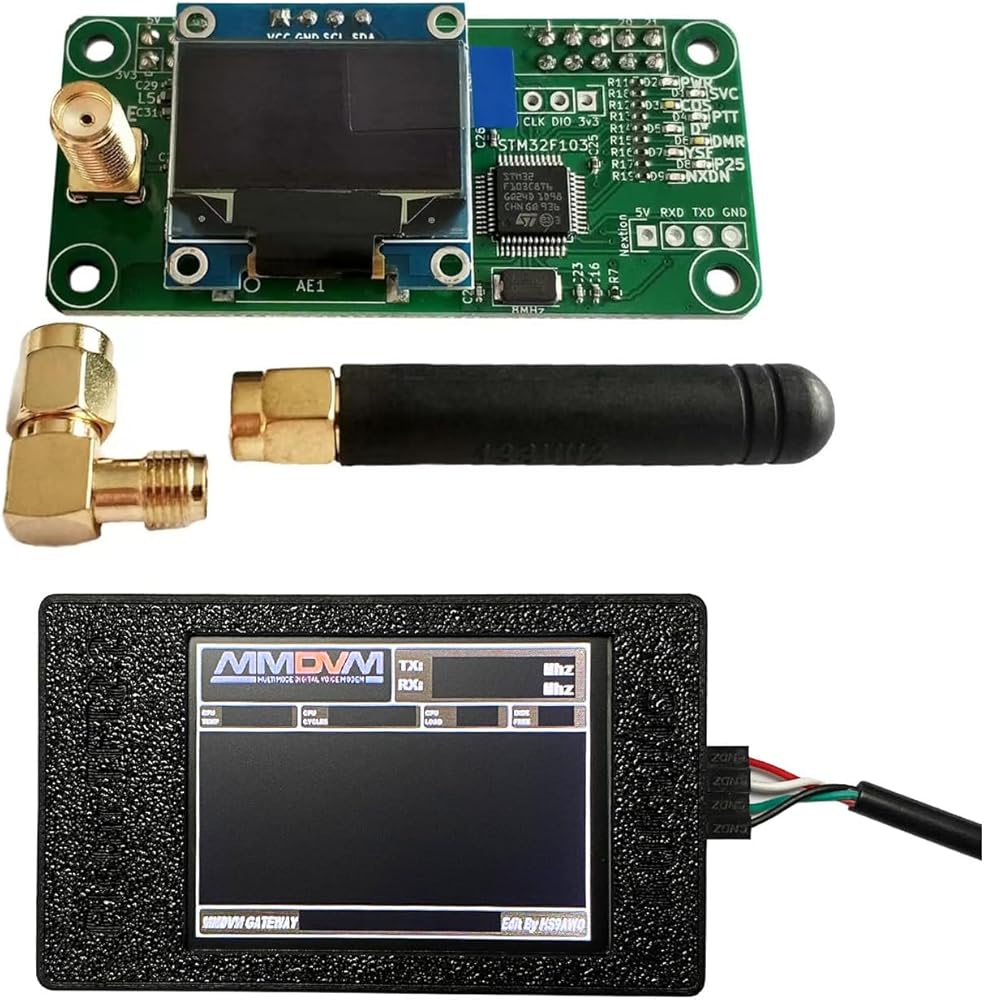

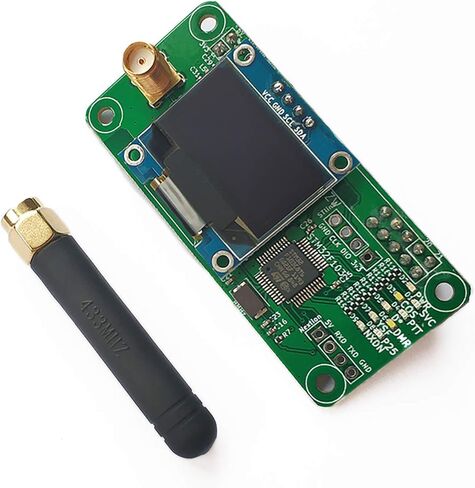

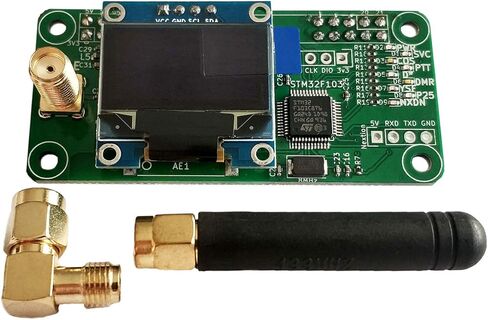

AURSINC MMDVM Hotspot Board + 2.2 Inch Color TFT Display Nextion Display with Enclosure for PI-Star

KWD 27.500
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Frequency Range] MMDVM hotspot supports UHF VHF, frequency range: 144MHz-148MHz, 420MHz-475MHz, 842MHz-950MHz (depending on ADF7021 and TCXO, HAT firmware amateur radio brand license restrictions)
  • [Applicability] AURSINC hotspot board supports Raspberry Pi 3B, 3B +, Pi ZERO, compatible with NanoPi NEO, Orange Pi, compatible with BlueDV (requires USBtoTTL or Bluetooth model). if you want a little processor power install on Pi 3 or Pi4, this is a great little hat for digital voice modes.
  • [Multifunction] Hotspot board saves electricity, High quality TCXO, stable, low BER. Support MMDVM mode DMR / YSF / P25 / NXDN / DSTAR / POCSAG. Support online upgrade, User-friendly OLED and Nextion special design location, reserved for additional installation of Bluetooth modules

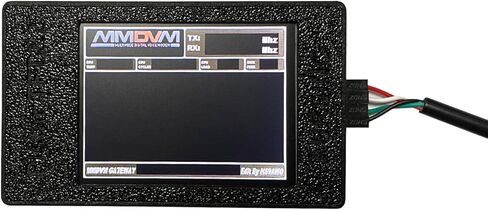

  • TFT Display Size: 2.2inch(1.89 x 1.46inch), Unit Size: 75 x 45 x 10mm / 2.95 x 1.77 x 0.39inch, Unit Weight: 31.5g

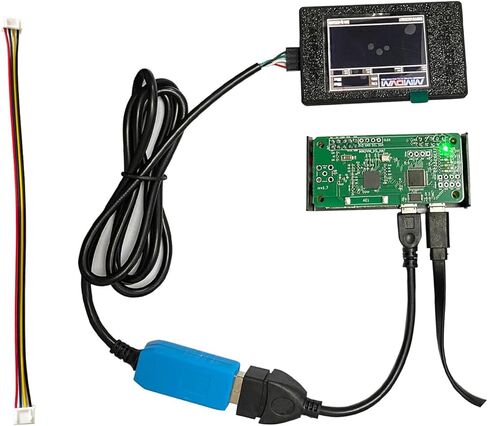

  • Setting: MMDVM Display Type: Nextion, Port: /dev/ttyUSB0, Nextion Layout: ON7LDS L2. For PI-STAR, MMDVM Hotspot Board, USB Port & TTL Connectivity, Ready to Use.

Description

[AURSINC MMDVM Hotspot Board Compatible with P4 settings] since our mmdvm board is defautly setup for Pi-Zero W, Pi 3. and if you do want to connect it with your Pi 4, you could try below methods. PICK ONE. Method 1: Remove the R1 resistance of the hotspot board(single/dual) ; Method 2: Cut off the 2 Raspberry Pi pin headers on the corners of the board ( pick one to operate on your MMDVM board, refer to the product image for the R1 and 2 pin headers locations)

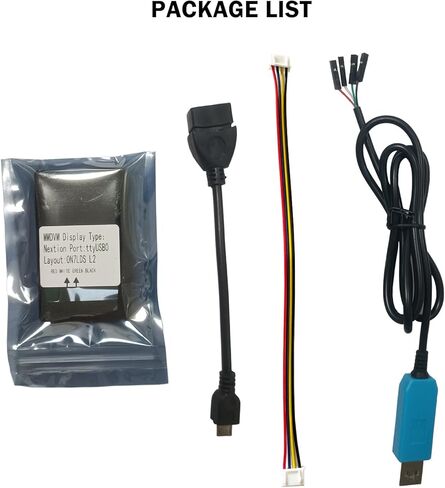

2.2 Inch Color TFT Display Packing List: 1x 2.2 Inch Color TFT Display, 1x USB Adapter Cable; 1x Welding Line
