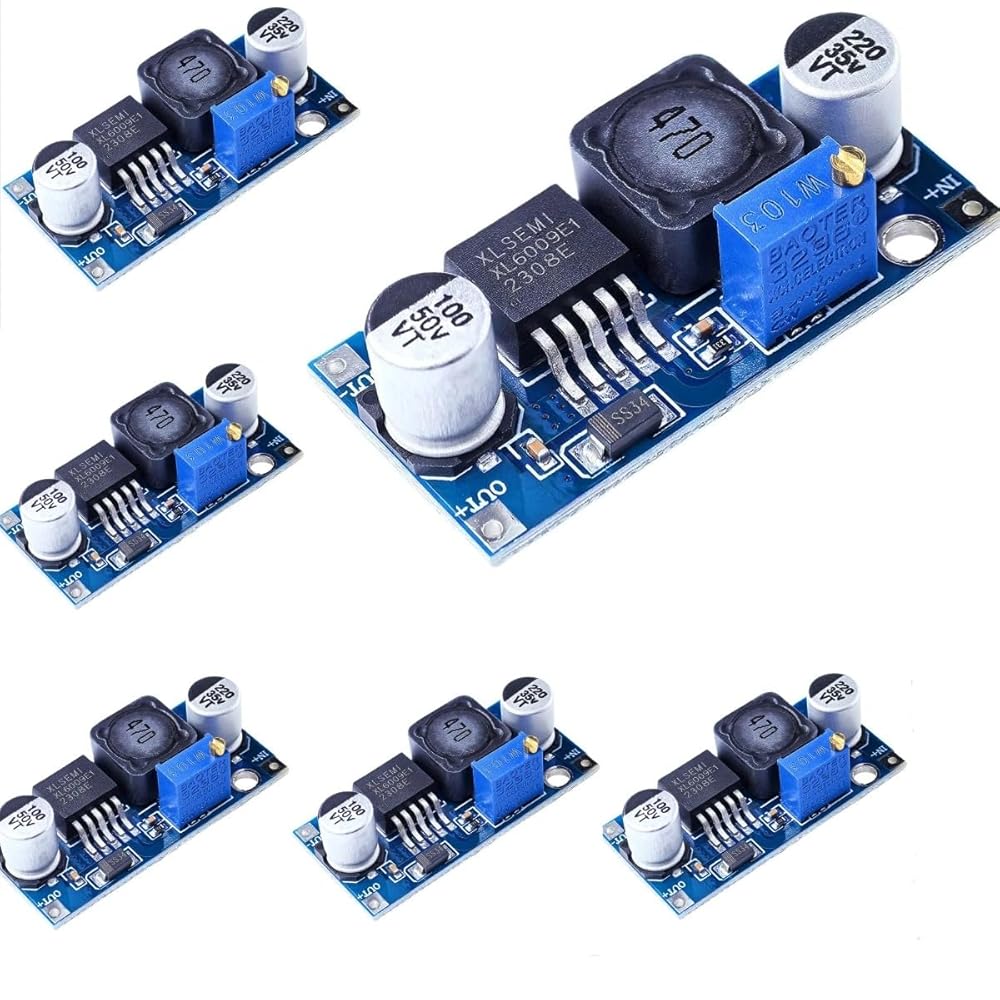

6pcs XL6009 DC-DC Boost Converter Module 4A High Current Output, 3V-32V Input to 5V-35V Output, Asynchronous Rectification, 400KHz Switching Frequency

KWD 4.500
Brand
MicroTunk
– 1 +

Special Features

  • Rectification method: Asynchronous rectification
  • Input range: 3V~32V
  • Output range: 5V~35V
  • Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
  • Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
  • Switching frequency:400KHz
  • Output ripple:50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load regulation:±0.5%
  • Voltage regulation: ±0.5%
  • Working temperature:-40℃~ +85℃
