ESP32-S3 1.43inch AMOLED Display Development Board, 466×466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and Bluetooth 5

KWD 15
Brand
Wonrabai
Weight
91 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

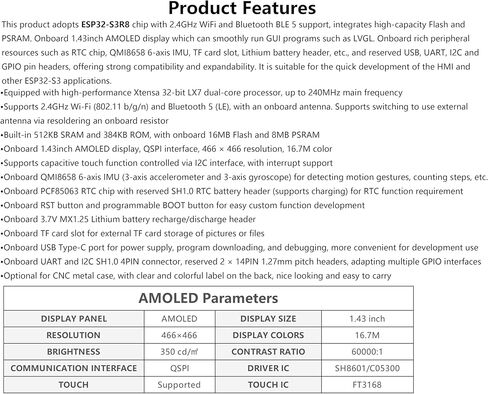

  • ESP32-S3 1.43inch AMOLED Development Board, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.
  • Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.

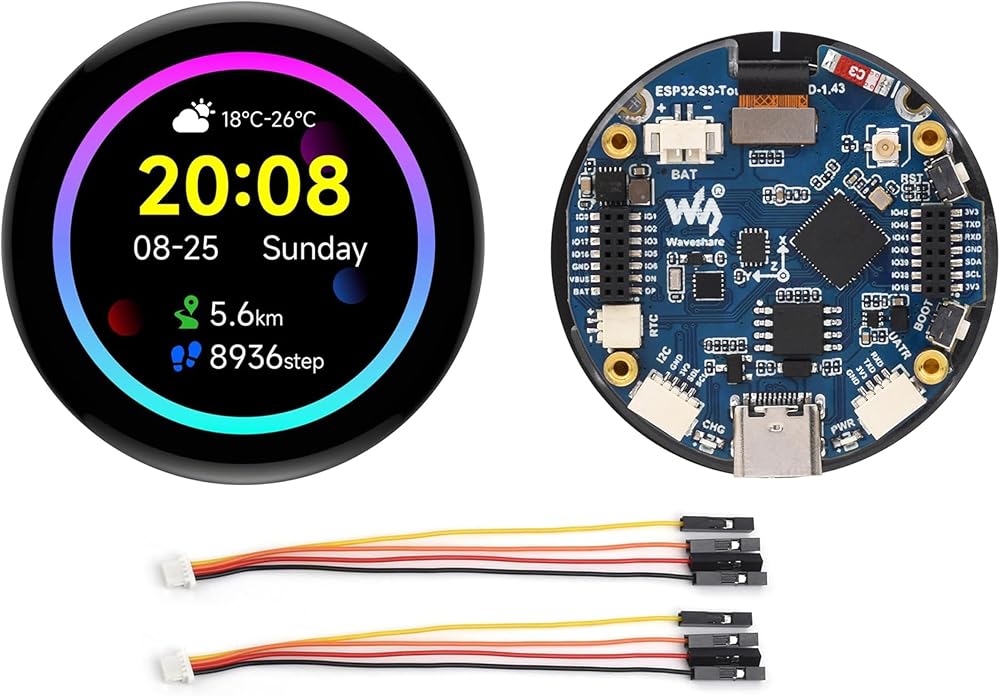

  • Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle. Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.
  • Onboard Multiple Interfaces: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R-T-C chip with reserved SH1.0 R-T-C ba tte -ry header (supports charging) for R-T-C function requirement.
  • Onboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 Li -thi um ba tte -ry recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files.

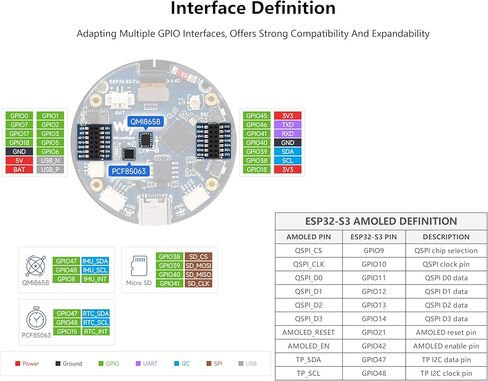

  • Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.
  • Adopts AMOLED screen. The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.

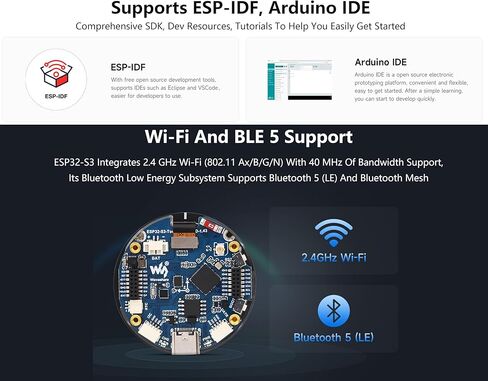

  • Currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. Please check: n9.cl/enjbl
