AT065TN14 AT070TN90 AT070TN92 AT070TN93 AT070TN94 EJ070NA-03A AT080TN64 AT090TN10 AT090TN12(Only some models are listed)
Compatible work with 6.5" 7" 8" 9" 800x480 LCD Panel
Operation Voltage 9~16V DC,It is recommended to use 12 V and 2 (or more) amps power adapter,The connector is 5.5mmx2.1mm. Center is positive
This is a DIY universal board kit that can be configure to match different models of LCD panel
If you have any question,Please contact me, I will reply within 12 hour

وصف

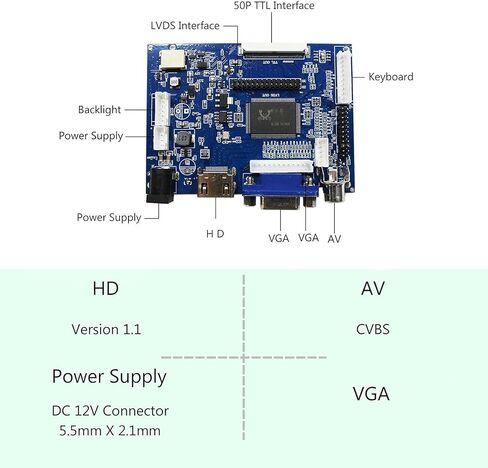

LCD Controller Board:

VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

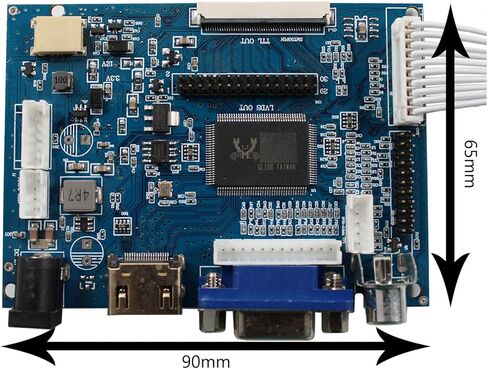

Board Size:91mm x 66mm x 12mm

Compatible Work With:

6.5inch 800*480
AT065TN14
7inch 800*480

AT070TN90 AT070TN92 AT070TN93 AT070TN94 EJ070NA-03A
8inch 800*480
AT080TN64

9inch 800*480
AT090TN10 AT090TN12

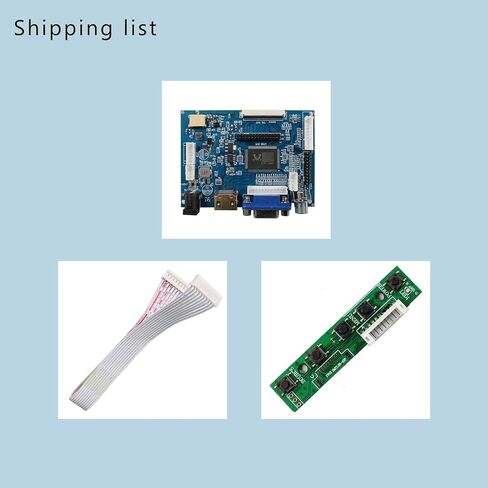

Packing list :

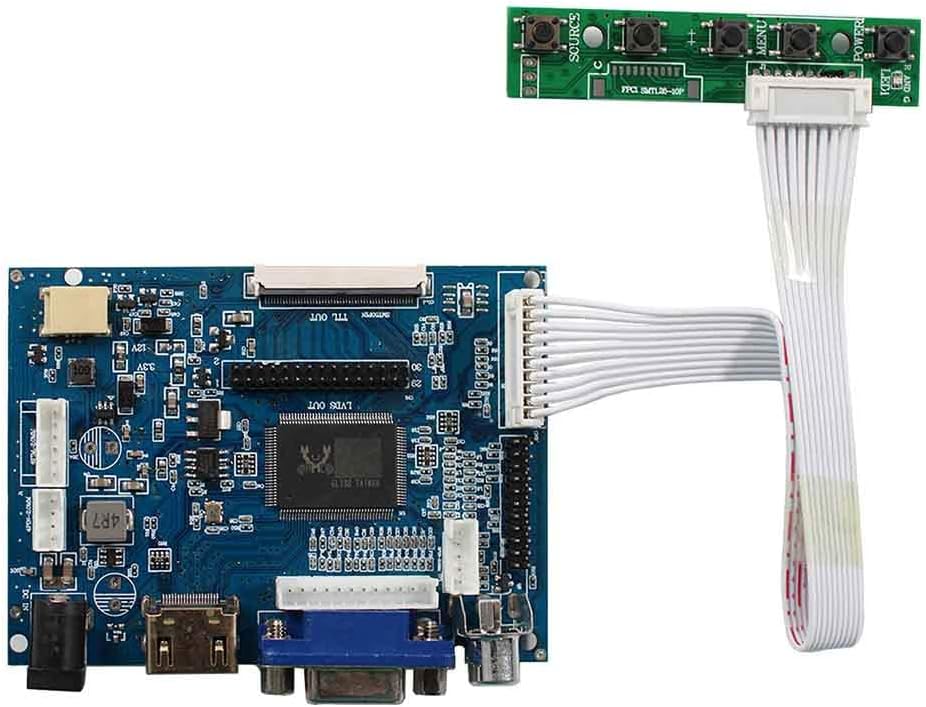

1× HD+VGA+2AV LCD Controller Board
1× Keyboard With Cable
