Features
1. Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom, Quectel, and Fibocom 5G modules

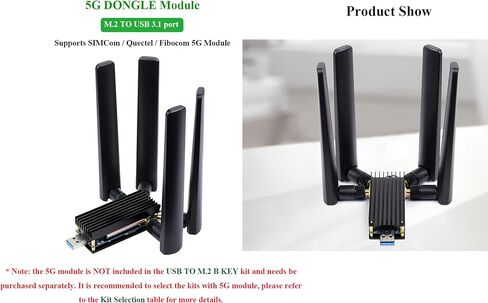

Comes with Aluminum Alloy Heatsink, Effective Heat Dissipation For 5G Module, Protect Your HAT At The Same Time
2. Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules,(Note: the 5G module is NOT included)

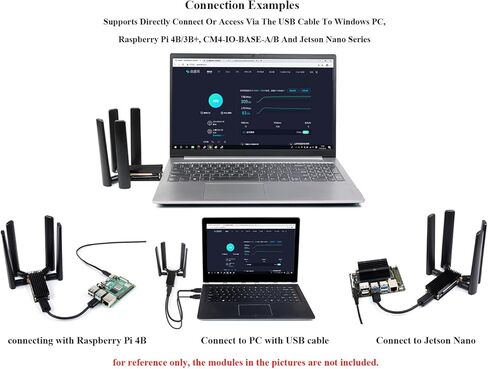

3. USB 3.1 Type A port, Supports directly connect or access via the USB cable to Windows PC, Raspberry Pi 4B/3B+, CM4-IO-BASE-A/B and Jetson Nano series, to enable high speed 5G network
4. Upgrades to a USB3.0 extension cable with an auxiliary power supply port, prevent the power insufficient issue of the USB port when 5G module power consumption is too high, which may affect the networking and speed measurement effect of the module
5. Multi system support, easy to use. Supports Windows/Linux, Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use
6.Onboard SIM card slot for NANO SIM card
7. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
8. PCB ENIG process, reserved multi slots and positioning holes for integration
9. 4x SMA antenna connectors, easy to install the antenna

Provide Online Development Resources /User Manual: bit.ly/4aVhaqb

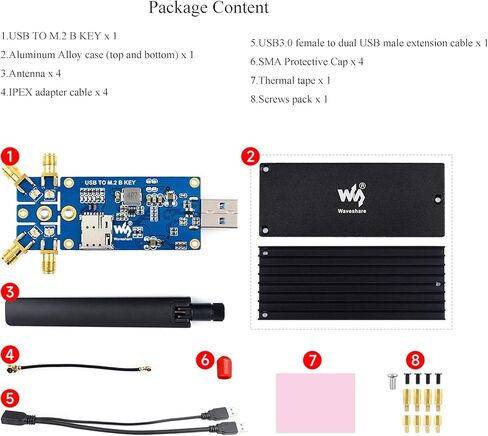

Package Content
USB TO M.2 B KEY x 1
Aluminum Alloy case (top and bottom) x 1
Antenna x 4
IPEX adapter cable x 4
USB3.0 female to dual USB male extension cable x 1
SMA Protective Cap x 4
Thermal tape x 1
Screws pack x 1

Note: the 5G module is NOT included in the USB TO M.2 B KEY kit and needs be purchased separately.
