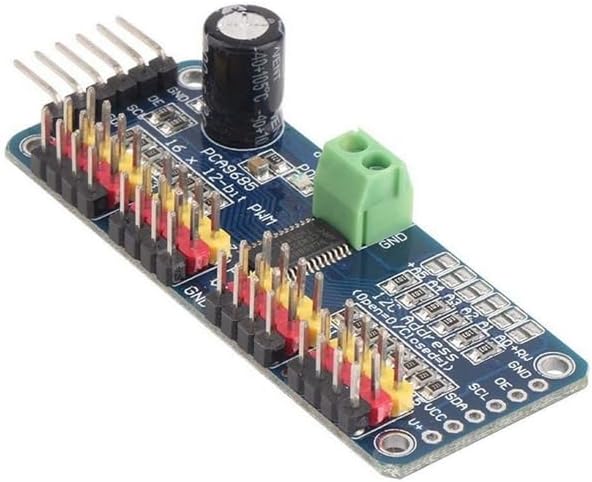

PCA9685 16-القنوات الوحدة النمطية PWM/Servo/Servo محرك أقراص وحدة التحكم روبوت IIC

KWD 3.500
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Frequency: 40-1000Hz;Channel number: 16 channel.;Resolution: 12 bit;Voltage: DC 5-10V
  • Green power indicator lamp, 3 pin connectors in groups of 4, so you can plug in 16 servos at one time(servo motor plug slightly wider than 0.1 inch)
  • Using only two pins, control 16 free-running PWM, so you can wire up to 62 of these on a single I2C bus, a total of 992 outputs
  • 12 bit resolution for each output for servos, that means about 4us resolution at 60Hz update rate
  • PCA9685 IIC module 5V compliant, you can also control it from a 3.3V microcontroller and still safely drive up to 6V outputs
  • PCA9685 contain an I2C communication PWM driver with a built in clock, so you do not need to continuously send it signal tying up your microcontroller

وصف

Features:
You want to make a robot, When we saw this chip, we quickly realized what an excellent add-on this would be.
Using only two pins, control 16 free-running PWM outputs!
I2C input, control 16 PWM output, you can control the 16 way servo motor.
Specifications:
1.Frequency: 40-1000Hz.
2.Channel number: 16 channel.
3.Resolution: 12 bit.
4.Voltage: DC 5-10V
5.Size: 60*25mm
6.Color: blue
7.Net Weight: 12 g
8.Package Included:
1PCS*PCA9685 16 Channel 12-bit PWM/Servo Driver-I2C interface Module For Raspberry Pi Shield Module Servo Shield For Arduno Diy Kit
