DEVMO Digispark Kickstarter Attiny85 USB Development Board Compatible with ar-duino

KWD 4.500

Brand
DEVMO
Weight
14 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • ★Digispark Kickstarter Attiny85 USB Development Board for ar-duino NEW
  • ★Provide battery backup for the continuous timing.
  • ★Footprints and functionally compatible with the DS3231.
  • ★Reset output and input buttons Debounced.
  • ★High-speed (400kHz) I2C serial bus.

Description

Features
Brand new and high quality

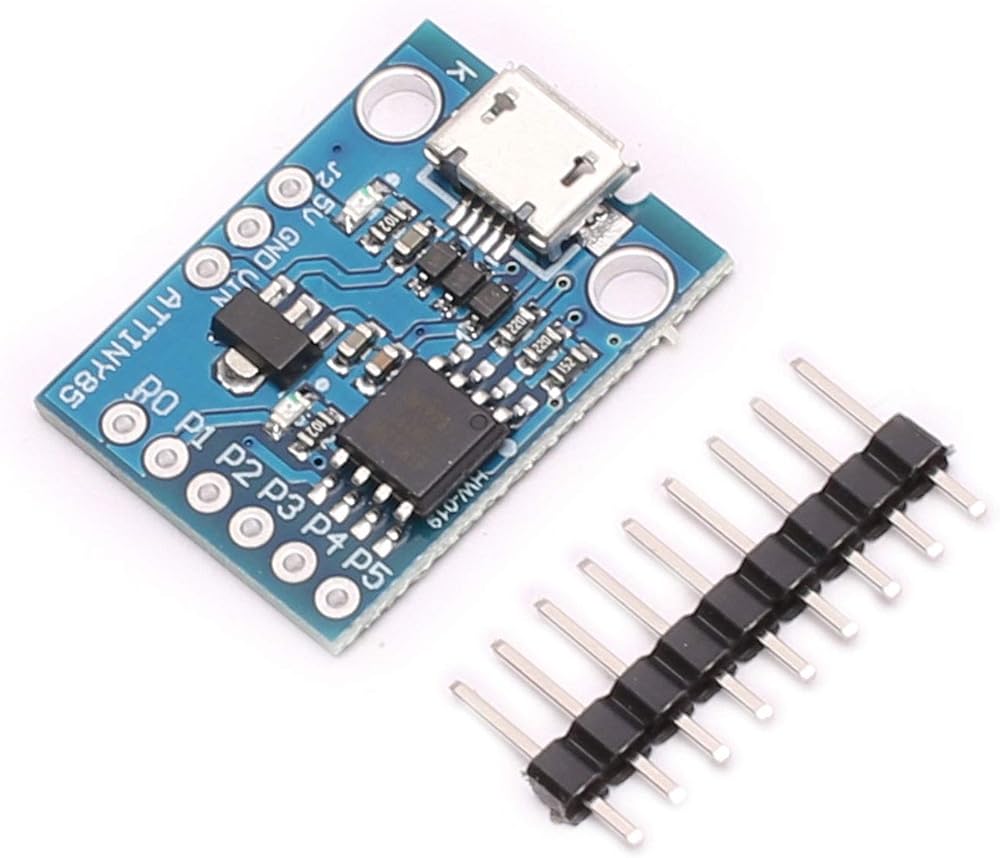

The Digispark is an Attiny85 based microcontroller development board similar to the Ar-duino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Ar-duino IDE the Digispark is a great way to jump into electronics, or perfect for when an Ar-duino is too big or too much.
The Digispark is shipped fully assembled except for the two included and easy to solder headers.
Here are the specs:
Support for the Ar-duino IDE 1.0+ (OSX/Win/Linux)
Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
Built-in USB
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/Status LED
Size:2x1.7cm(approx)
Package Included: 1 x Digispark Kickstarter Attiny85 USB Development Board for Arduin
