RedTagCanada Digispark Kickstarter Compatible General Micro USB Development Board for ATTINY85 for Arduino Description, with Connector pins (2 Pieces USB Development Board)

KWD 8.500

Brand
Generic
Weight
9 g
Color2 Pieces USB Development Board
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Digispark is a tiny, Arduino compatible development board using the ATMEL ATtiny85 microcontroller. It has its own USB bootloader and built in USB capability, allowing you to program it with the Arduino SDK and also use it as native USB device.
  • Support for the Arduino IDE 1.0+
  • Power via USB or External Source - 5V or 7-16V (12v or less recommended) with on-board 500ma 5V regulator.
  • 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
  • I2C and SPI (vis USI), PWM on 3 pins (more possible with Software PWM), ADC on 4 pins.
  • Digispark Kickstarter Compatible Attiny85 USB Development Board for Arduino with connector pins

Description

Description:
The Digispark is a tiny, Arduino compatible development board using the ATMEL ATtiny85 microcontroller. It has its own USB bootloader and built in USB capability, allowing you to program it with the Arduino SDK and also use it as native USB device.
It is similar to the Arduino line, only cheaper, smaller, and a bit less powerful.
With the ability to use the familiar Arduino IDE, the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.
Features:
Support for the Arduino IDE 1.0+ (OSX/Win/Linux).
Power via USB or External Source - 5V or 7-16V (12v or less recommended, automatic selection).
On-board 500ma 5V Regulator.
Built-in USB (and serial debugging).
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
8k Flash Memory (about 6k after bootloader).
I2C and SPI (vis USI).
PWM on 3 pins (more possible with Software PWM).
ADC on 4 pins.
Power LED and Test/Status LED

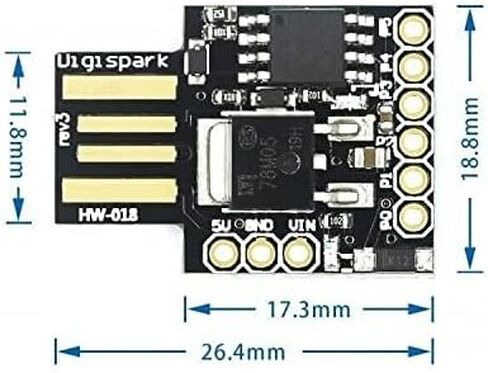

Size: 18.5mm x 26mm including USB connector, 18.5mm x 17mm excluding connector.

Legal Disclaimer:
1- This is not a brand name product, it is a high quality compatible with Arduino products
2- Logos or Text on chips or board color may differ than pictures. Board may or may not come with " Digispark" Text or may have other text on board.
3- Please allow slight dimension difference due to different manual measurement.
