All Female Base are 5.5*2.1mm.
Used for external power source and on-board transformer, it is Universal Laptop NoteBook connectors.

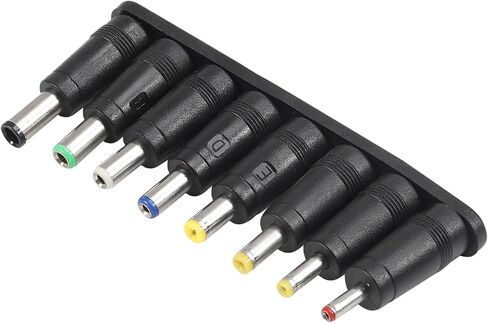

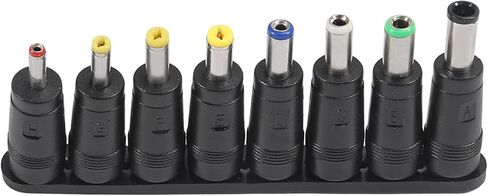

All the order is referenced to picture attached above, following the order from right to the left.
6.0*4mm Core pin - Black
6.3*3.0mm Tuning Fork - Green - for Toshiba, Lenovo
5.5*2.5mm DC - White - for Lenovo, Asus, Acer, MSI, BenQ, Toshiba, IBM, Gateway, Haier
5.5*2.1mm DC - Blue - for Acer, Toshiba, HP
5.5*1.7mm Tuning Fork - Yellow - for Hasee, Acer, Lenovo, Asus, BenQ, Toshiba
5.0*1.1mm Core Pin - Yellow
4.8*1.7mm Tuning Fork - Yellow - for HP Pavilion, Sony, Asus Eee, NEC, Delta, Compaq
4.0*1.7mm Tuning Fork - Yellow - for Asus, BenQ, acer, SonyPSP, HP(mini), GPS Navigator
3.5*1.35mm DC - Red - for Fujitsu, Dell, Sharp
