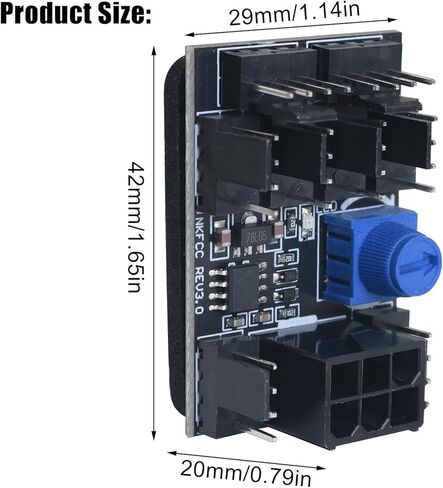

Product size:42x29x20mm/1.65x1.14x0.79in

Weight:12g

Supply voltage:DC12V.

Power supply interface:6pin (2 x 3) interface.

Max current:17A

Number of fan seats:8PCS

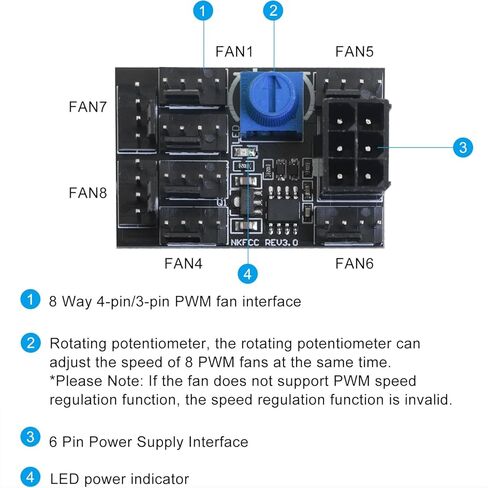

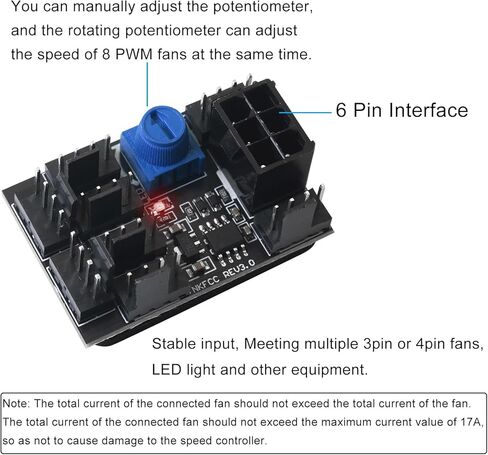

Function:through this hub, the governor can supply power to up to 8 fans, and the rotating potentiometer can adjust the speed of 8 PWM fans at the same time.

(Note:the fan base supports 3pin and 4Pin fans,If the fan does not support PWM speed regulation function, the speed regulation function is invalid. The total current connected to the fan shall not exceed the maximum current value of 17a to avoid damage to the governor) Installation method:the adhesive pad at the bottom of the marshalling governor can be bonded in the chassis for fixation.
