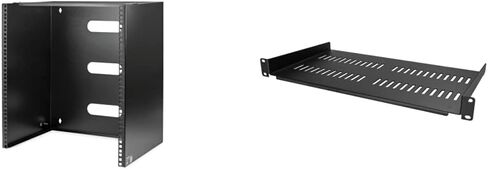

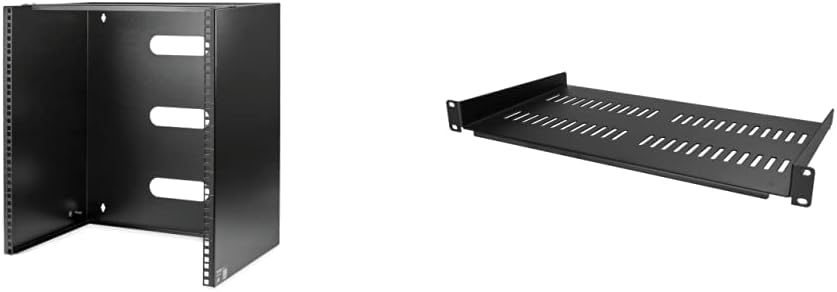

StarTech.com 12U Wall Mount Patch Panel Bracket - 13.75 in. (34.93 cm) Depth - 19'' 125lbs & 1U Server Rack Shelf - Vented Rack Mount Cantilever Tray -50lb/23kg 10'' Deep, Black

KWD 67

1 +

Special Features

  • Product 1: 12U WALL MOUNT RACK: This 19-inch-wide low profile wall mounted rack has a maximum mounting depth of 14 in [35 cm], recommended for networking equipment up to 12in deep, leaving 2in for cable routing; maximum weight capacity of 125lbs [57kg]
  • Product 1: EASY TO INSTALL: The 12U wall mounting patch panel bracket ships fully assembled and comes complete with M6 Screws and M6 Cage Nuts for easier equipment installation, to save you the hassle of sourcing separate mounting hardware
  • Product 1: COLD-ROLLED STEEL CONSTRUCTION: The wall mounting data rack features a solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution & includes wall mounting hardware; installs onto 16" studs with mounting holes
  • Product 1: EASY CABLE MANAGEMENT: Built with efficiency in mind, the small wall mount patch panel bracket has rear cable routing access for easy cable organization in your network closet, server room, wiring closet, classroom
  • Product 2: UNIVERSAL 19'' FIT: This 1U vented server rack mount shelf is designed to fit virtually any 19in server rack and can accommodate an internal depth of 10in (25cm) for your data, IT, networking, or other non-rack mount equipment

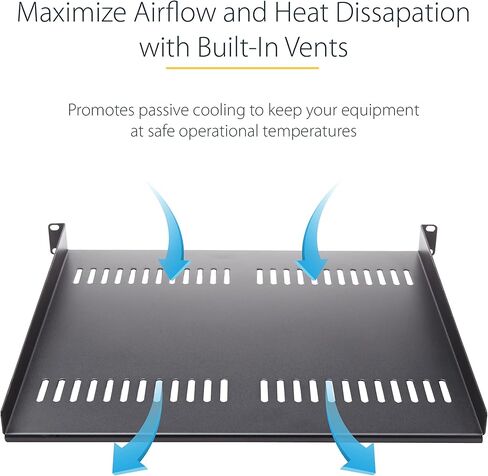

  • Product 2: MAXIMIZE VENTILIATION: The vented shelf plate on the cantilever rack shelf ensures consistent airflow to effectively dissipate heat on servers; it also works great to keep your computer and AV equipment cool in your home, studio, or office space
  • Product 2: HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy front mounted cabinet shelf ensures long term durability and supports a total weight of 44lbs/22kg making it the perfect rack shelf solution for any environment
  • Product 2: VERSATILE FUNCTIONALITY: At 10in deep, this fixed rack mount shelf is designed to work with any 19in cabinet or equipment rack; it provides additional storage space for mission critical hardware, and can even store your tools or audio / video accessories

Description

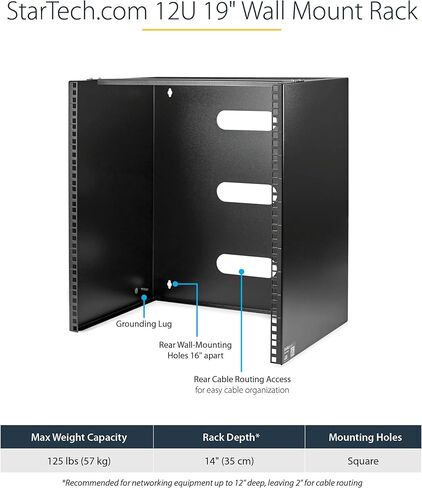

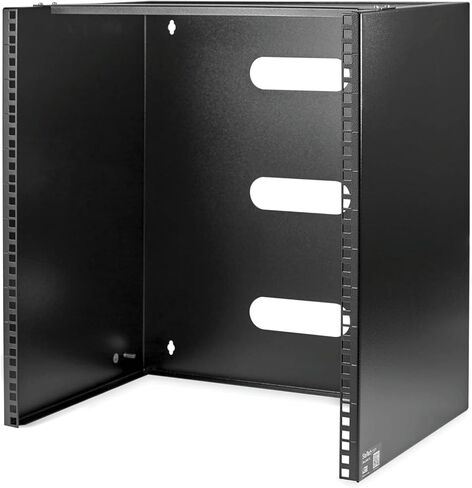

StarTech.com 12U Wall Mount Patch Panel Bracket - 13.75 in. (34.93 cm) Max. Mounting Depth - 19" Patch Panel Rack for Shallow Network Equipment- 125lbs Capacity (WALLMNT12)
The StarTech WALLMNT12 wall-mounting bracket provides 12U of space for mounting shallow rack-mount equipment that is 12" deep. This accessory in black, is made of solid steel and offers hassle-free installation. It optimizes your working space by efficiently mounting your equipment on your wall instead of taking up desk space or other usable surface areas. Wall mounting bracket provides 12U of space for mounting shallow rack-mount equipment that's 12" deep or less to the wall. Dimensions: 21.3"H x 19.7"W x 13.7"D (product), 21.3"H x 20.5"W x 12"D (external), 20.5"H x 17.7"W (internal). Black steel. Frame type: Open frame. Rack type: 2-post. Maximum weight capacity: 125.3 lbs. Improve efficiency in your office or server room by mounting shallow equipment to the wall. Sturdy installation of mission critical equipment with solid steel design. Hassle-free setup with wall mounting holes spaced 16" apart, matching standard dry-wall framework. Rear access panel for cable management. Includes 1 x wall-mount bracket, 36 x M5 cage nuts, 36 x M5 screws with washers, 1 x M6 K-nut, 6 x wood screws, 1 x instruction manual. RoHS compliant. Weight: 2.2 lbs. Comes with lifetime warranty.

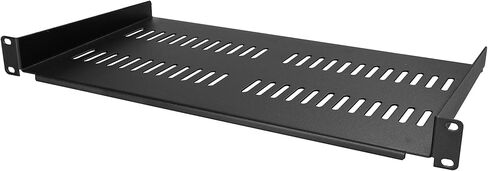

StarTech.com 1U Server Rack Shelf - Universal Vented Rack Mount Cantilever Tray for 19" Network Equipment Rack & Cabinet - Heavy Duty Steel - Weight Capacity 50lb/23kg - 10" Deep, Black (CABSHELFV1U)
The 1U vented server rack mount shelf is 10in deep and lets you add a compact, 1U shelf to almost any standard 19in EIA-310 compliant server rack or cabinet with front mount options. It's versatile design ensures it works great for all your computer, AV, network, studio and data equipment needs; perfect for IT and business professional alike. This vented cantilever tray helps to improve air flow and lower temperatures in the rack, ultimately helping to extend the life of your equipment and keep it safe. Constructed using SPCC commercial grade cold-rolled steel, this durable fixed rack shelf can hold up to 44 lbs (20 kilogram) of equipment - a perfect solution for storing small, non rack mount equipment, tools, peripherals or accessories in your rack or cabinet to keep them readily accessible. The rugged steel construction holds up to even the harshest industrial environments, helping to keep your equipment safe. This 1U vented rack tray shelf is backed by a lifetime warranty and free lifetime technical support.
