3Pcs MCP2515 CAN Bus Module TJA1050 Receiver SPI Module Compatible with Arduino 51 MCU ARM Controller Development Board

KWD 5
Brand
BestParts
Weight
50 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Support CAN V2.0B technical specification, communication rate 1Mb/S.
  • Working current: 5mA (1 microamp standby current. Except the power indicator).Working temperature: industrial grade -40 ° C to 85 ° C.
  • Module 5V DC power supply, SPI interface protocol control, 120 ohm terminating resistor, impedance matching, guaranteed drive capability, long-distance data transmission to prevent signal emissions.
  • 0 to 8-byte data field. With standard frame, expand the frame and remote frame.
  • 120 ohm termination resistors. With impedance matching, ensures the drive capacity, long-distance data transmission against signal radiation.

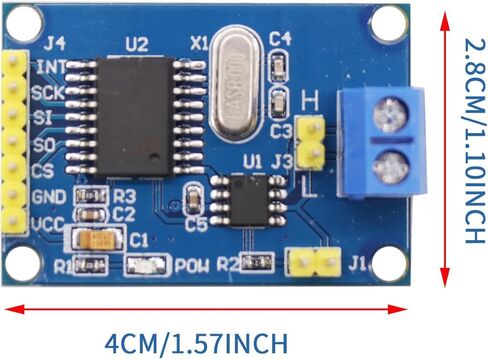

  • Module size: 44mm x 28mm, centering distance of the positioning screw hole: 23mm x 38mm.

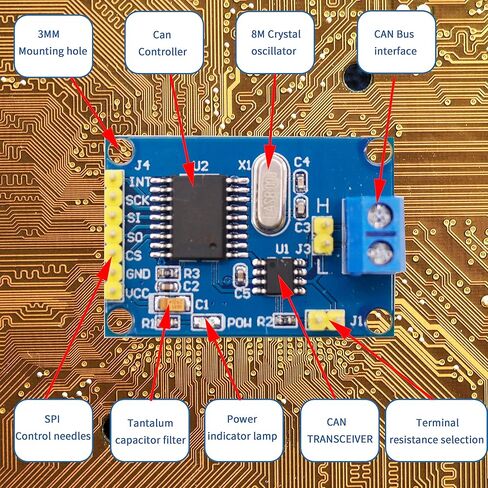

Description

Description:
● Support CAN2.0B protocol
● Use the high-speed CAN transceiver TJA1050
● SPI interface control, CAN meet the needs of an SPI host interface to extend multiple CAN bus interface
● 8MHZ crystal oscillator, typical application
● Add 120 ohm terminal resistor. For impedance matching; Ensure driving ability; Prevent signal reflection during long distance transmission lines.
● Send and receive standard frames, such as the use of serial port software can observe communication data
● On-board independent button, LED indicator, power indicator.
● On-board power outlet pin

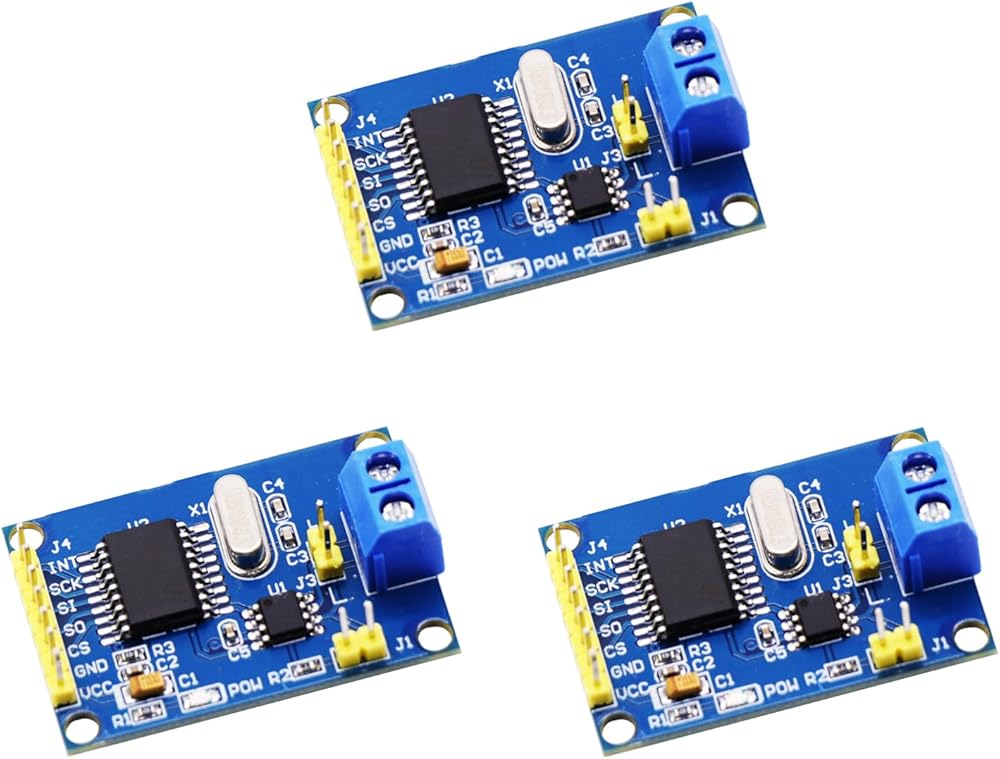

You will receive 3Pcs MCP2515 .
