Packaging form: Pin type 8-pin
Power supply 5V~16V
LED power indicator light, network indicator light
SIM interface self popping Nano card holder
Antenna connector (1st Generation)
UART TTL (default 3.3V, can support 5V); Baud rate (bps): 300, 1200, 2400, 4800, 9600, 115200, 230400, 460800, 921600

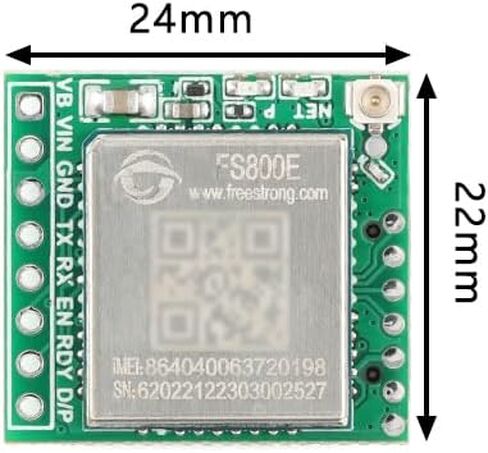

Dimensions (length * width * height) 22.00 * 24.00 * 12.54mm (including pin height)
Weight approximately 3g
Working temperature -35°C~+70°C
Storage temperature -40°C~+85°C
LTE-TDD
Ratio 1: Maximum 6Mbps (DL) Maximum 4Mbps (UL)
Ratio 2: Maximum 8Mbps (DL) Maximum 2Mbps (UL)
LTE-FDD maximum 10Mbps (DL) and maximum 5Mbps (UL)
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B3/B5/B8
LTE-TDD 23dBm+1/-3dB
LTE-FDD 23dBm±2dB
Network Protocol TCP/UDP/HTTP/MQTT
The operating system supports Windows/Linux/Android

VB: When VIN is input, VB outputs 3.8V and can be suspended; When VB is used as input, it is directly connected to the module power supply with an input voltage of 3.3~4.3V
VIN: Power input positive pole, supports 5-16V input.
GND: Negative pole of power input.
TX: The main serial port sending pin has been pulled up to 3.3V.
RX: The main serial port receiving pin has been pulled up to 3.3V
EN: default to EN (core board power enable pin), internally pulled up to VIN
When the EN is low level, the power is turned off (when the external transistor driver module EN is high level, the power is turned off). If not in use, it will be suspended.
RDY: Socket 1 connection status indicator, high level indicates not connected to server, low level indicates connected server
D/P module on/off (automatically powered on by default), can be suspended when not in use
