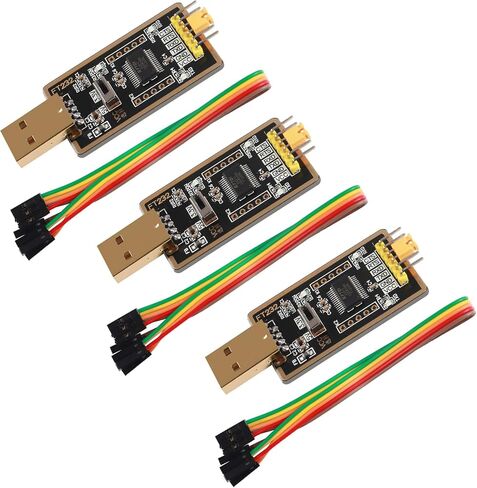

3pcs FT232RL USB to TTL Adapter for Development Projects, USB to Serial Converter Module with Genuine FTDI USB UART Compatible with Windows 7/8/10/XP,Linux, Mac OS (3)

KWD 8.500
Brand
ATNSINC
Weight
20 g
– 1 +

Special Features

  • The converter built-in a new and original FTDI IC device ‘FT232RL', which handles all the USB signalling and protocols. It is convenient there is a physical switch on the board to adjust between 3.3v & 5v. Simple to use, plug and play on laptop.the board draws power directly from your PC/laptop via the USB connection, no need for an external power adapter.

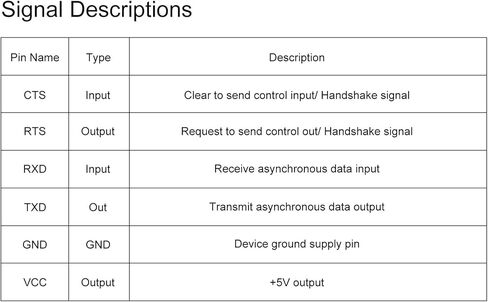

  • Provides access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC and GND connections; POW(power), There are RXD/TXD transceiver communication LEDs to indicate transmission and reception of data.
  • OS compatibility:Compatible with Windows 10 32,64-bit; Windows 8/8.1 32,64-bit; Windows 7 32,64-bit; Windows Vista and Vista 64-bit; Windows XP and XP 64-bit;Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2;Windows XP Embedded;Windows CE 4.2, 5.0 and 6.0;Mac OS 8/9, X and above; Linux 2.4 and above; Android (J2xx). But NOT compatible with Chrome OS.

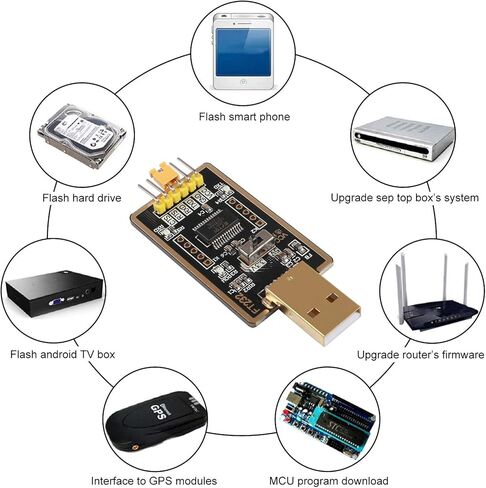

  • Applications: USB to RS232/RS422/RS485 converters, Support EEPROM, Vendor ID re-write, unbrick routers and Mprog3.5, interface to GPS modules,MCU program download, flash firmware on hard drive, update transmitter, can work with microcontrollers or other programmable devices, great for development projects, upgrade set top box's system etc.

Description

Great for Programming projects:
The USB to serial adapter is seen as a COM port by your computer/laptop, and is available for use by any program that accesses COM ports.
It works great for programming microcontrollers such as for arduino, for Raspberry Pi, ESP8266, Bareduino, micro minimOSD, and Atmel Xmega
Xplained, Atmega328 mini pro, or any other that can be programmed via serial.

Drivers download:
https://www.ftdichip.com/Drivers/VCP.htm
Installation Guides:
If you need further support about how to pick up and install drivers, please goes to https://www.ftdichip.com/Support/Documents/InstallGuides.htm

FTDI devices compatibe with following operating systems:
Windows 10 32,64-bit
Windows 8/8.1 32,64-bit
Windows 7 32,64-bit
Windows Vista and Vista 64-bit
Windows XP and XP 64-bit
Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Mac OS 8/9, X and above
Linux 2.4 and above
Android (J2xx)

Product Includes:
1 x USB to TTL Module
1 x jumper
