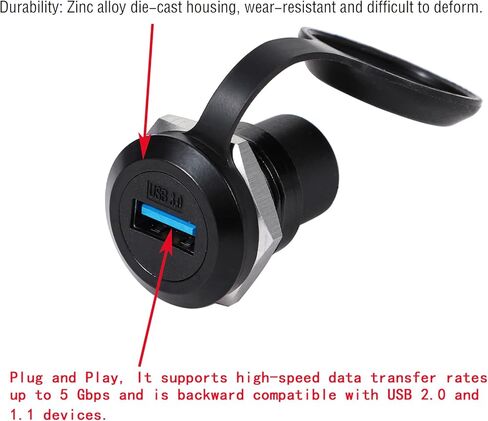

The USB3.0 panel mount connector is a type of USB port that can be mounted onto a panel or enclosure, providing easy access for connecting USB devices. It supports high-speed data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and 1.1 devices. Technical Specifications:
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: USB3.0
Transmission speed: up to 5.0Gbps
Electrical parameters:
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: ＞500MΩ
Dielectric strength: DC1000V
Contact resistance: ＜10mΩ
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint

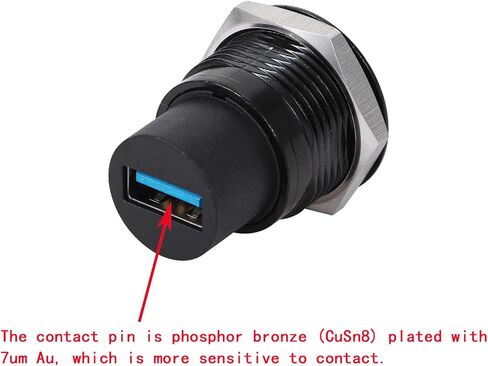

Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times

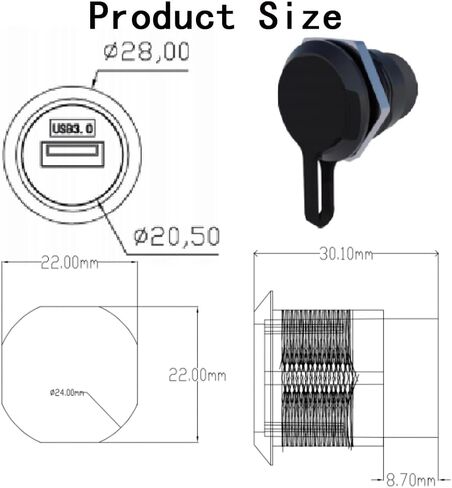

Installation panel thickness: min 2.0mm-max 10mm
Base shape: O type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
5 x Panel Mounting USB3.0 Waterproof Connector
