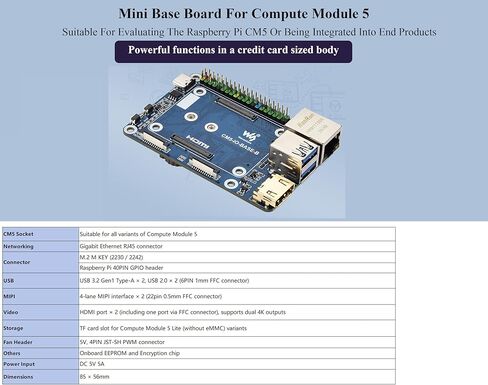

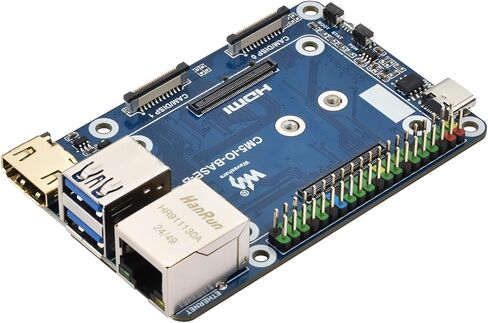

Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

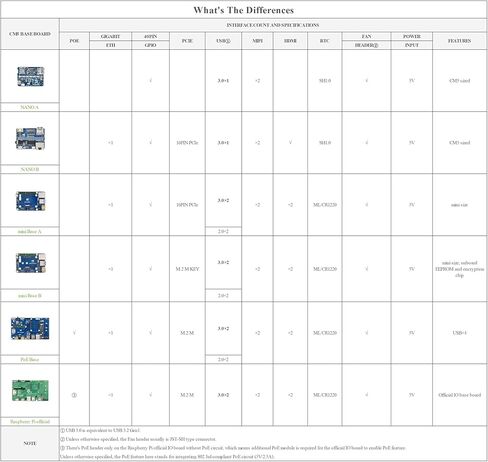

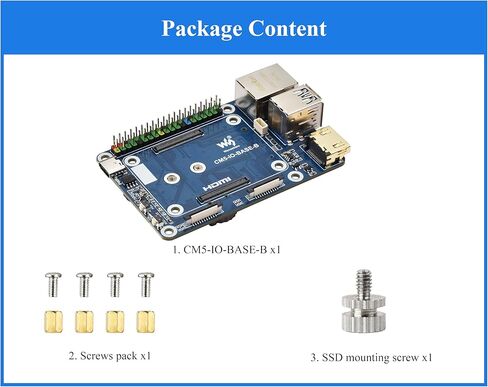

Version Comparison: This is CM5-IO-BASE-B Version. It features EEPROM and encryption chip and M.2 M KEY PCIe, which is different from CM5-IO-BASE-A Version.

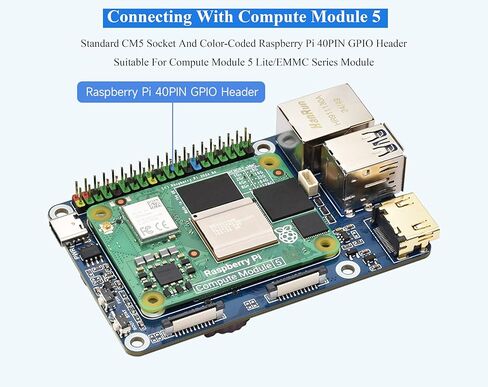

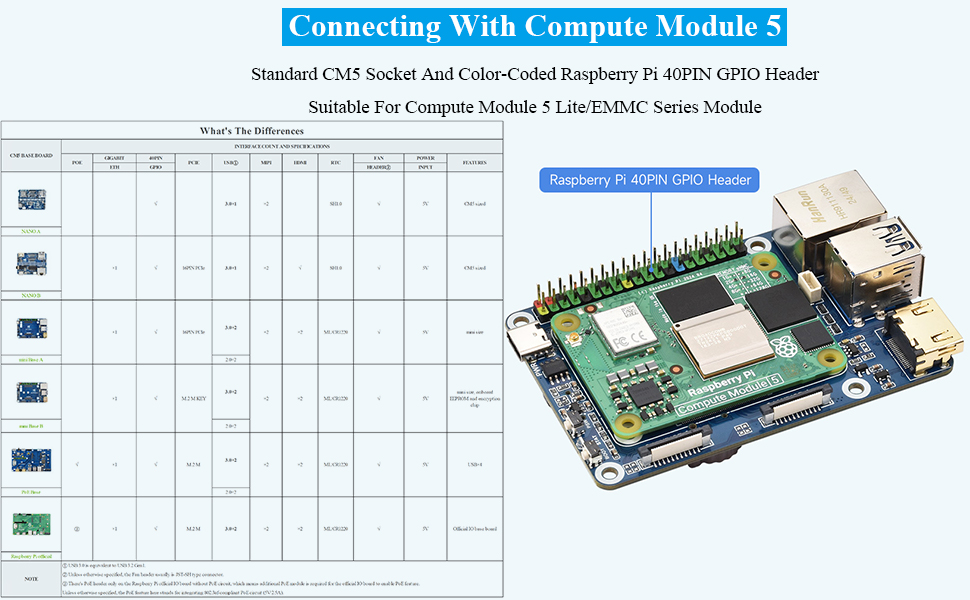

for all variants of Compute Module 5: with standard CM5 socket and color-coded RPi 40PIN GPIO header, compatible with Compute Module 5 Lite/eMMC Series. Suitable for evaluating CM5 or being integrated into end products.

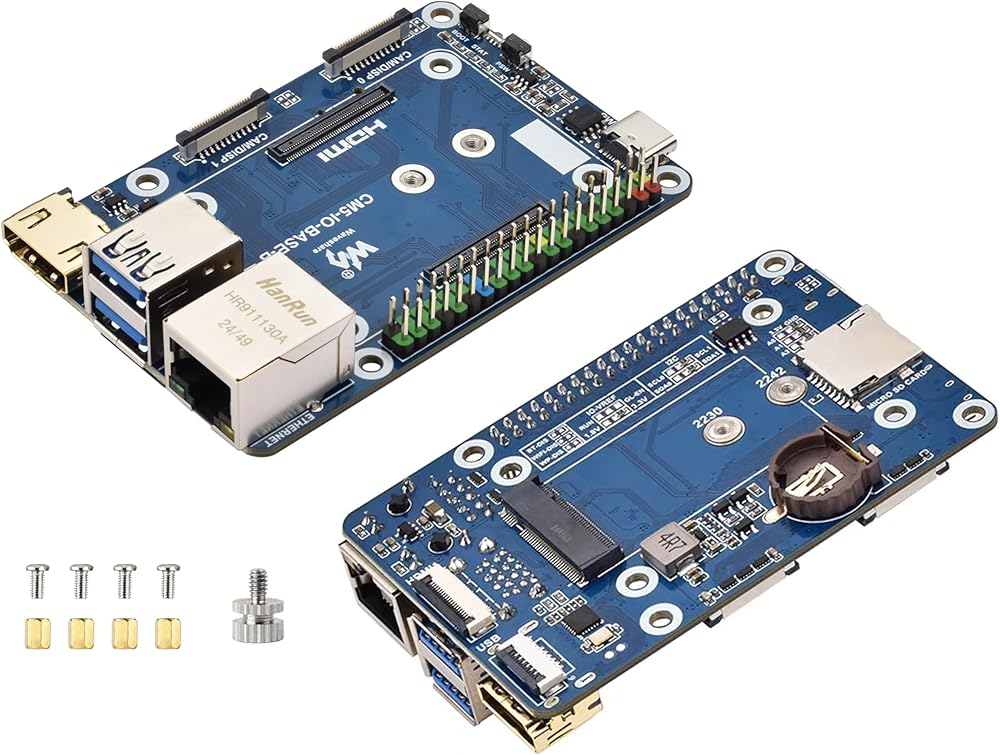

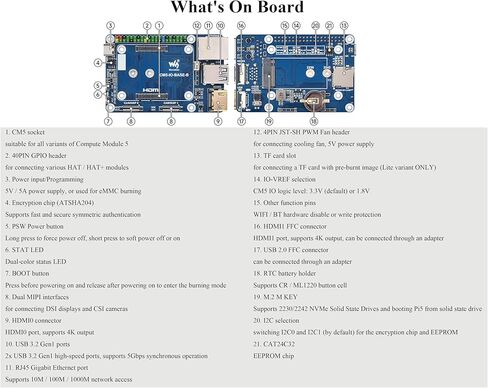

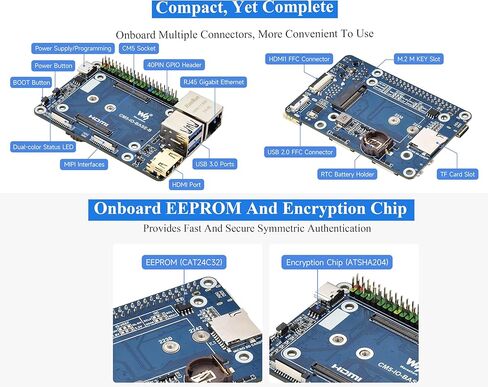

Onboard Multiple Connectors: Including M.2 M KEY (2230 / 2242) PCIe/ Dual MIPI/Dual HDMI/USB 3.2/USB 2.0 FFC/ RJ45 Gigabit Ethernet Interface, etc. More convenient to use.
GPIO and PCIe Connector: Equipped with Color-Coded 40PIN GPIO header, for connecting various HAT / HAT+ modules. And it equips with M.2 M KEY, which supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive.
4K Video Output and Dual HDMI Port: One is HDMI0 port, supports 4K output. The other is HDMI1 FFC connector, supports 4K output too, which can be connected through an adapter.
Rich USB Interfaces: Onboard with Dual USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation. And onboard with USB 2.0 ports via a 6-pin FFC connector.
Dual MIPI Interfaces and Fan Header: Onboard with Dual MIPI interfaces for connecting DSI displays and CSI cameras. Fan Header and Power Input: 5V, 4PIN JST-SH PWM connector. Power Input is DC 5V 5A.
Comes with relevant Resources /Tutorials/ Precautions to help you get started quickly: bit.ly/4j8RH0V
