Central(Master) + Peripheral(Slave) Bluetooth Long Range at Command Bluetooth Module Demo Kit BT5.2 & BT5 FCC IC CE Pre-Certified

KWD 8
Brand
Raytac
Weight
46 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Raytac AT Command Firmware Pre-Loaded Module Development Kit
  • Supports BT5.2/ BT5 Long Range Feature, Data rate: 2M / 1M / 125Kbps
  • Supports 2 roles in 1, either Central/Master or Peripheral/Slave role
  • Supports USB / UART Interface, Data payload up to maximum 244 bytes
  • BT5.1 & BT5 Qualified; FCC (USA) / IC (Canada) / CE (EU) / Telec (Japan) / SRRC (China) / KC (Korea) / NCC (Taiwan) / RCM (ANZ) / WPC(India) Pre-Certified

Description

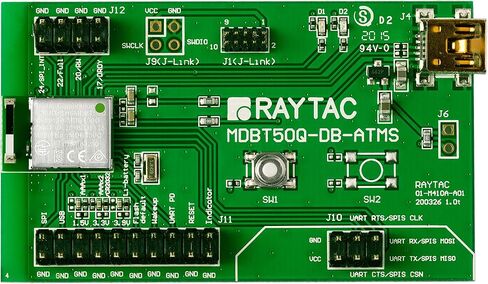

Raytac Central/Master + Peripheral/Slave AT Command module demo board
Supports Central/Master or Peripheral/Slave in same board
A recommended 3rd-party module by Nordic Semiconductor.
Built in Raytac Module MDBT50Q-ATMS / Chip Antenna
Compact size with 10.5 x 15.5 x 2.2 mm (Module)
Supports BT5.1/ BT5 Long Range Feature
Data rate: 2M / 1M / 125Kbps
Supports UART / USB Interface
BT5.2 & BT5.1 & BT5 Bluetooth Specification Certified
FCC/IC/CE/Telec/KC/SRRC/NCC/RCM/WPC Pre-certified Module.
