Features:
Coaxial connectors have a threaded structure, which makes them easy to install, disassemble, and replace.
Brass Construction and nickel plating, the pins are Copper-Gold plating, low signal loss. 50 ohm impedance, BNC Female end is Outside threads and hole.
It can join two BNC male/female cables together to make a longer cable and BNC Adapters Compact design and easy to install, very convenient.
Used for RF, Microwave Applications, Lighting, Security Cameras, Extension cable, Coaxial cable, CCTV, Wifi Radios, Telecom, Antenna, Digital Communication System, Broadcast, Wireless devices, LMR and so on.
Coaxial connectors are made of metal materials, which provide good durability and corrosion resistance.
It can be found in home entertainment systems, connecting audio and video components for a variety of devices.
Employed in satellite television installations to connect satellite dishes to receivers, enabling the transmission of television signals.

Specifications:
Materials: brass & nickel plated
Impedance: 50 ohm, Low-loss
Working Voltage: 1000V r.m.s at sea level
Withstanding Voltage: 2500V r.m.s at sea level
Insulation resistance: ≥5000MΩ
Center Conductor retention force: ≥0.56N
Durability(mating): ≥500times(cycles)
Insulators: PTFE
VSWR: ≤1.15
Temperature Range: -40~+85°C
Average power: 3KW max

Package Content:

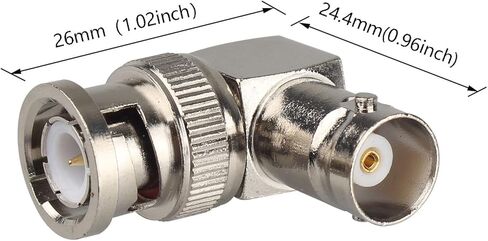

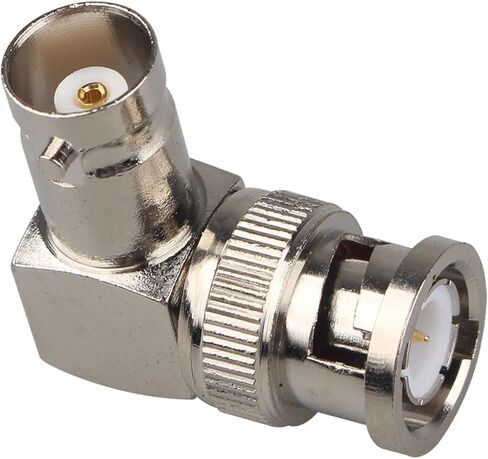

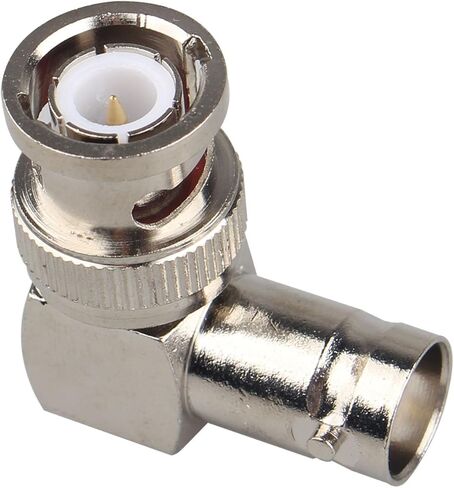

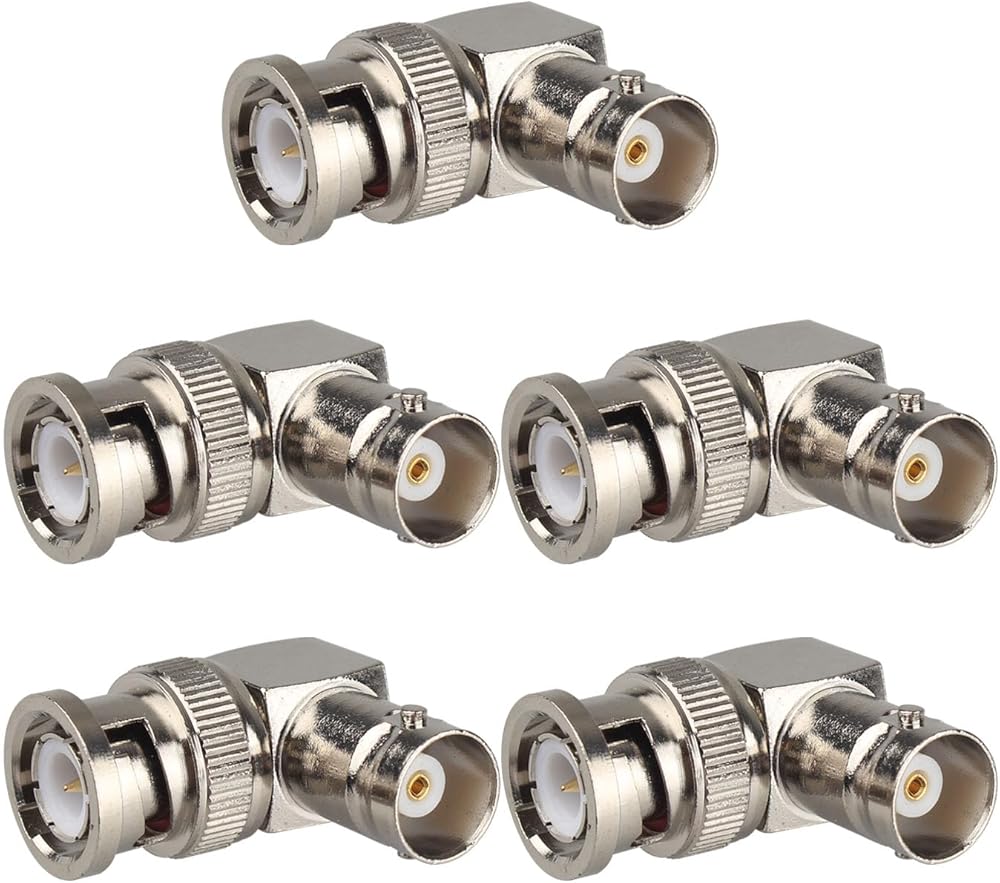

5 x BNC Male to BNC Female Adapter
