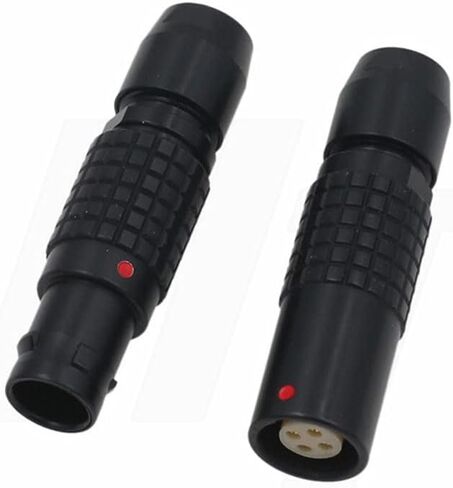

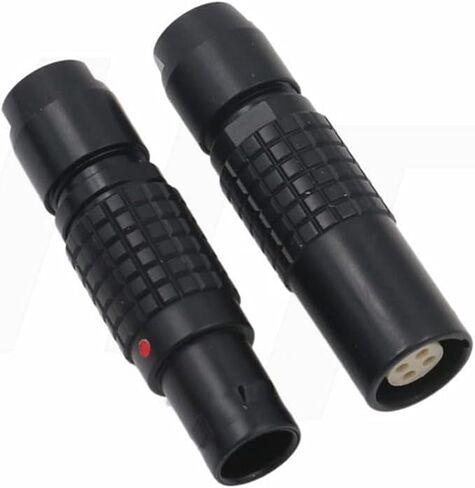

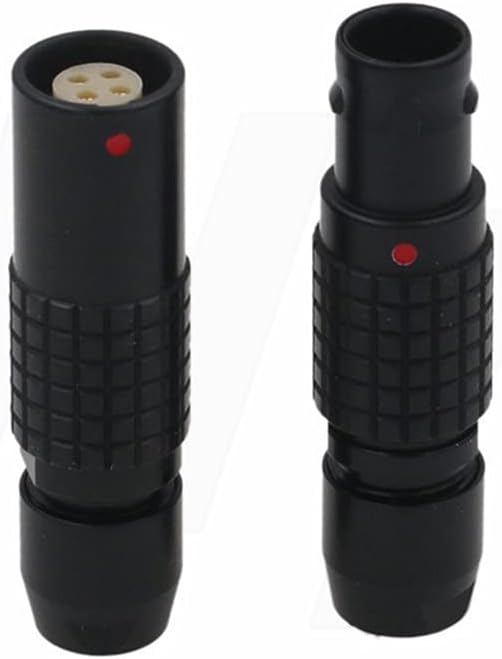

Black 1B FGG PHG 304 4 Pin Connector Male Female Circular Push Pull Free Socket and Cable Plug Compatible for Lemo (4-pin, Black)

KWD 13
Brand
HangTon
Weight
100 g
ColorBlack
Length4-pin
– 1 +

Special Features

  • Black 4 pin male female connector, compatible for 1B.PHG.304 and 1B.FGG.304
  • Connector contact diameter 0.9mm. Cable wire size 22AWG max. Rated current 10A
  • Cable collet size default is 5mm, if you need other sizes, please message me before order(if your cable wire diameter is too small, the collet can't grasp the cable tightly)
  • Circular aviation push-pull self-locking connector. Quick connect, female contacts, cable solder connector
  • Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance

Description

1B FGG PHG connectors.
Number of Contacts: 2 3 4 5 6 7 8 10 12 14 16
Wire diameter max: 2-3pin: 20AWG; 4-8pole: 22AWG; 10-16pin: 28AWG
Cable Outer Diameter Range: 3mm-7mm
Protection Rating: IP50
Shell Material: Brass chrome plated
Contact Material: Brass gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125℃

We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
