PICO-8SEG-4B-LED, Red Digital Tube Display Module,74HC595 Driver Chip,5 Pin 4-Digit 8-Segment Display,Compatible with SPI Interface, for Raspberry Pi Pico Expansion Board

KWD 3
Brand
xicoolee
Weight
50 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 1.Reserved control interface (5 Pin 2.54mm spacing pin pad)
  • 2.4-Digit 8-Segment Display Module For Raspberry Pi Pico expansion board
  • 3.The led display module is Compatible with SPI interface and easy to drive
  • 4.74HC595 driver chip,the 74HC595 is an 8-bit serial input/serial or parallel output shift register with a memory register and a three-state output
  • 5.Provides demo codes for Raspberry Pi Pico based C and Python

Description

Overview：

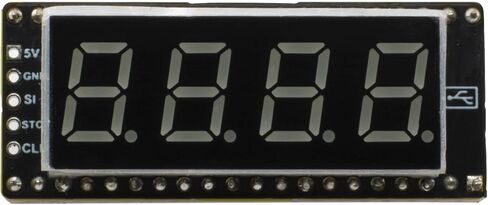

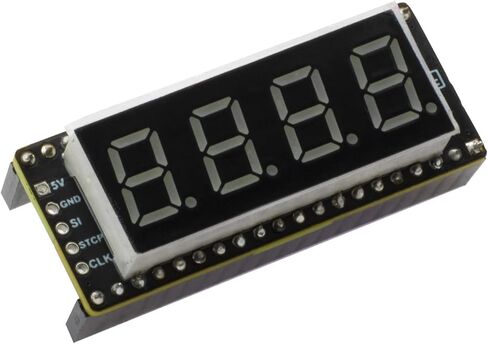

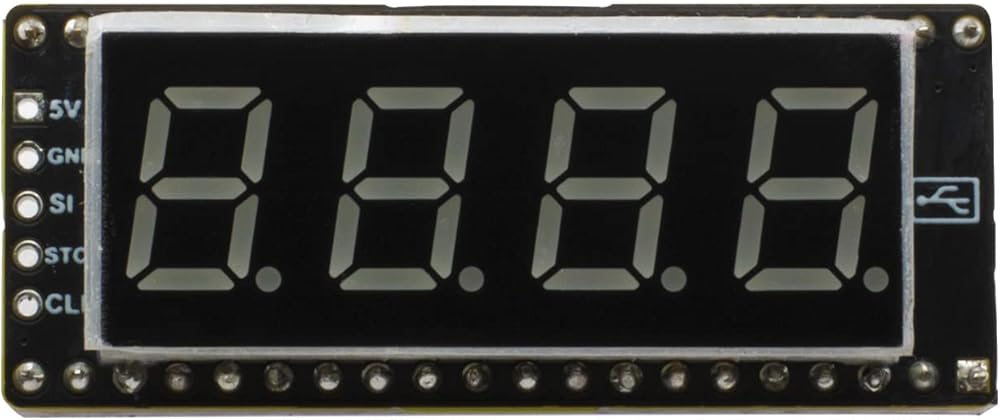

This product is an 4-Digit 8-Segment digital tube, the interface is compatible with SPI,
and the on-board socket connector for Raspberry Pi Pico, users can directly insert into it;
At the same time, 5Pin 2.54mm pitch pin header pads are reserved to facilitate users to access other development boards.
We provide C and python demo codes for Raspberry Pi Pico.

Specifications:

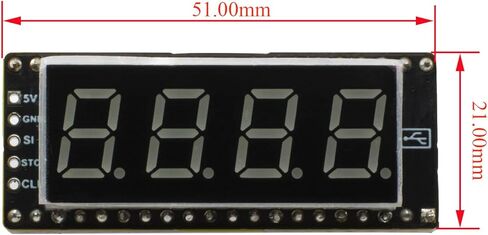

Size:51mm(length)*21mm(width)
Digital tube size:0.4 inch
Digital tube specification:8 segments 4 bits red
Digital tube polarity:common cathode

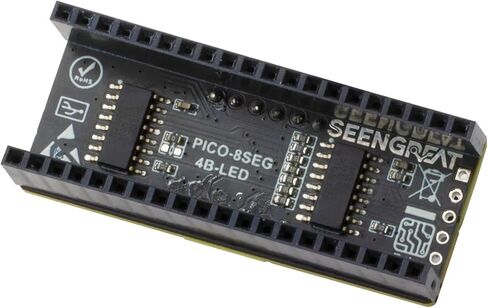

Control chip:74HC595
Signal interface:Compatible with SPI
Supply voltage:5V

Package contents:
1.Digital Tube Display Module×1

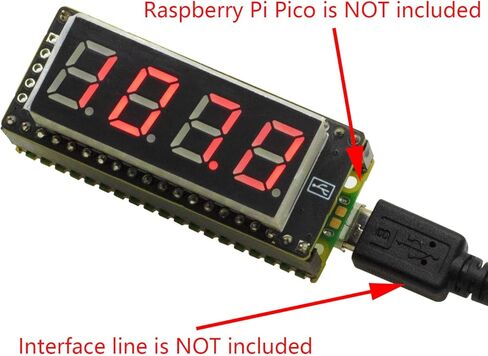

Note:
1. For Raspberry Pi Pico is NOT included
2.Interface line is NOT included
