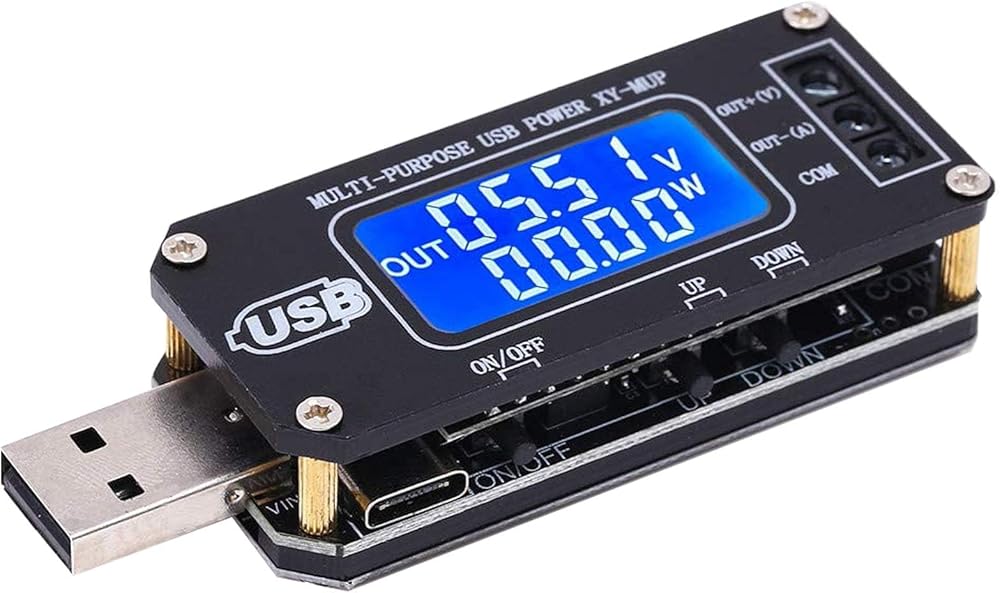

DC-DC CNC USB Boost/Buck Power Regulator Module, converting from 3.5V-12V to 1.0V-24V with 2-3W Power,an Adjustable Boost Voltage Converter with Digital Display Voltmeter.

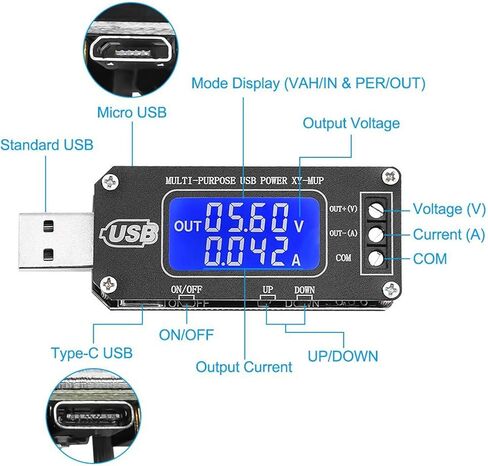

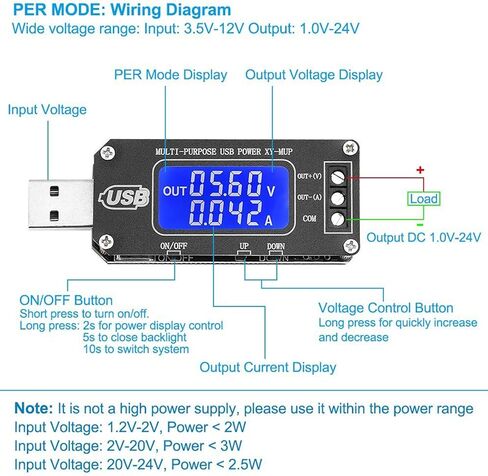

Power Supply System (PER) There are 3 input interfaces: USB, micro USB, and Type-C. When inputting through any interface, under the Power Supply System (PER), you can output an adjustable voltage ranging from 1.0V to 24V with a power of 2 - 3W. Note: This is a low-power supply, do not exceed the maximum output power.

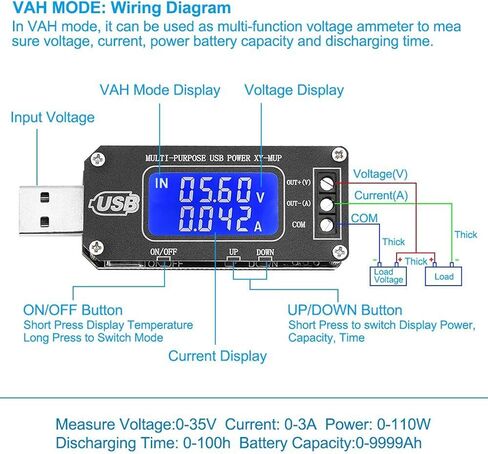

Multimeter System (VA) The CNC USB power regulation module can measure voltage, current, power, capacity, and time like a multimeter. It can also test the current ambient temperature within the range of -20°C to 70°C.
Multiple Protection Functions There is an under-voltage protection (LVP) when the voltage is 0.8V; an over-current protection (OCP) when the input current is 2A; and an over-power protection (OPP) when over-power is used. After protection, the output will be automatically turned off, the LCD backlight will flash, and the corresponding protection function (LVP, OCP, OPP) will be displayed.

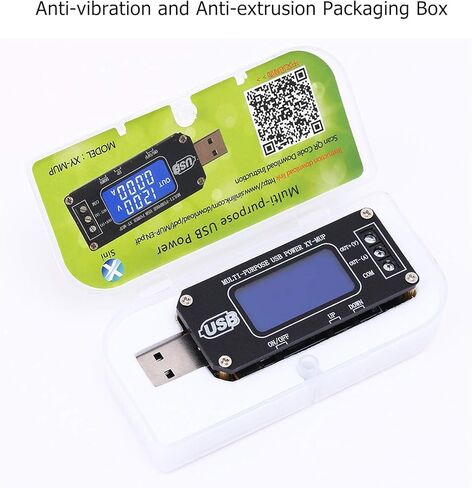

Small Size and Portability With a small dimension of 78 * 28 * 17 mm and anti-crush packaging, it is very suitable for technical engineers to carry during business trips and maintenance.
Applications It can measure voltage and current like a multimeter and also test power, capacity, time, and temperature. For more details and instructions, please read the user manual!!!
