12V Power Distribution Block 150A Bus Bar 4 x 5/16" (M8) Studs Terminal for Automotive Marine Battery Terminals Copper Power Distribution Connecting Blocks with Cover

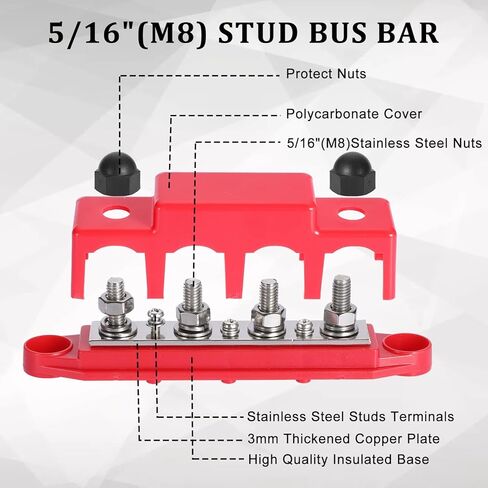

Material: The 5/16" Stud Bus Bar is composed of a 3mm thicker copper base plate and stainless steel screw terminals, ensuring rust resistance, safety, and durability with exceptional high-temperature tolerance. The protective cover and base are crafted from high-quality plastic, offering excellent insulation and strength
Product Parameters: The battery distribution block rated 150A when work in 12V circuit, and the battery terminal block can handle Max 48V

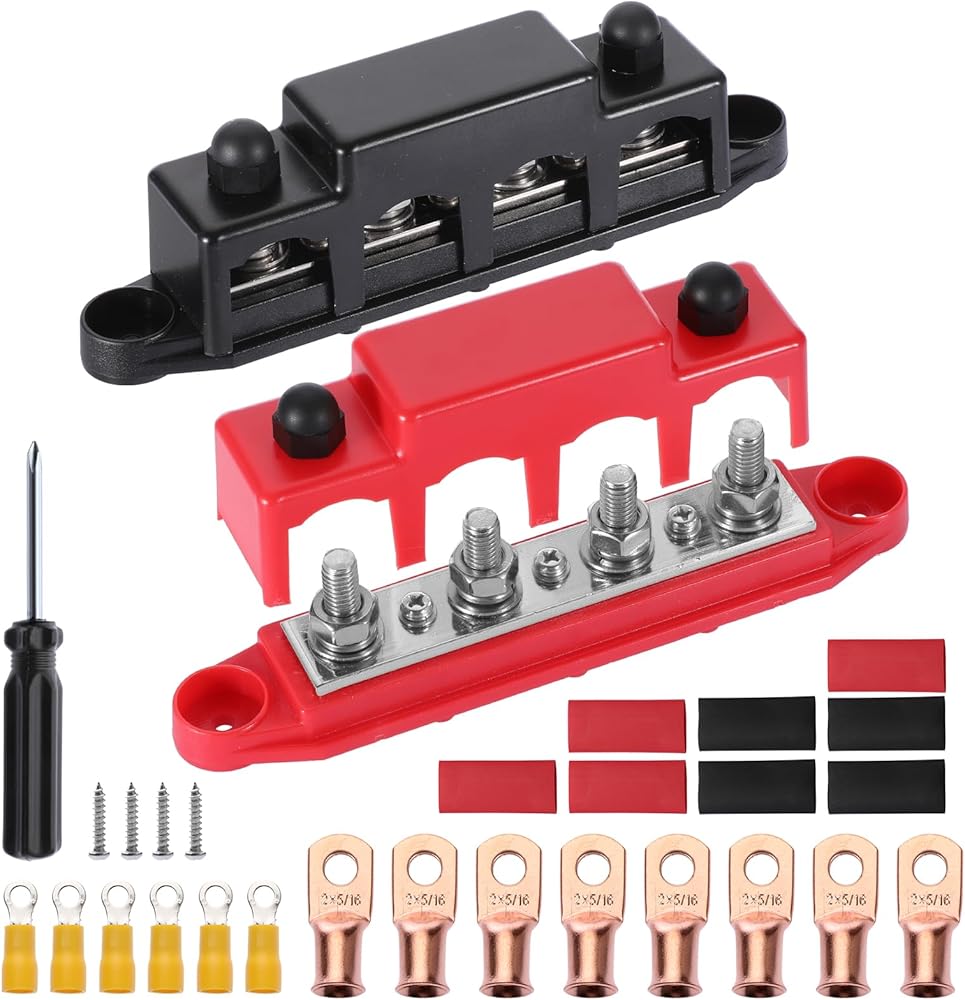

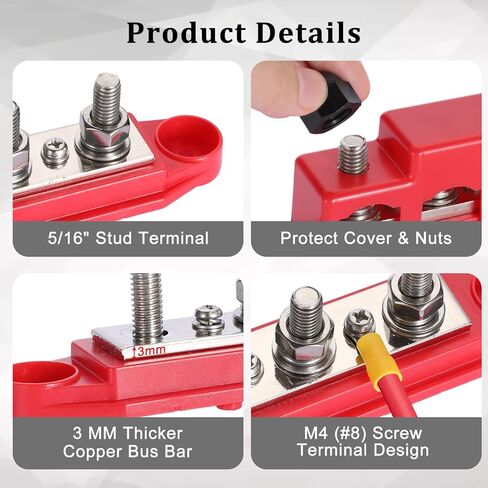

5/16" Stud Terminal: 12 - 48V bus bar with 4 x 5/16" studs terminal and 3 x #8 screw terminals which can accept different sizes terminal connectors and wires. Package Included: 1 Pair Power Distribution Block(red & black), 1 x Screwdriver, 4 x Mounting Screws, 8 x Copper Lugs, 8 x Heat Shrink Tubes, 6 x Insulated Terminals

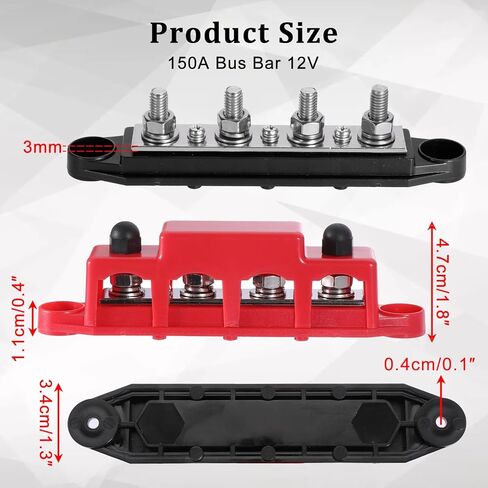

Product Size: The overall dimensions are approximately 6.5" L x 1.33" W x 1.8" H, featuring a 3 mm thicker copper plate and 5/16”(M8)stud terminals. Ideal for electrical equipment and circuit connection requirements, it offers stable electrical connection performance and simplifies the management and maintenance of wires
Wide Application: 12 volt battery distribution block equipped with a protective cover and nuts, keeps circuits wired neatly and prevents short circuits or touching caused by cluttered wiring harnesses. Widely used in solar energy systems, automobiles, trucks, boats, Marine, Yachts
