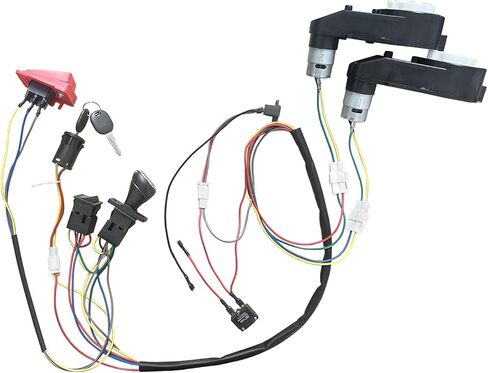

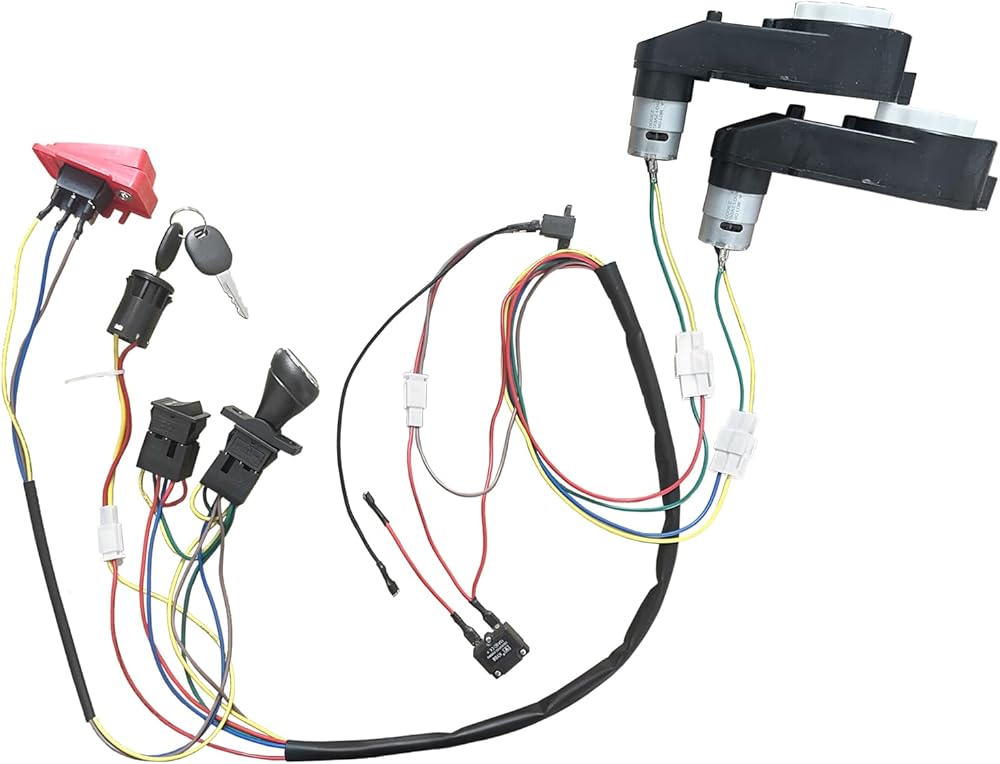

The product includes: one set of wiring harness, all switches, and two motor gearboxes
Model differentiation:
1. If your battery is 6V-12V, please choose the 12V package
2. If your battery is 18V-24V, please choose the 24V package

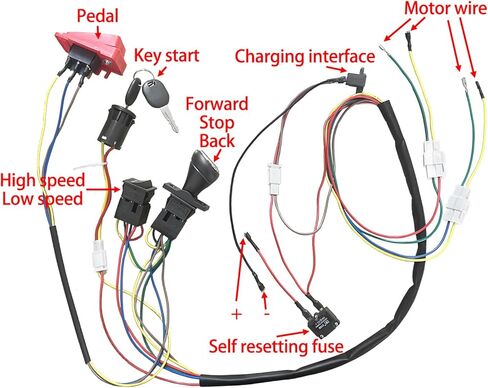

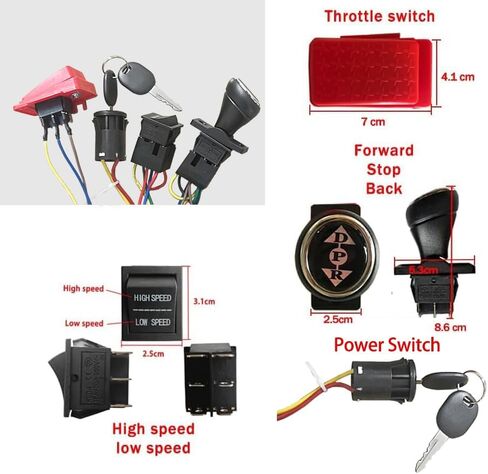

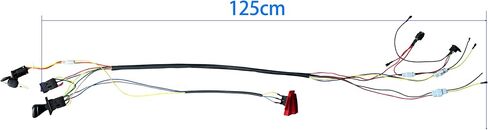

Line switch introduction: complete set of wiring harness, including pedal switch, forward and backward stop switch, high and low speed switch, key start power switch (including 2 keys), charging port (circular charging port), 25A fuse

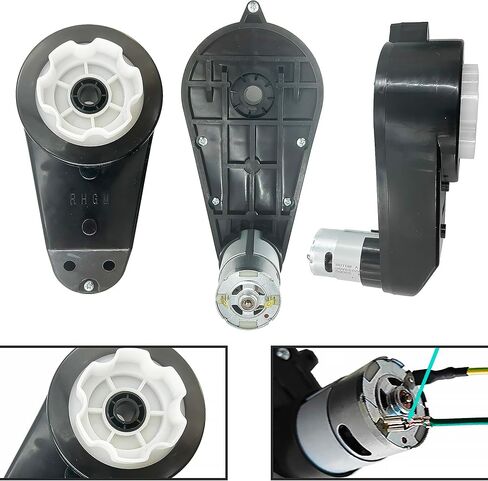

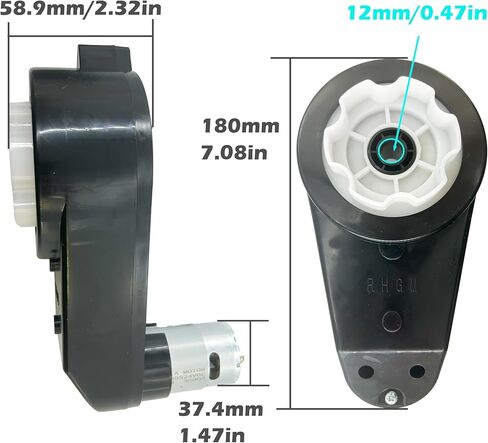

Motor introduction: The 12V motor gearbox has a speed of 40000 RPM. If you choose a 6V power supply, the motor speed will become 11000 RPM; The 24V motor gearbox has a speed of 35000RPM, When the Voltage is 18v, The Gearbox Speed is 20000rpm.When the Voltage is 20v, The Gearbox Speed is 28000rpm, When the Voltage is 24v, The Gearbox Speed is 35000rpm.Motor Gearbox Output Speed Ratio 1:100
be careful:
1. Please pay attention to the battery voltage before purchasing and choose the appropriate package
2. The wiring harness does not have remote control function, and remote control function cannot be added later
3. Install two motors before using the high and low speed switch. If one motor is installed, it will not work at low speeds
4. Please use a reasonable power source to avoid burning the wiring harness
